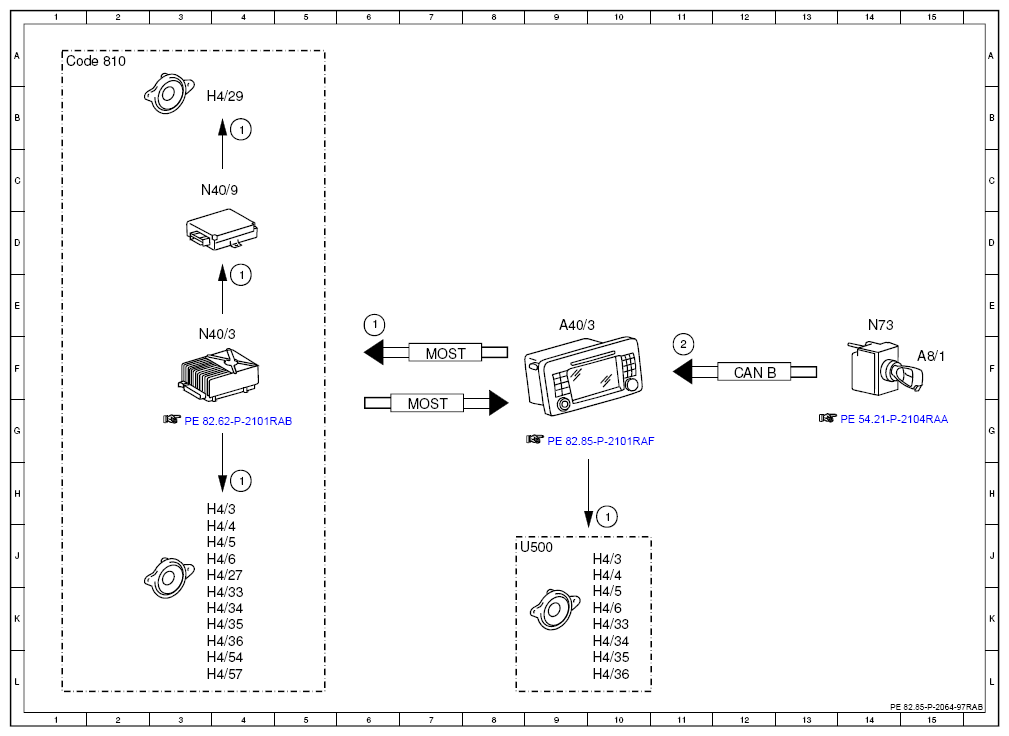

| 1 |
Audio, signal |
4H |
| 1 |
Audio, signal |
10H |
| 1 |
Audio, signal |
4E |
| 1 |
Audio, signal |
4B |
| 1 |
Audio, signal |
6E |
| 2 |
Circuit 15R, status |
11F |
| A40/3 |
COMAND operating, display and control unit |
9E |
| A8/1 |
Transmitter key |
15F |
| CAN B |
Interior CAN |
12F |
| Code 810 |
Sound system |
2A |
| H4/27 |
Center cockpit speaker (centerfill) |
3J |
| H4/29 |
Subwoofer |
3B |
| H4/3 |
Left rear door speaker |
3H |
| H4/3 |
Left rear door speaker |
10J |
| H4/33 |
Left front door tweeter |
3K |
| H4/33 |
Left front door tweeter |
10K |
| H4/34 |
Right front door tweeter |
3K |
| H4/34 |
Right front door tweeter |
10K |
| H4/35 |
Left rear door tweeter |
3K |
| H4/35 |
Left rear door tweeter |
10L |
| H4/36 |
Right rear door tweeter |
3K |
| H4/36 |
Right rear door tweeter |
10L |
| H4/4 |
Right rear door speaker |
3J |
| H4/4 |
Right rear door speaker |
10J |
| H4/5 |
Left front door speaker |
3J |
| H4/5 |
Left front door speaker |
10K |
| H4/54 |
Left rear surround speaker |
3L |
| H4/57 |
Right rear surround speaker |
3L |
| H4/6 |
Right front door speaker |
3J |
| H4/6 |
Right front door speaker |
10K |
| MOST |
Media Oriented System Transport |
7E |
| MOST |
Media Oriented System Transport |
7F |
| N40/3 |
Amplifier for sound system |
3F |
| N40/9 |
Subwoofer amplifier |
3C |
| N73 |
EIS [EZS] control unit |
14E |
| U500 |
Not valid for Sound System |
8J |
