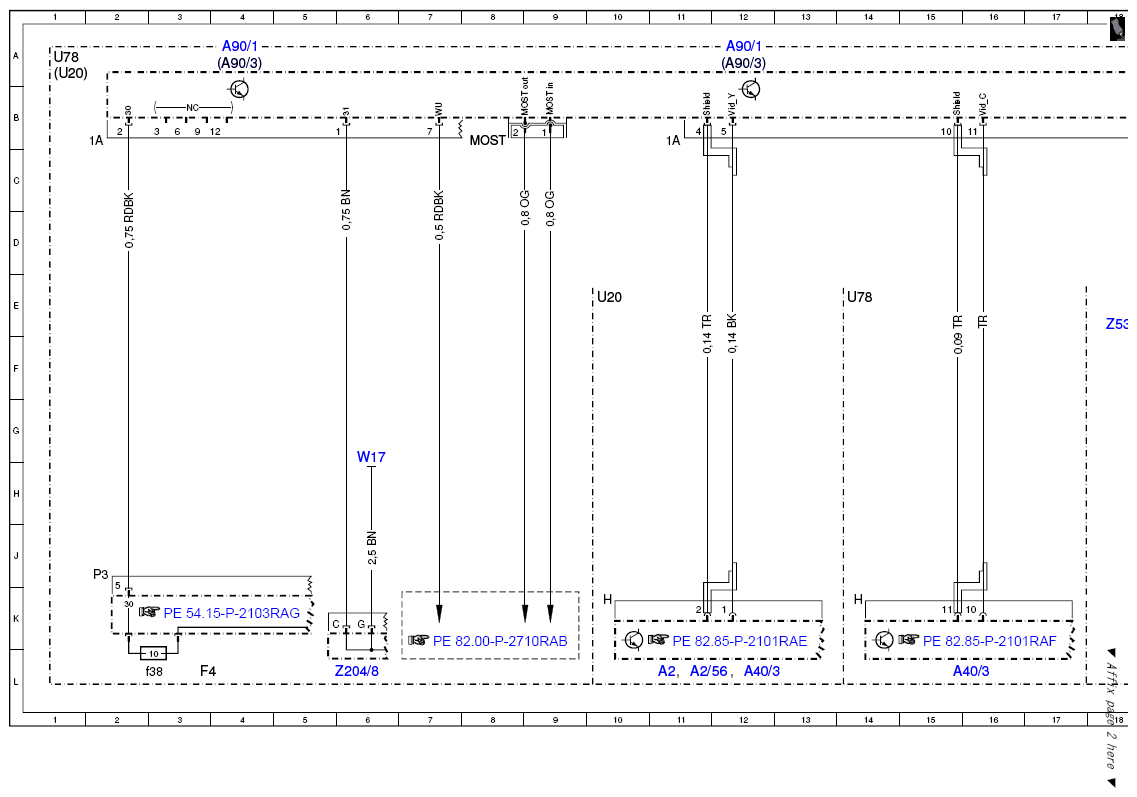

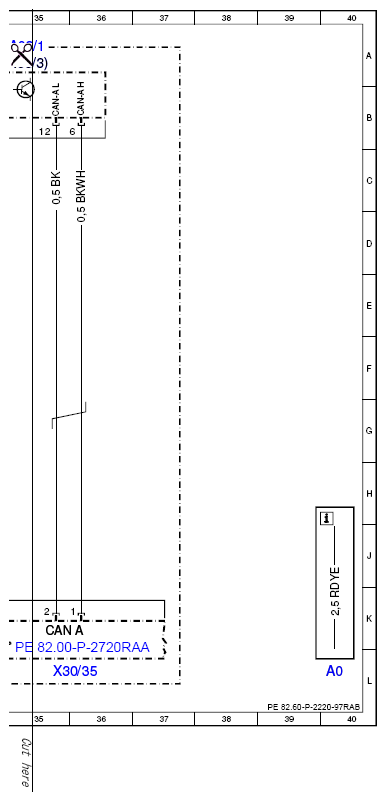

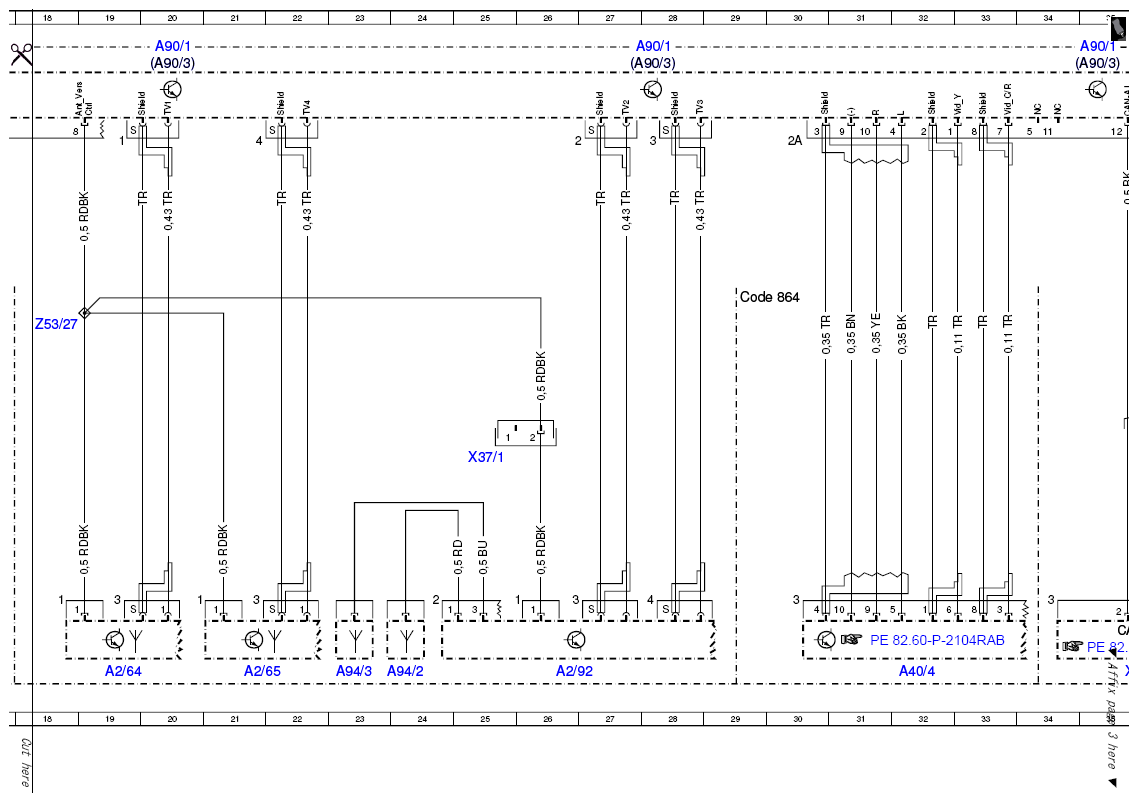

| A0 |
Color code key |
40L |
| A2 |
Radio |
11L |
| A2/56 |
Radio and navigation unit |
11L |
| A2/64 |
Left antenna amplifier module |
19L |
| A2/65 |
Right antenna amplifier module |
21L |
| A2/92 |
TV rear window antenna amplifier |
26L |
| A40/3 |
COMAND operating, display and control unit |
16L |
| A40/3 |
COMAND operating, display and control unit |
12L |
| A40/4 |
DVD player |
32L |
| A90/1 |
TV combination tuner (analog/digital) |
4A |
| A90/1 |
TV combination tuner (analog/digital) |
12A |
| A90/1 |
TV combination tuner (analog/digital) |
20A |
| A90/1 |
TV combination tuner (analog/digital) |
28A |
| A90/1 |
TV combination tuner (analog/digital) |
35A |
| A90/3 |
TV digital tuner |
4A |
| A90/3 |
TV digital tuner |
12A |
| A90/3 |
TV digital tuner |
20A |
| A90/3 |
TV digital tuner |
27A |
| A90/3 |
TV digital tuner |
35A |
| A94/2 |
TV 2 antenna amplifier |
24L |
| A94/3 |
TV 3 antenna amplifier |
23L |
| CAN A |
Telematics CAN |
35K |
| Code 864 |
Rear entertainment system |
29E |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f38 |
Fuse 38 |
3L |
| MOST |
Media Oriented System Transport |
8B |
| U20 |
Valid for all (except USA and Japan) |
10E |
| U20 |
Valid for all (except USA and Japan) |
1A |
| U78 |
Valid for {{Japan}} |
14E |
| U78 |
Valid for {{Japan}} |
1A |
| W17 |
Ground (right rear seat) |
6H |
| X30/35 |
Telematics CAN voltage distributor connector |
35L |
| X37/1 |
Antenna amplifier intermediate connector |
25H |
| Z204/8 |
Circuit 31 left rear seat voltage distributor connector (2) |
6L |
| Z53/27 |
TV amplifier supply |
18E |
