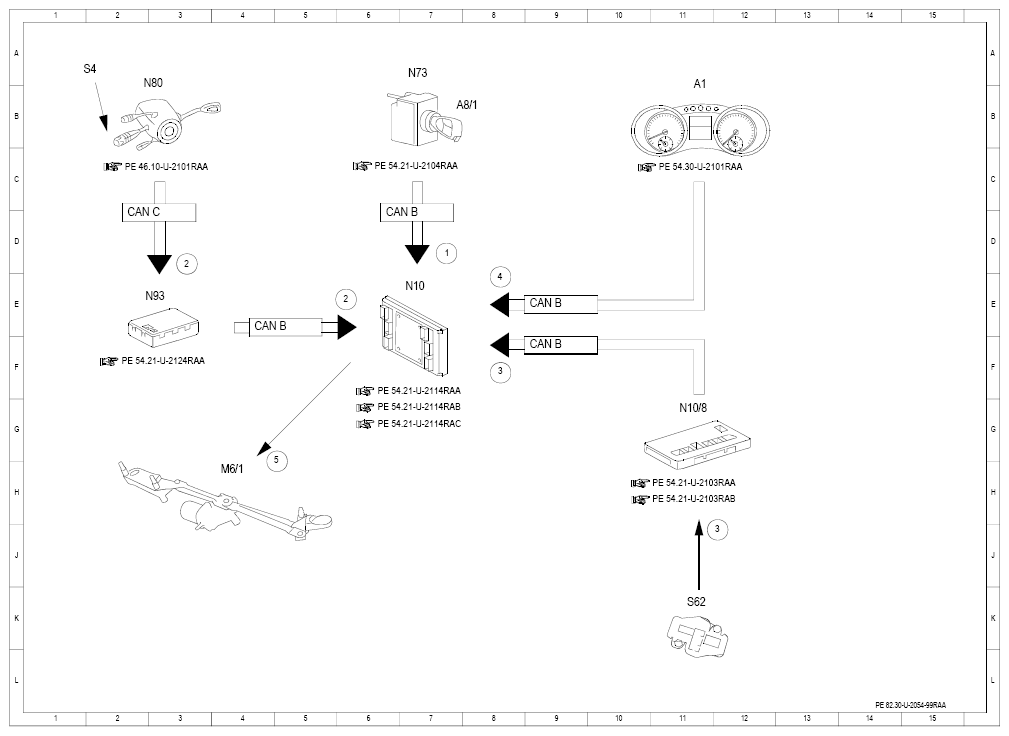

| 1 |
Circuit 15, status |
7 D |
| 2 |
Combination switch, status |
3 D |
| 2 |
Combination switch, status |
6 E |
| 3 |
ATA [EDW] engine hood switch, status |
8 F |
| 3 |
ATA [EDW] engine hood switch, status |
11 J |
| 4 |
Vehicle speed, signal |
8 E |
| 5 |
Wiper motor, actuation |
4 H |
| A1 |
Instrument cluster |
11 B |
| A8/1 |
Transmitter key |
7 B |
| CAN B |
Interior CAN |
4 E |
| CAN B |
Interior CAN |
6 D |
| CAN B |
Interior CAN |
9 F |
| CAN B |
Interior CAN |
9 E |
| CAN C |
Engine compartment CAN |
2 D |
| M6/1 |
Wiper motor |
4 H |
| N10 |
Front SAM control unit |
7 E |
| N10/8 |
Rear SAM control unit |
11 G |
| N73 |
EIS [EZS] control unit |
7 A |
| N80 |
Steering column module |
2 B |
| N93 |
Central gateway control unit |
2 E |
| S4 |
Combination switch |
1 A |
| S62 |
ATA [EDW] hood switch |
11 K |
