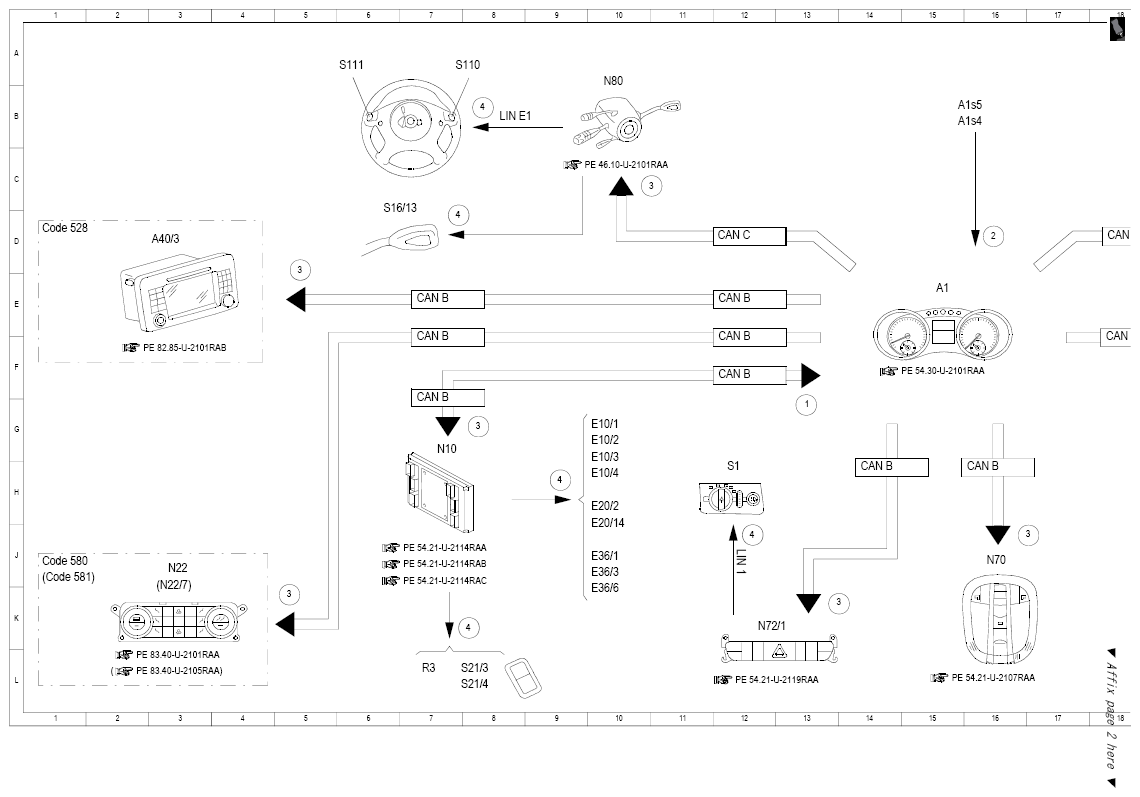

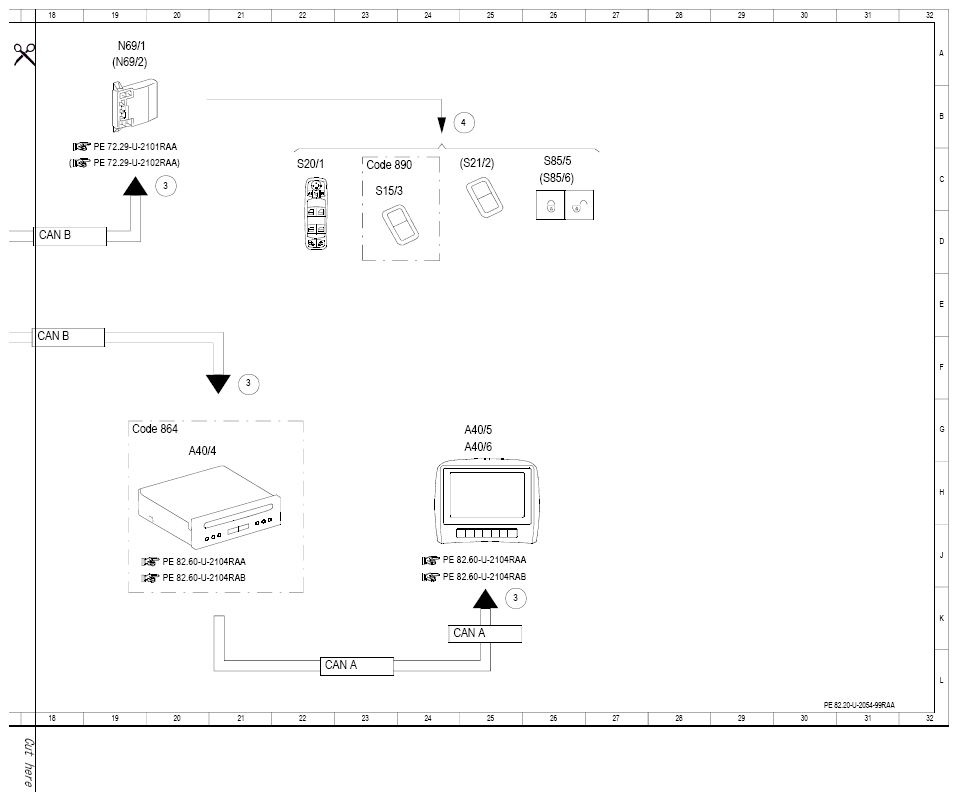

| 1 |
Circuit 58, status |
13 G |
| 2 |
Instrument and switch illumination button, status |
16 D |
| 3 |
Circuit 58d, status |
5 K |
| 3 |
Circuit 58d, status |
5 E |
| 3 |
Circuit 58d, status |
8 G |
| 3 |
Circuit 58d, status |
10 C |
| 3 |
Circuit 58d, status |
13 K |
| 3 |
Circuit 58d, status |
16 J |
| 3 |
Circuit 58d, status |
20 C |
| 3 |
Circuit 58d, status |
21 F |
| 3 |
Circuit 58d, status |
25 K |
| 4 |
Button/symbol illumination, actuation |
7 D |
| 4 |
Button/symbol illumination, actuation |
8 K |
| 4 |
Button/symbol illumination, actuation |
8 B |
| 4 |
Button/symbol illumination, actuation |
9 H |
| 4 |
Button/symbol illumination, actuation |
12 J |
| 4 |
Button/symbol illumination, actuation |
25 B |
| A1 |
Instrument cluster |
15 E |
| A1s4 |
Instrument and controls illumination button, bright |
15 B |
| A1s5 |
Instrument and controls illumination button, dim |
15 B |
| A40/3 |
COMAND operating, display and control unit |
3 D |
| A40/4 |
DVD player |
20 H |
| A40/5 |
Left rear display |
25 G |
| A40/6 |
Right rear display |
25 G |
| CAN A |
Telematics CAN |
22 L |
| CAN A |
Telematics CAN |
24 K |
| CAN B |
Interior CAN |
7 G |
| CAN B |
Interior CAN |
7 F |
| CAN B |
Interior CAN |
7 E |
| CAN B |
Interior CAN |
12 F |
| CAN B |
Interior CAN |
12 F |
| CAN B |
Interior CAN |
12 E |
| CAN B |
Interior CAN |
14 H |
| CAN B |
Interior CAN |
16 H |
| CAN B |
Interior CAN |
18 F |
| CAN B |
Interior CAN |
18 D |
| CAN C |
Engine compartment CAN |
12 D |
| Code 528 |
HIGH Class USA |
1 D |
| Code 580 |
Automatic air conditioning |
1 J |
| Code 581 |
Comfort automatic air conditioning |
1 J |
| Code 864 |
Rear entertainment system |
19 G |
| Code 890 |
Automatic rear-end door |
23 C |
| E10/1 |
Left center air outlet illumination |
10 G |
| E10/2 |
Left air outlet illumination |
10 G |
| E10/3 |
Right air outlet illumination |
10 H |
| E10/4 |
Right center air outlet illumination |
10 H |
| E20/14 |
2nd seat row cup holder illumination |
10 J |
| E20/2 |
Front center console cup holder illumination |
10 H |
| E36/1 |
Front armrest folding compartment illumination |
10 J |
| E36/3 |
Rear center console illumination |
10 J |
| E36/6 |
Rear center console illumination 2 |
10 K |
| LIN 1 |
Instrument panel LIN |
12 J |
| LIN E1 |
Steering LIN |
8 B |
| N10 |
Front SAM control unit |
7 G |
| N22 |
AAC [KLA] control and operating unit |
3 J |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
3 K |
| N69/1 |
Left front door control unit |
19 A |
| N69/2 |
Right front door control unit |
19 A |
| N70 |
Overhead control panel control unit |
16 J |
| N72/1 |
Upper control panel control unit |
12 K |
| N80 |
Steering column module |
10 B |
| R3 |
Front cigar lighter (with ashtray illumination) |
7 L |
| S1 |
Rotary light switch |
12 H |
| S110 |
Left multifunction steering wheel button group |
7 A |
| S111 |
Right multifunction steering wheel button group |
6 A |
| S15/3 |
Rear-end door open/close switch, driver |
23 C |
| S16/13 |
Gear selector switch DIRECT SELECT |
6 D |
| S20/1 |
Power window and outside mirror adjustment switch group, driver |
22 C |
| S21/2 |
Front passenger power window switch |
24 C |
| S21/3 |
Left rear power window switch |
7 L |
| S21/4 |
Right rear power window switch |
7 L |
| S85/5 |
Left interior CL [ZV] switch |
26 C |
| S85/6 |
Right interior CL [ZV] switch |
26 C |
