| 1 |
Circuit 15, status |
14 F |
| 10 |
Circuit 61, status |
8 G |
| 10 |
Circuit 61, status |
13 E |
| 11 |
Wheel speed, signal |
6 D |
| 11 |
Wheel speed, signal |
13 L |
| 11 |
Wheel speed, signal |
18 C |
| 11 |
Wheel speed, signal |
29 C |
| 12 |
Vehicle speed, signal |
15 H |
| 13 |
Daytime running lights, actuation |
22 F |
| 13 |
Daytime running lights, actuation |
25 F |
| 14 |
Rain/light sensor, status |
17 G |
| 14 |
Rain/light sensor, status |
22 J |
| 15 |
Level sensor, status |
6 E |
| 15 |
Level sensor, status |
18 C |
| 15 |
Level sensor, status |
29 C |
| 15 |
Level sensor, status |
29 D |
| 16 |
Synchronization, signal |
19 C |
| 17 |
Headlamp range adjustment motor, actuation |
21 D |
| 17 |
Headlamp range adjustment motor, actuation |
26 D |
| 2 |
Rotary light switch, status |
14 C |
| 2 |
Rotary light switch, status |
16 E |
| 3 |
Low beams, actuation |
19 E |
| 3 |
Low beams, actuation |
29 E |
| 4 |
Bi-xenon lamp with integrated ignition module, actuation |
21 C |
| 4 |
Bi-xenon lamp with integrated ignition module, actuation |
27 C |
| 5 |
Combination switch, status |
7 B |
| 5 |
Combination switch, status |
8 D |
| 5 |
Combination switch, status |
14 E |
| 6 |
High beam solenoid, actuation |
21 E |
| 6 |
High beam solenoid, actuation |
26 E |
| 7 |
High beam indicator lamp, actuation |
15 J |
| 8 |
Daytime running lights, request |
15 H |
| 9 |
Engine speed, signal |
8 F |
| 9 |
Engine speed, signal |
14 E |
| A1 |
Instrument cluster |
15 K |
| A1e3 |
High beam indicator lamp |
16 J |
| A8/1 |
Transmitter key |
13 H |
| B22/10 |
Right rear level sensor |
31 D |
| B22/9 |
Right front level sensor |
31 D |
| B38/2 |
Rain/light sensor |
23 H |
| CAN B |
Interior CAN |
11 F |
| CAN B |
Interior CAN |
12 G |
| CAN B |
Interior CAN |
15 J |
| CAN B |
Interior CAN |
15 D |
| CAN B |
Interior CAN |
18 J |
| CAN C |
Engine compartment CAN |
3 L |
| CAN C |
Engine compartment CAN |
4 F |
| CAN C |
Engine compartment CAN |
4 E |
| CAN C |
Engine compartment CAN |
7 G |
| CAN C |
Engine compartment CAN |
7 D |
| CAN C |
Engine compartment CAN |
11 L |
| CAN C |
Engine compartment CAN |
13 B |
| CAN C |
Engine compartment CAN |
13 A |
| CAN C |
Engine compartment CAN |
21 B |
| CAN C |
Engine compartment CAN |
21 A |
| CAN C |
Engine compartment CAN |
27 B |
| CAN C |
Engine compartment CAN |
27 A |

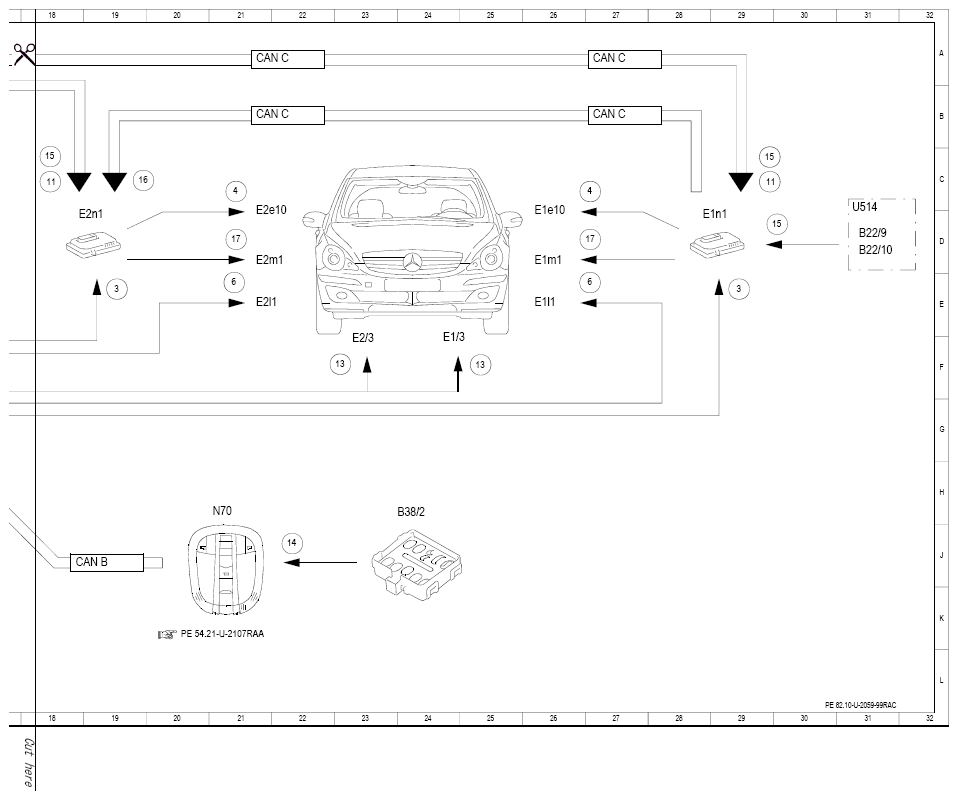

| E1/3 |
Left daytime running lamps headlamp |
24 F |
| E1e10 |
Left bi-xenon lamp with integral ignition module |
26 D |
| E1l1 |
Left high beam solenoid |
26 E |
| E1m1 |
Left headlamp range adjustment motor |
26 D |
| E1n1 |
Xenon headlamp control unit |
28 D |
| E2/3 |
Right daytime running lamps headlamp |
23 F |
| E2e10 |
Right bi-xenon lamp with integral ignition module |
21 D |
| E2l1 |
Right high beam solenoid |
21 E |
| E2m1 |
Right headlamp range adjustment motor |
21 D |
| E2n1 |
Xenon headlamp control unit |
18 D |
| LIN 1 |
Instrument panel LIN |
13 C |

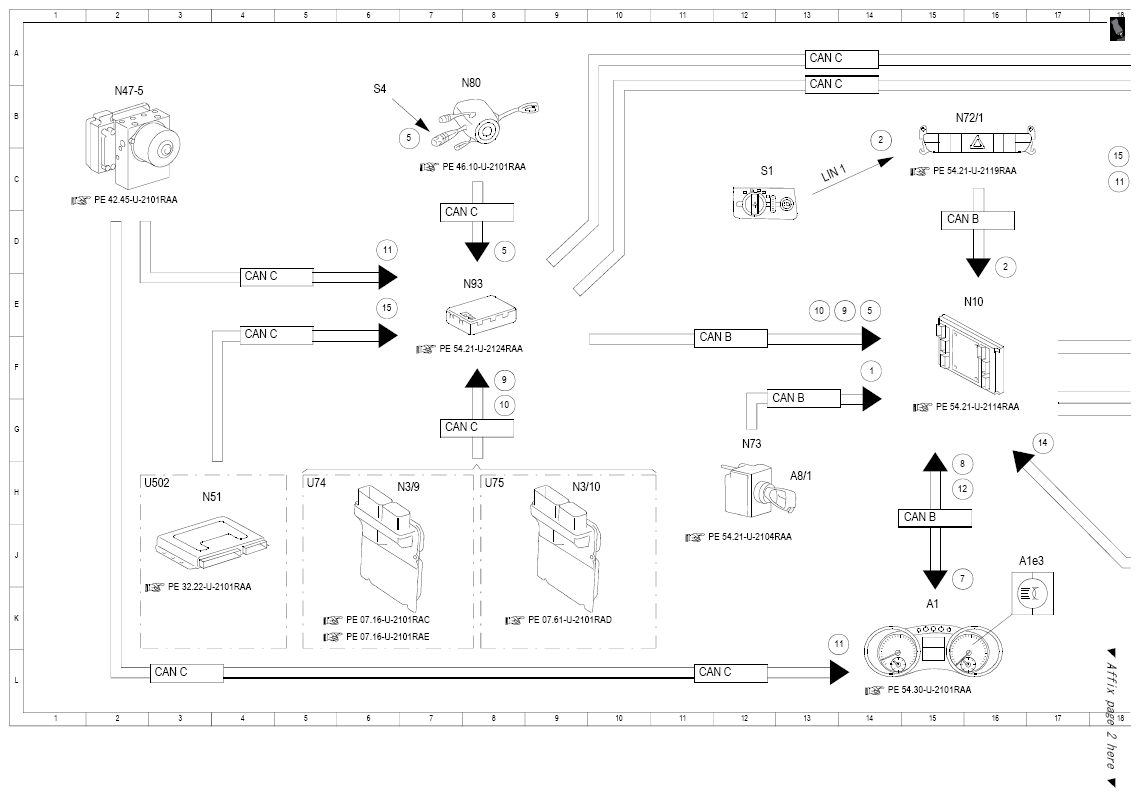

| N10 |
Front SAM control unit |
15 E |
| N3/10 |
ME-SFI [ME] control unit |
9 H |
| N3/9 |
CDI control unit |
6 H |
| N47-5 |
ESP control unit |
2 B |
| N51 |
AIRMATIC with ADS control unit |
3 H |
| N70 |
Overhead control panel control unit |
21 H |
| N72/1 |
Upper control panel control unit |
15 B |
| N73 |
EIS [EZS] control unit |
12 G |
| N80 |
Steering column module |
7 B |
| N93 |
Central gateway control unit |
7 E |
| S1 |
Rotary light switch |
12 C |
| S4 |
Combination switch |
6 B |
| U502 |
Valid for AIRMATIC |
2 H |
| U514 |
Not valid for AIRMATIC |
31 D |
| U74 |
Valid for diesel engines |
5 H |
| U75 |
Valid for gasoline engines |
8 H |
