Removing and installing microphone - AR82.62-P-7700RT
MODEL 251 with CODE (810) Sound system
| Remove/Install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | All models | AH54.00-P-0001-01A | |
| 1 | Switch off ignition and remove the transmitter key from the EIS [EZS] control unit | Press Keyless Go start/stop button repeatedly until the ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m). |
|

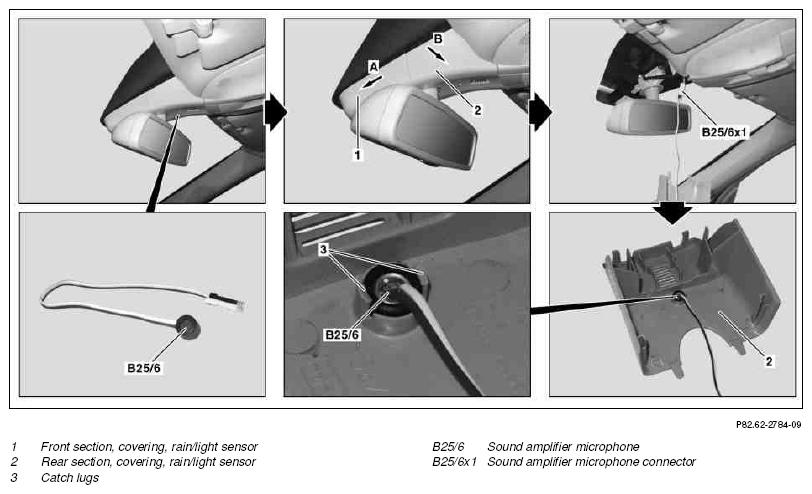

| 2 | Unclip front section, covering, rain/light sensor (1) toward the front (arrow A) | ||
| 3 | Unclip rear section, covering, rain/light sensor (2) downward (arrow B) | ||
| 4 | Disconnect sound amplifier microphone connector (B25/6x1) | ||
| 5 | Remove sound amplifier microphone (B25/6) from the rain/light sensor covering rear section (2) | ||
| 6 | Install in the reverse order | ||
| 7 | Check sound amplifier microphone (B25/6) | AR82.62-P-1110RT |
