Remove/install telescoping nozzle for headlamp cleaning system - AR82.15-P-6100RT
MODELS 251 with CODE (600) Headlamp cleaning system
| Remove/Install | |||
| 1 | Remove front bumper | AR88.20-P-2000RT | |
| 2 | Disconnect washing water hose (2) with clamp | Fig 2 | |

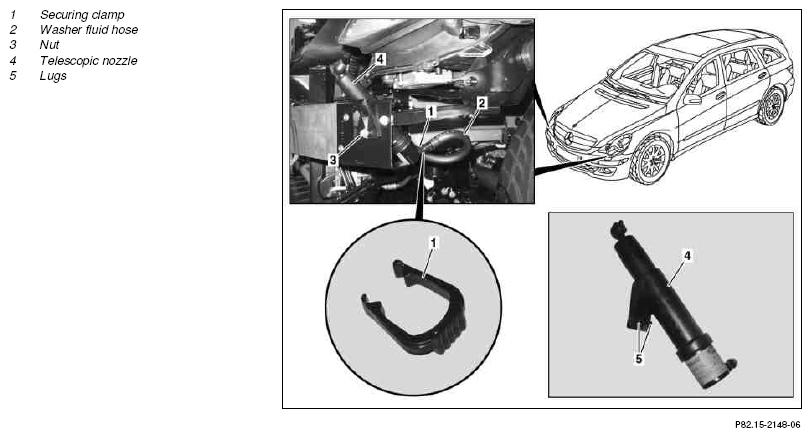

| 3 | Press safety clip (1) and detach washer fluid hose (2) from telescopic nozzle (4) | ||
| 4 | Loosen nut (3) | ||
| 5 | Remove telescopic nozzle (4) | ||
| 6 | Install in the reverse order | ||
| 7 | Check headlamp cleaning system for proper function | ||
| Windshield wipers, windshield washer system and headlamp cleaning system - function check | AP82.30-P-8252RT | ||
| 8 | Check windshield washer system - fluid level, correct if necessary | ||
| Windshield washer system - inspect fluid level, adjust to correct level | AP82.35-P-8210RT |
