Remove/install subwoofer amplifier - AR82.62-P-7722RT
MODEL 251 as of model year 09 with CODE (810) Sound system
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Open liftgate | ||
| 2 | Fold over 3rd seat row | ||

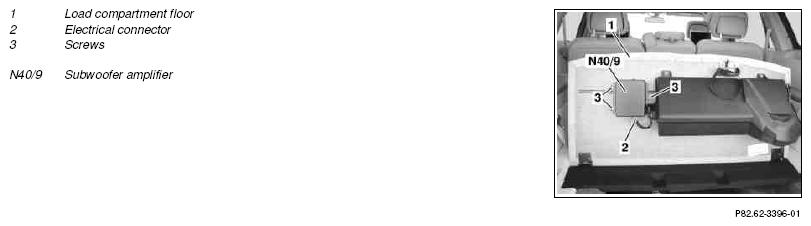

| 3 | Open load compartment floor (1) and fold over | ||
| 4 | Disconnect electrical connector (2) | ||
| 5 | Remove screws/bolts (3) and remove subwoofer amplifier (N40/9) | ||
| 6 | Install in the reverse order |
