Remove/install fog lamp bulb - AR82.10-P-1825RT

MODELS 251

Shown on front fog lamp on left side of vehicle

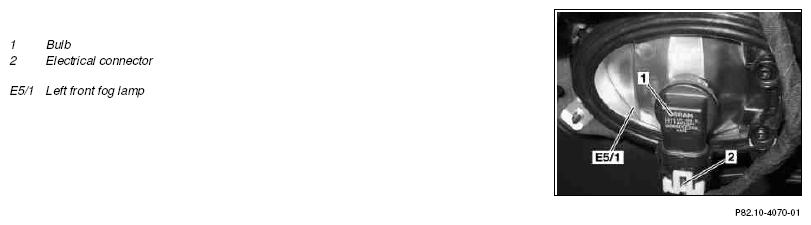

Fig 1: Identifying Fog Lamp Bulb Remove/Install Components - Shown On Left Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

Shown on front fog lamp on right side of vehicle

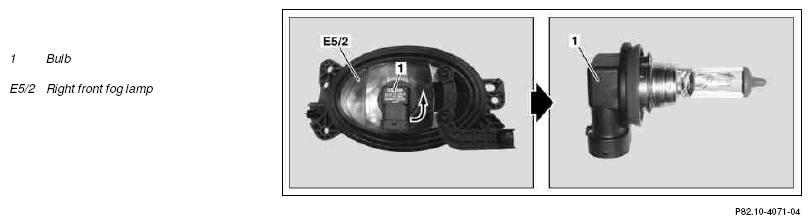

Fig 2: Identifying Fog Lamp Bulb Remove/Install Components - Shown On Right Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Switch off ignition and remove transmitter key from EIS control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until the ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m). Ensure that the light is switched off. The light switch has to be in position "0".
2.1	Remove right front fog lamp (E5/2)	Only on right side	AR82.10-P-5103RT
3	Remove bulb (1)	Do not directly hold the bulb (1) with fingers, as fingerprints can bake in and leave behind opaqueness on the bulb (1). Use a soft, lint-free cloth. On the right side, the bulb is removed from the removed front fog lamp. On the left side, the bulb is removed from the installed front fog lamp. To release the bulb (1), turn it counterclockwise (arrow).
4.1	Disconnect electrical connector (2) from bulb (1)	Only on left side.
5	Install in the reverse order
