Check tires for damage and crack formations - AP40.10-P-4051Z

MODEL 123, 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 201, 202, 203, 208, 209, 210, 211, 215, 216, 219, 220, 221, 230, 240, 245 (except 245.286), 251, 414

Fig 1: Identifying Tires Damage And Crack

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Tires Damage And Crack

Courtesy of MERCEDES-BENZ USA

Fig 3: Wheel And Tire Rotation Pattern

Courtesy of MERCEDES-BENZ USA

Shoulder wear on front tire

Center wear on rear tire

Interchange wheel-and-tire assemblies (vehicles without mixed tires)

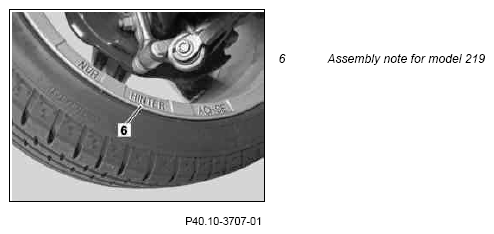

Fig 4: Identifying Assembly Note On Wheel

Courtesy of MERCEDES-BENZ USA

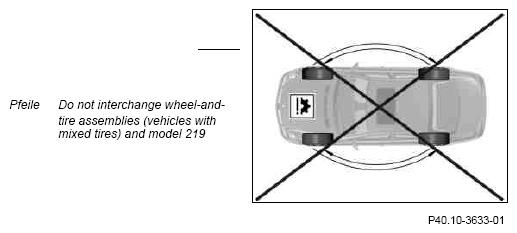

Fig 5: Caution - Do Not Interchange Wheel And Tire Assemblies

Courtesy of MERCEDES-BENZ USA

	Check
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Information on tires/rims		AH40.10-P-9411-01A
1	Hoist vehicle with lifting platform until wheels are free	MODEL 123, 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 201, 202, 203, 208, 209, 210, 211, 215, 216, 219, 220, 221, 230, 240, 245 (except 245.286), 251, 414
		MODEL 163	AR00.60-P-1000GH
		MODEL 164	AR00.60-P-1000GZ
		MODEL 169 MODEL 245 (except 245.286)	AR00.60-P-1000AK
		MODEL 171	AR00.60-P-1000V
		MODEL 203, 209	AR00.60-P-1000P
		MODEL 211	AR00.60-P-1000T
		MODEL 216, 221	AR00.60-P-1000SX
		MODEL 219	AR00.60-P-1000TX
		MODEL 251	AR00.60-P-1000RT
2	Check manufacture date of tires on front and rear axles
	Overview of recommended tires	MODEL 221 with CODE Z07 (Top protection), with CODE Z19 (S 600 Pullman Guard state sedan) If the manufacture date is older than 6 years: ↓ Subject to a separate repair order, replace the tires for safety reasons.	GF40.10-P-1008O
3	Check tires on front and rear axle	Check tread as well as outer and inner sidewalls on all tires for signs of damage such as cuts, punctures, cracks, breakouts, separation and ingressed foreign matter. If damage is present: ↓ Replace tires subject to separate repair order.
4	Assess wear pattern and tread depth of tires on front and rear axle		AP40.10-P-4052B
		Only when the acceptance inspection item as per the "Acceptance inspection test record for service on vehicle" was not conducted. In event of unusual wear pattern: ↓ Determine cause and, where necessary, repair subject to separate repair order. At the latest when reaching the minimum tread depth: ↓ Replace tires subject to separate repair order.
	Measure
5	Measure tread depth of tires on front and rear axle, and note measurement values on maintenance sheet	Only where a tread depth measurement is required as part of the service according to the service sheet.
	Notes on measuring tire tread depth		AH40.10-P-0006-01T
		For safety reasons, before reaching the minimum tread depth, Conventional summer tires with approx. 3 mm tread depth, PAX system summer tires with 3 mm tread depth, and Winter tires with approx. 4 mm tread depth has to be replaced. The main tread along the entire circumference must have a tread depth of at least 1.6 mm. Measure depth of tread at point of greatest wear. Conduct measurement on outside, inside and on the center of the main tread in the tread grooves with tread wear indicator (TWI). The stated tread depths are valid in the Federal Republic of Germany, differently phrased country-specific regulations must be observed accordingly.
		Brake pad test gauge At the latest when reaching the minimum tread depth: ↓ Replace tires subject to separate repair order.	Fig 6
	findings
6	Interchange wheel-and-tire assemblies on front and rear axles	If necessary, subject to separate repair order and only for vehicles without mixed tires. MODEL 219 Observe assembly note (6)! With identical tire dimensions the disk wheels on the front and rear axle also have different wheel offsets. The wheel-and-tire assemblies may therefore not be exchanged axlewise!  Otherwise the vehicle and wheel and tire assemblies may be damaged which in turn can cause injury to people, property and the environment! Maintain running direction of wheel-and-tire assemblies. Otherwise handling characteristics and handling comfort may be impaired and tire wear increased. MODEL 221 with CODE Z07 (Top protection), with CODE Z19 (S 600 Pullman Guard state sedan) It is advisable to interchange the tires after a driving distance of 5000 km.
7	Lower vehicle

Fig 6: Identifying Brake Pad Test Gauge (211 589 06 23 00)

Courtesy of MERCEDES-BENZ USA
