| 1 |
Door rotary tumbler switch, status |
11 G |
| 1 |
Door rotary tumbler switch, status |
19 A |
| 1 |
Door rotary tumbler switch, status |
22 E |
| 10 |
AIRMATIC pressure reduction valve, actuation |
3 D |
| 11 |
Wheel speed, signal |
10 D |
| 12 |
Steering angle, signal |
11 E |
| 12 |
Steering angle, signal |
14 B |
| 13 |
Level control fault, message |
8 H |
| 2 |
Rear-end door locking unit, status |
11 G |
| 2 |
Rear-end door locking unit, status |
19 A |
| 2 |
Rear-end door locking unit, status |
22 D |
| 3 |
Activate system, signal |
11 E |
| 4 |
Level sensor, status |
8 F |
| 5 |
Engine speed, signal |
10 G |
| 6 |
Outside air pressure/temperature, signal |
10 G |
| 7 |
Outside temperature indicator temperature sensor, signal |
12 G |
| 7 |
Outside temperature indicator temperature sensor, signal |
22 G |
| 8 |
AIRMATIC compressor, actuation |
2 D |
| 8 |
AIRMATIC compressor, actuation |
3 E |
| 9 |
Level control valve, actuation |
6 F |
| A1 |
Instrument cluster |
9 J |
| A9/1 |
AIRMATIC compressor unit |
2 C |
| B22/10 |
Right rear level sensor |
5 H |
| B22/7 |
Left rear level sensor |
5 H |
| CAN B |
Interior CAN |
19 B |
| CAN B |
Interior CAN |
21 H |
| CAN B |
Interior CAN |
21 D |
| CAN C |
Engine compartment CAN |
8 G |
| CAN C |
Engine compartment CAN |
9 D |
| CAN C |
Engine compartment CAN |
12 G |
| CAN C |
Engine compartment CAN |
12 F |
| CAN C |
Engine compartment CAN |
12 D |
| CAN C |
Engine compartment CAN |
19 F |
| F58kG |
Air suspension compressor |
2 E |
| N10 |
Front SAM control unit |
17 A |

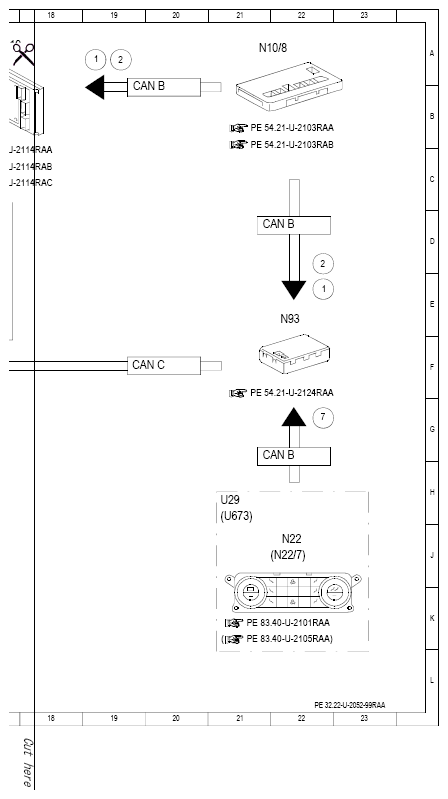

| N10/8 |
Rear SAM control unit |
21 A |
| N22 |
AAC [KLA] control and operating unit |
22 J |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
21 J |
| N3/10 |
ME-SFI [ME] control unit |
15 H |
| N3/9 |
CDI control unit |
12 H |
| N47-5 |
ESP control unit |
9 A |
| N49 |
Steering angle sensor |
15 B |

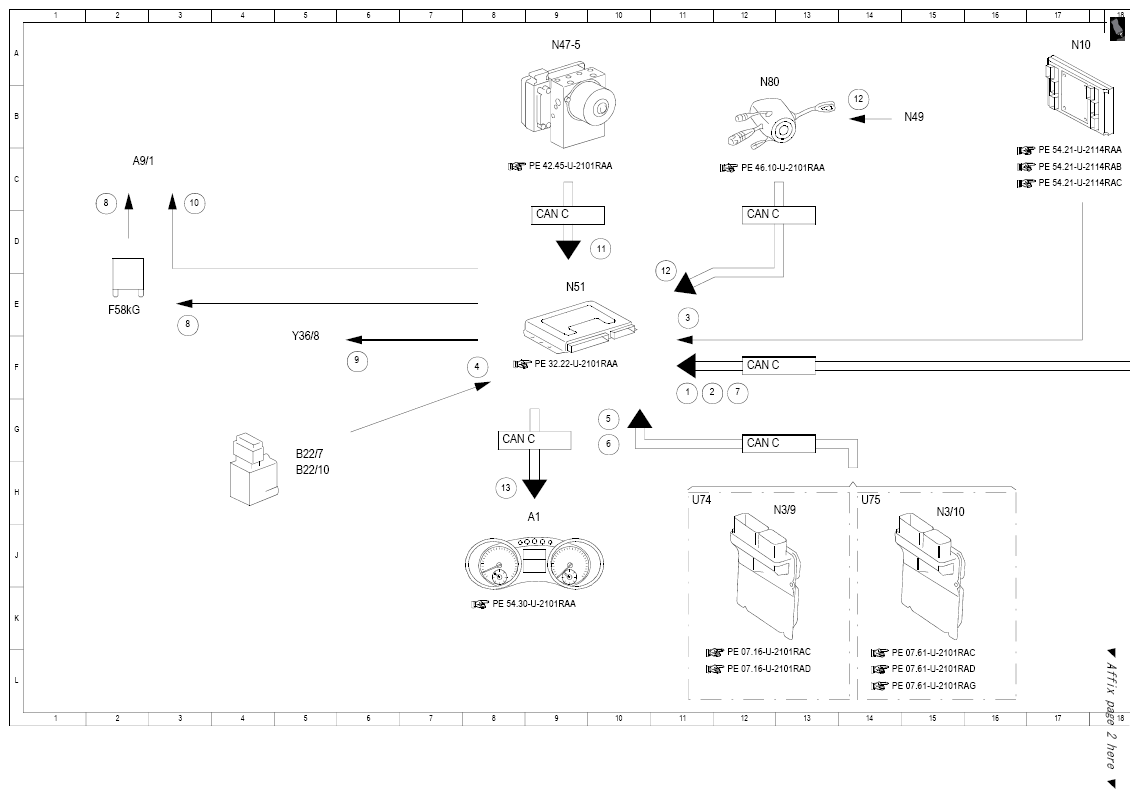

| N51 |
AIRMATIC with ADS control unit |
9 E |
| N80 |
Steering column module |
12 B |
| N93 |
Central gateway control unit |
22 E |
| U29 |
Valid for AAC [KLA] |
21 H |
| U673 |
Valid for comfort AAC [K-KLA] |
21 J |
| U74 |
Valid for diesel engines |
11 H |
| U75 |
Valid for gasoline engines |
14 H |
| Y36/8 |
Electronic rear axle level control valve unit |
5 F |
