Wiring diagram for reversible emergency tensioning retractor - PE91.40-U-2200-99RAA

Code Designation Position
A76 Left front reversible emergency tensioning retractor 2 A
A76 Left front reversible emergency tensioning retractor 13 A
A76/1 Right front reversible emergency tensioning retractor 9 A
A76/1 Right front reversible emergency tensioning retractor 20 A
F4 Load compartment fuse and relay box 6 L
F4 Load compartment fuse and relay box 17 L
F4f24 Fuse 24 10 L
F4f24 Fuse 24 21 L
F4f29 Fuse 29 3 L
F4f29 Fuse 29 14 L
F4f52 Fuse 52 2 L
W17 Ground (right rear seat) 11 E
W17 Ground (right rear seat) 21 E
W17/1 Ground (left rear seat) 1 E
W17/1 Ground (left rear seat) 12 E
X30/19 Passenger-side voltage distributor (CAN C) connector 6 A
X30/19 Passenger-side voltage distributor (CAN C) connector 16 A

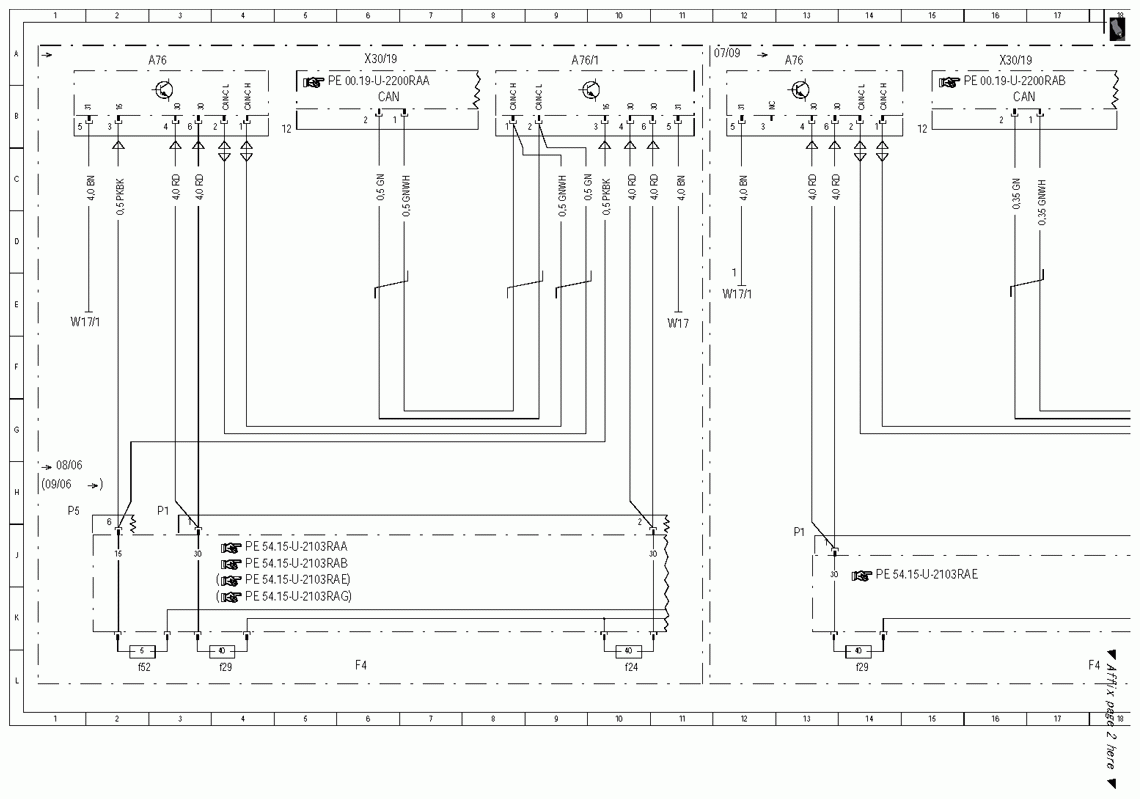

Fig 1: Reversible Emergency Tensioning Retractor Wiring Diagram (1 Of 2)
G10123165Courtesy of MERCEDES-BENZ USA

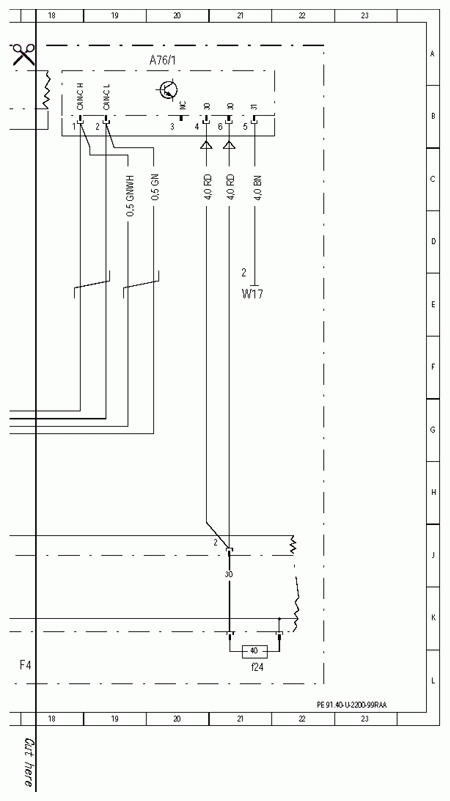

Fig 2: Reversible Emergency Tensioning Retractor Wiring Diagram (2 Of 2)
G10123166Courtesy of MERCEDES-BENZ USA
