Electric wiring diagram of ground wiring - PE00.19-U-2800-99RAD

Code: Designation: Position:
A40/3 COMAND operating, display and control unit 48 A
A40/4 DVD player 52 A
A76 Left front reversible emergency tensioning retractor 23 A
B51/5 Left vent window obstruction sensor strip 11 A
E17/13 Left rear inside door handle illumination 5 A
E17/5 Left rear door entrance/exit lamp 1 A
E20/14 2nd seat row cup holder illumination 21 L
E20/2 Front center console cup holder illumination 19 L
E36/1 Front armrest folding compartment illumination 22 L
M14/8 Left rear door CL [ZV] motor 6 A
M16/42 Rear air conditioning coolant shutoff motor 11 A
N118 Fuel pump control unit 30 A
N123/4 Emergency call system control unit 34 A
N25/7 HS [SIH], seat ventilation and steering wheel heater control unit 8 A
N66/8 Rear audio control unit 40 A
N72/2 RCP [HBF] control unit 24 L
N88 TPM [RDK] control unit 19 A
R13/5 Left 2nd row seat heated cushion 13 A
R13/6 Left 2nd row backrest heated cushion 14 A
R13/7 Right 2nd row seat heated cushion 15 A
R13/8 Right 2nd row backrest heated cushion 16 A
R3 Front cigar lighter (with ashtray illumination) 19 L
S21/3 Left rear power window switch 3 A
S93/3 SOS push-button switch 38 A
S93/3x1 TELE AID push-button switch connector 37 C
S93/6 MB-Info and telediagnosis button group 36 A
S93/6x1 MB-Info and telediagnosis button group connector 36 C
U1018 Valid for gasoline engine 276 28 A
U645 Valid for tire pressure monitor system 17 A
U656 Valid for interior light package 4 A
U656 Valid for interior light package 18 H
W17/1 Ground (left rear seat) 27 E
X122/3 Rear AC connector 11 H
X156 1st seat row illuminated cup holder separation point 19 J
X156/1 2nd seat row illuminated cup holder separation point 20 J
X18/2 Interior/roof connector 37 H
X29/6 Center console intermediate connector 23 H
X29/6 Center console intermediate connector 35 H
X30/35 Telematics CAN voltage distributor connector 43 A
X35/3 Left rear door separation point 2 H
X55/5 Left 2nd row seat adjustment connector block 13 E
X55/6 Right 2nd row seat adjustment connector block 15 E
X58/19 Left 2nd seat row socket 25 A
X58/20 Right 2nd seat row socket 27 A
X8/16 Left rear door printed wiring harness connector 1 E
Z204/6 Circuit 31 left rear seat voltage distributor connector (1) 33 L
Z204/6 Circuit 31 left rear seat voltage distributor connector (1) 41 L
Z204/6 Circuit 31 left rear seat voltage distributor connector (1) 51 L
Z204/9 Circuit 31 left rear seat voltage distributor connector (3) 4 L
Z204/9 Circuit 31 left rear seat voltage distributor connector (3) 14 L
Z53/28 Telematics circuit 31 interior solder point 2 51 H
Z6/12 Left rear door ground connector sleeve 2 G
Z61/4 Front center console circuit 31 connector sleeve 19 G

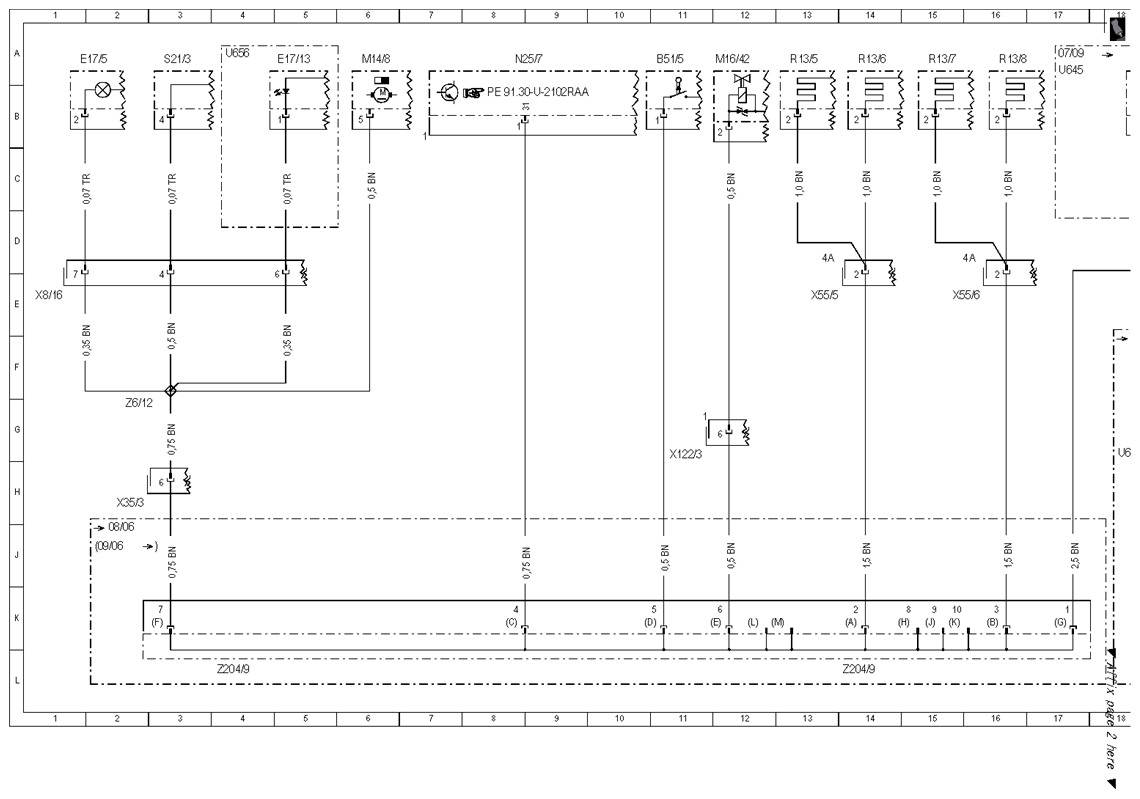

Fig 1: Ground Electric Wiring Diagram (1 Of 8)
G10120365Courtesy of MERCEDES-BENZ USA

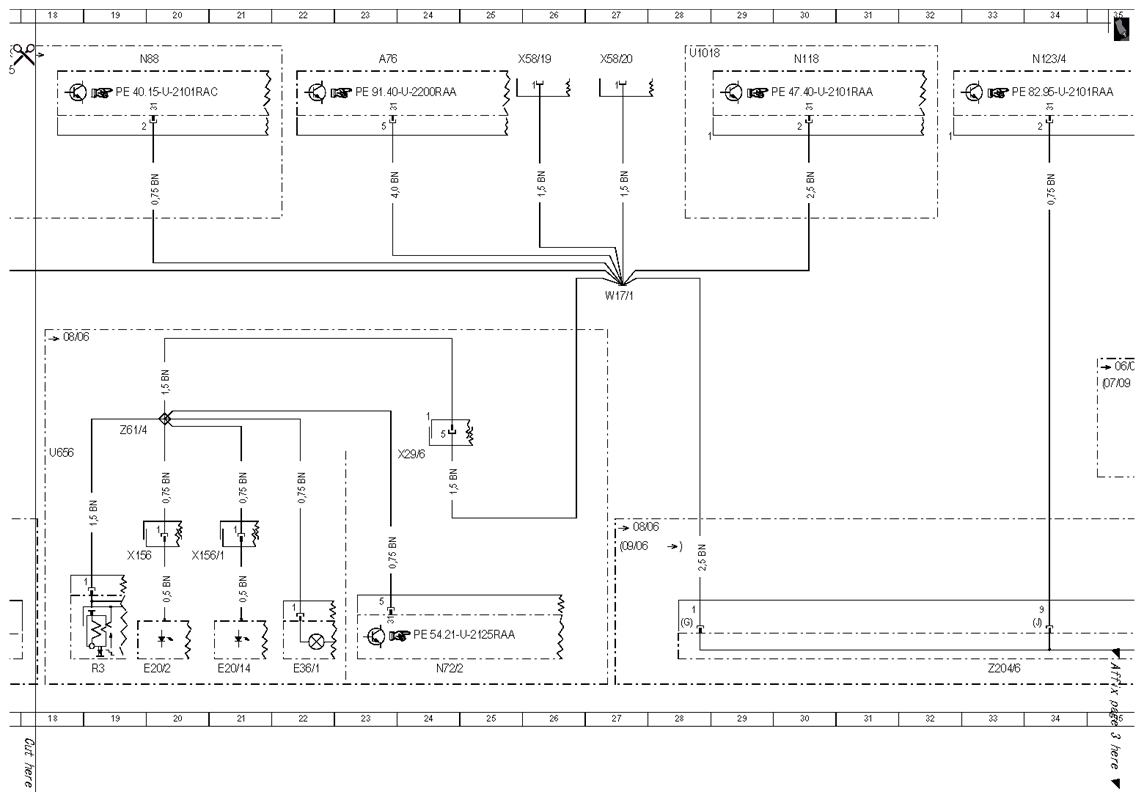

Fig 2: Ground Electric Wiring Diagram (2 Of 8)
G10120366Courtesy of MERCEDES-BENZ USA

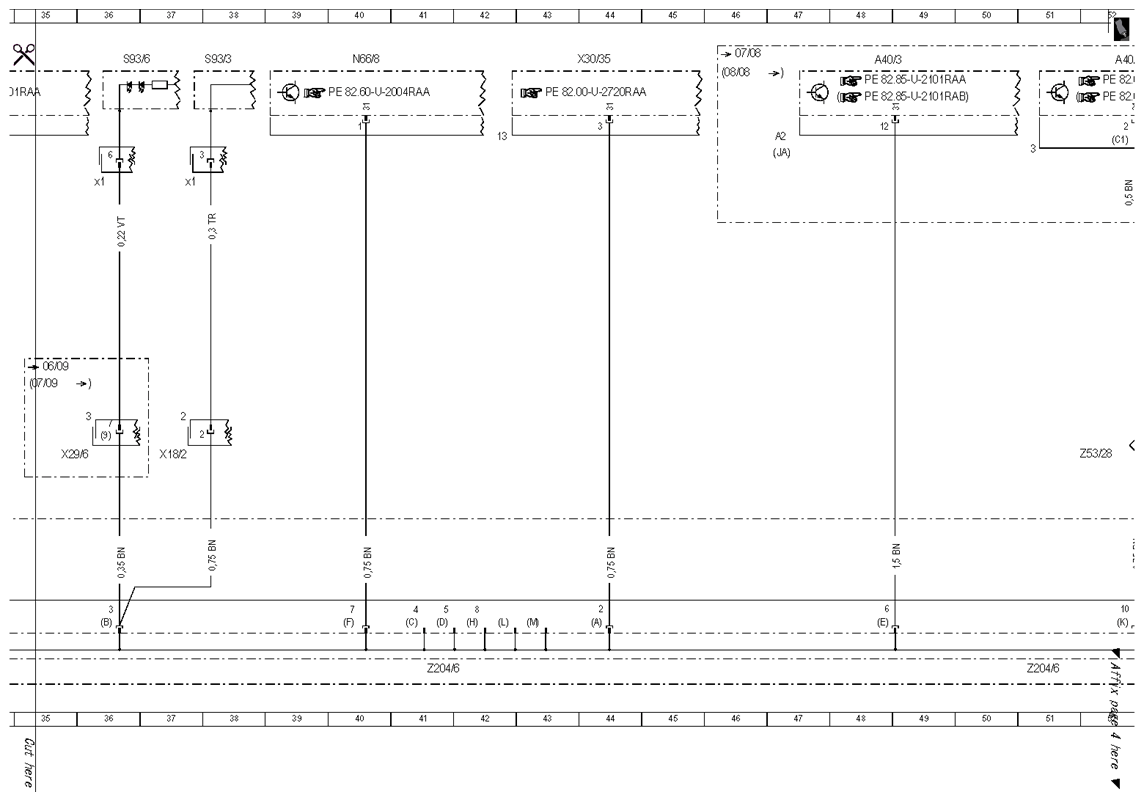

Fig 3: Ground Electric Wiring Diagram (3 Of 8)
G10120367Courtesy of MERCEDES-BENZ USA

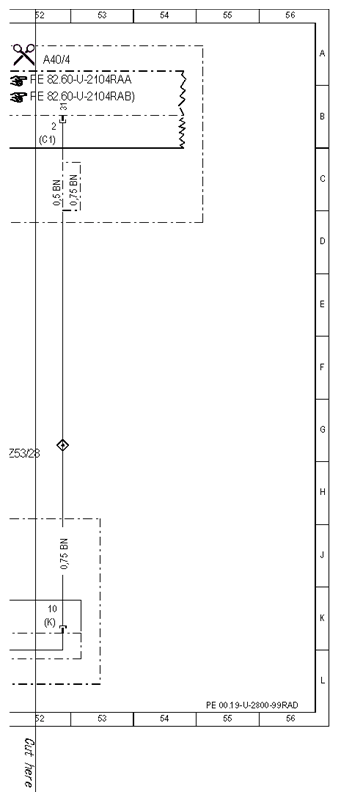

Fig 4: Ground Electric Wiring Diagram (4 Of 8)
G10120368Courtesy of MERCEDES-BENZ USA
