Remove/install radiator grille - AR88.40-P-4001RT

MODEL 251

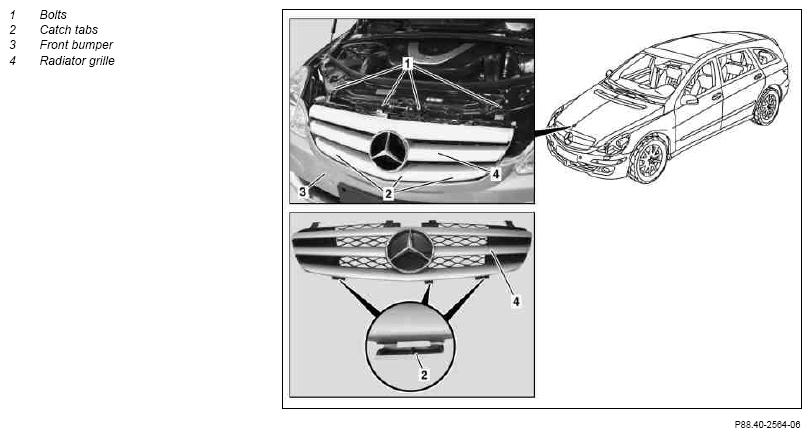

Fig 1: Identifying Radiator Grille Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

14.4.10

Remove cover from radiator crossmember

Operation step 3

	Removing
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Open engine hood		AR88.40-P-1000RT
2	Remove bolts (1)
3	Remove expansion rivets and cover from radiator crossmember	As of model year 2011.
4	Release radiator grille (4)	Push catch lugs (2) upward using a suitable tool.
5	Push lower area of radiator grille (4) toward rear and remove
	Install
6	Install radiator grille (4) in front bumper (3)	Press radiator grille (4) toward front. The catch lugs (2) should catch audibly in radiator grille (4).
7	Install bolts (1)	Adjust gap between engine hood and radiator grille (4) and front bumper (3) and radiator grille (4) and tighten bolts (1). See: ↓
		Gap dimensions on hoods, doors and lids	AR60.00-P-0700-01RT
		Gap between engine hood and front grille/bumper and front grille "Dimension E"	*BE60.00-P-1001-01S
		Feeler gauge	Figure
8	Close engine hood		AR88.40-P-1000RT

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation				Model 251
BE60.00-P-1001-01S	Gap dimension	Lamp unit to engine hood	Dimension "A"	mm	4 (±1)
		Lamp unit to fender	Dimension "B"	mm	4 (±1)
		Lamp unit to bumper	Dimension "C"	mm	4 (±1)
		Engine hood to bumper	Dimension "D"	mm	6 (±1)
		Engine hood to front grille/bumper to front grille	Dimension "E"	mm	7 (±1)
			See picture		Fig 2

Fig 2: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
