Remove/install fog lamp - AR82.10-P-5103RT

MODEL 251

Shown on vehicle with cornering illumination, code 619:

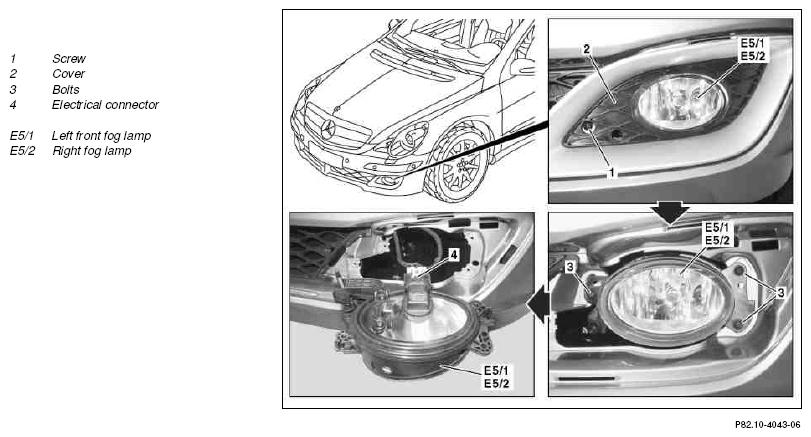

Fig 1: Identifying Fog Lamp Remove/Install Components - Shown On Code 619

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove transmitter key from EIS control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until the ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m). Ensure that the light is switched off. The light switch must be in the "0" position.
2	Remove bolt (1) and remove cover (2)
3	Remove bolt (3)
4	Remove left front fog lamp (E5/1) or right front fog lamp (E5/2) from bumper
5	Disconnect electrical connector (4) and remove left front fog lamp (E5/1) or right front fog lamp (E5/2)
6	Install in the reverse order
7	Check front fog lamp settings, adjust if necessary
	Check headlamp adjustment		AP82.10-P-8260RT
	Adjust or check front fog lights		AP82.10-P-8260RT
