Wiring diagram of CAN bus - interior compartment - PE00.19-U-2300-99RAB

MODEL 251 CAN voltage distributor (X30/7), sheet 2

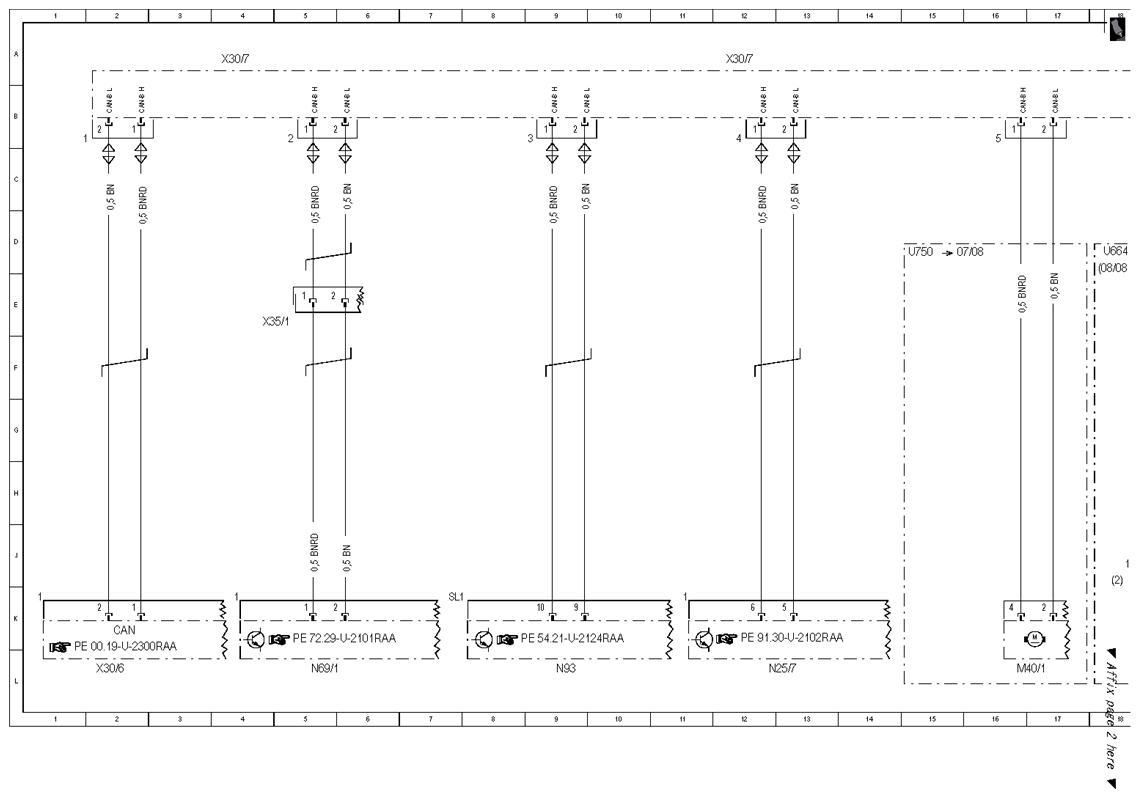

Fig 1: CAN Bus - Engine Wiring Diagram (5 Of 7)
G10120337Courtesy of MERCEDES-BENZ USA

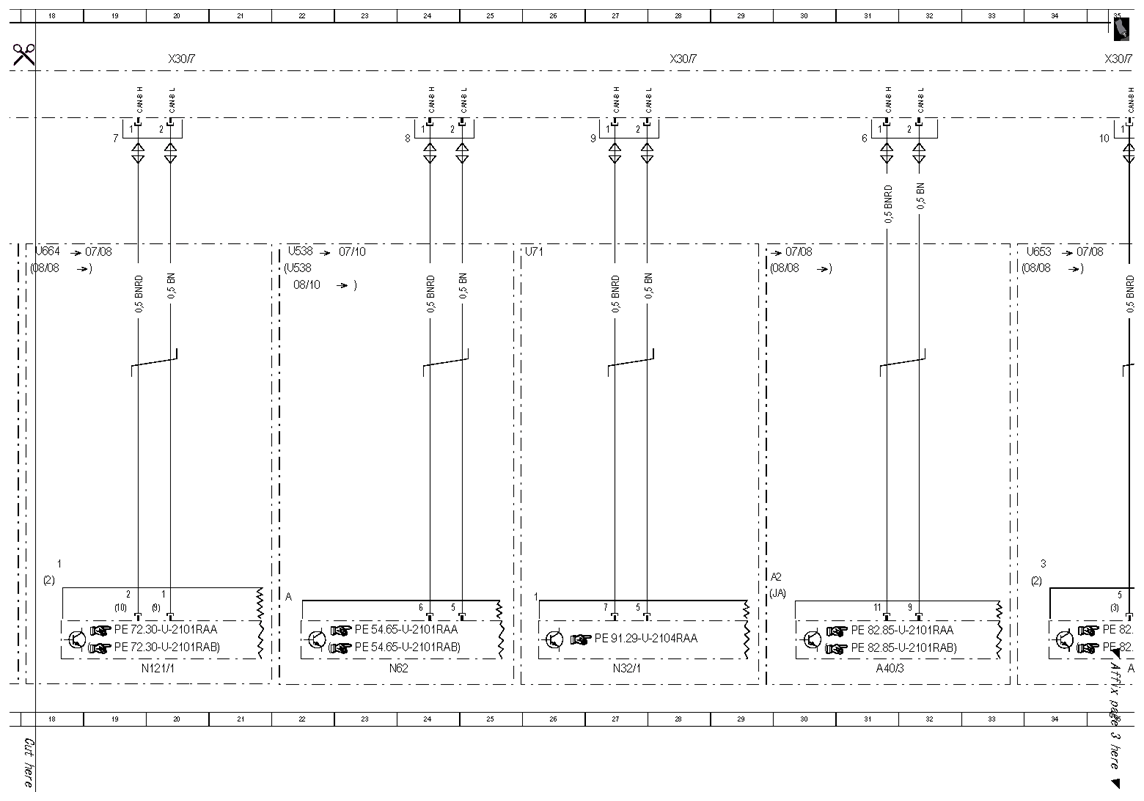

Fig 2: CAN Bus - Engine Wiring Diagram (6 Of 7)
G10120338Courtesy of MERCEDES-BENZ USA

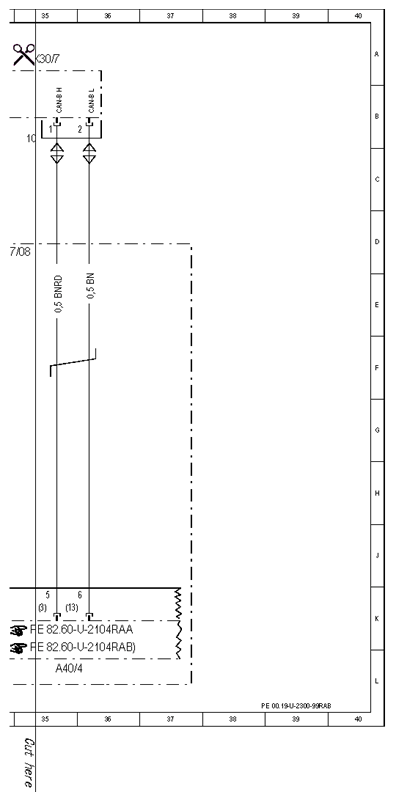

Fig 3: CAN Bus - Engine Wiring Diagram (7 Of 7)
G10120339Courtesy of MERCEDES-BENZ USA
