Remove/install partition wall between wheelhouses - AR62.30-P-2400RT

MODEL 251

Shown on vehicle with engine 113.971

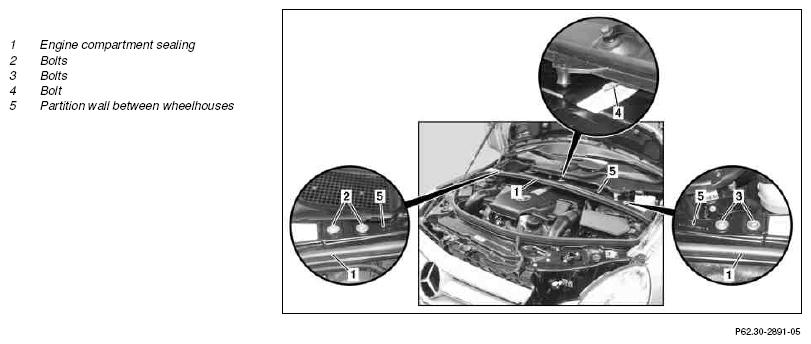

Fig 1: Identifying Partition Wall Between Wheelhouses Remove/Install Components - Shown On Vehicle With Engine 113.971

Courtesy of MERCEDES-BENZ USA

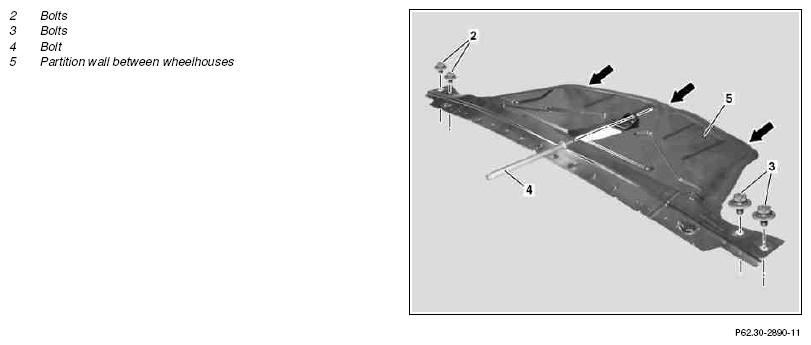

Fig 2: Identifying Partition Wall Between Wheelhouses Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open engine hood and raise to vertical position		AR88.40-P-1000RT
2	Remove engine compartment sealing (1) from partition wall between wheelhouses (5)	Ensure that engine compartment sealing (1) is seated correctly on partition wall.
3	Unscrew screws (2 and 3)		*BA62.30-P-1007-01E
4	Unscrew bolt (4)
5	Pull out partition wall toward front between wheelhouses (5) and remove	Arrest partition wall between wheelhouses (5) into the three clips on the partition wall (arrows).
6	Install in the reverse order

CROSSMEMBER AND FRONT REINFORCEMENT

Number	Designation		Model 251
BA62.30-P-1007-01E	Bolt, for partition wall between wheelhouses on wheelhouses	Nm	23
