Wiring diagram voice control system (VCS) control module - PE82.70-U-2102-99RAA

Code	Designation	Position
A67b1	Hands-free system microphone group	9 L
A67b1	Hands-free system microphone group	12 L
A67b1x1	Hands-free system microphone group connector	8 J
A67b1x1	Hands-free system microphone group connector	11 J
F4	Load compartment fuse and relay box	3 L
F4f20	Fuse 20	2 L
N123/4	Emergency call system control unit	21 L
N41/3	Voice control system (VCS [SBS]) control unit	4 A
N41/3	Voice control system (VCS [SBS]) control unit	12 A
N41/3	Voice control system (VCS [SBS]) control unit	20 A
N41/3	Voice control system (VCS [SBS]) control unit	25 A
W17	Ground (right rear seat)	6 H
X18/2	Interior/roof connector	7 E
X18/2	Interior/roof connector	11 E
X39/70	FFS [RBA} microphone array connector	16 G
Z204/8	Circuit 31 left rear seat voltage distributor connector (2)	6 L

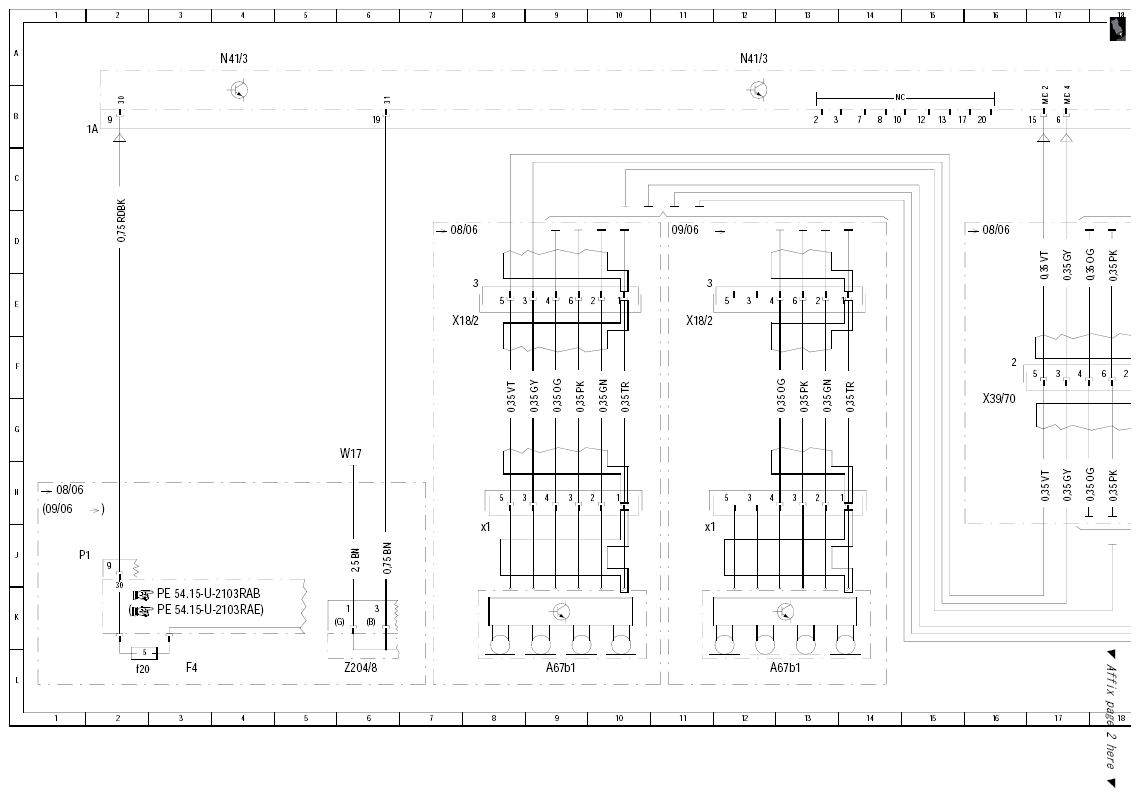

Fig 1: Voice Control System (VCS) Control Module - Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

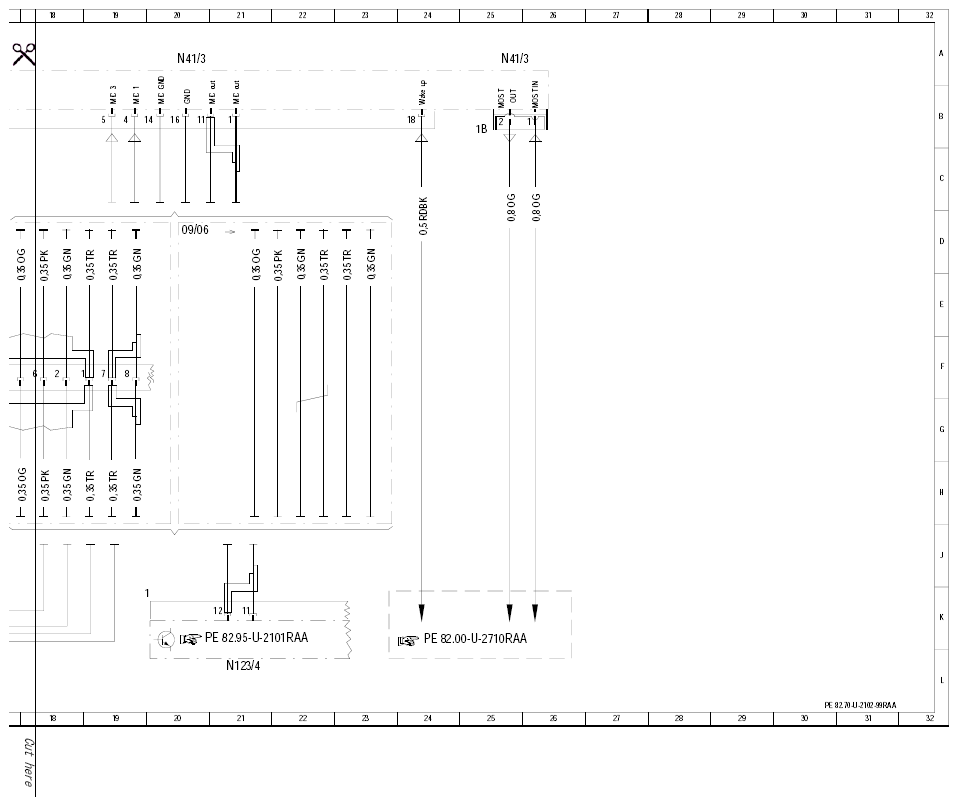

Fig 2: Voice Control System (VCS) Control Module - Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
