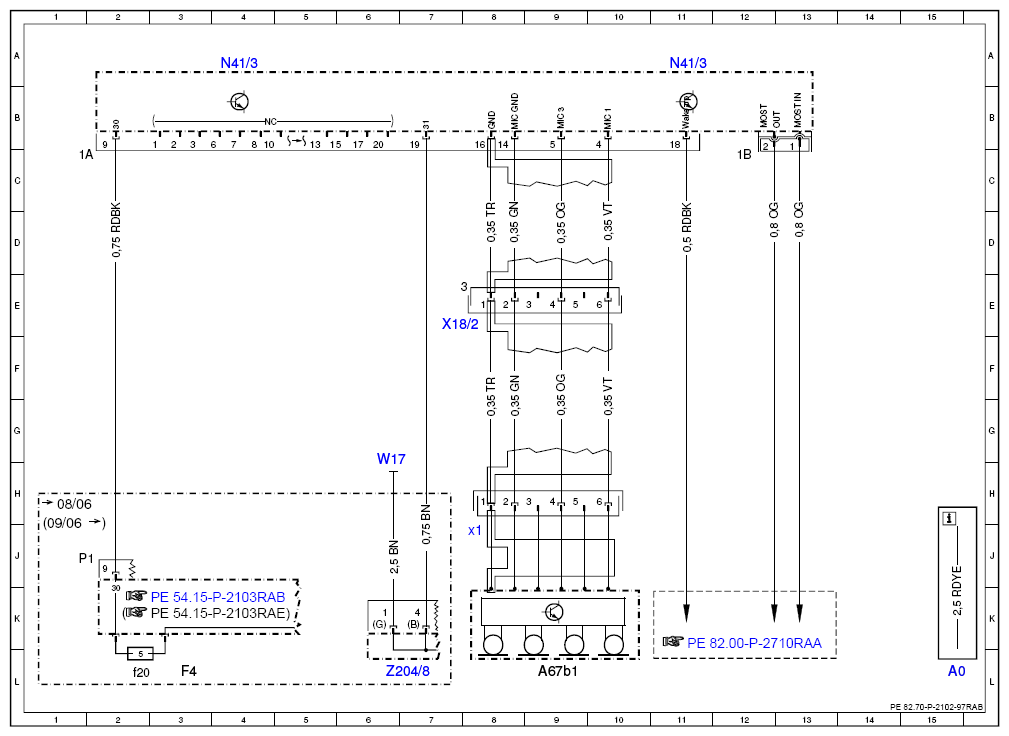

Voice control system (VCS [SBS]) control unit wiring diagram - PE82.70-P-2102-97RAB
| Code | Designation | Position |
|---|---|---|
| A0 | Color code key | 15L |
| A67b1 | Hands-free system microphone group | 9L |
| A67b1x1 | Hands-free system microphone group connector | 8J |
| F4 | Load compartment fuse and relay box | 3L |
| F4f20 | Fuse 20 | 2L |
| N41/3 | Voice control system (VCS [SBS]) control unit | 4A |
| N41/3 | Voice control system (VCS [SBS]) control unit | 11A |
| W17 | Ground (right rear seat) | 6H |
| X18/2 | Interior/roof connector | 7E |
| Z204/8 | Circuit 31 left rear seat voltage distributor connector (2) | 6L |
