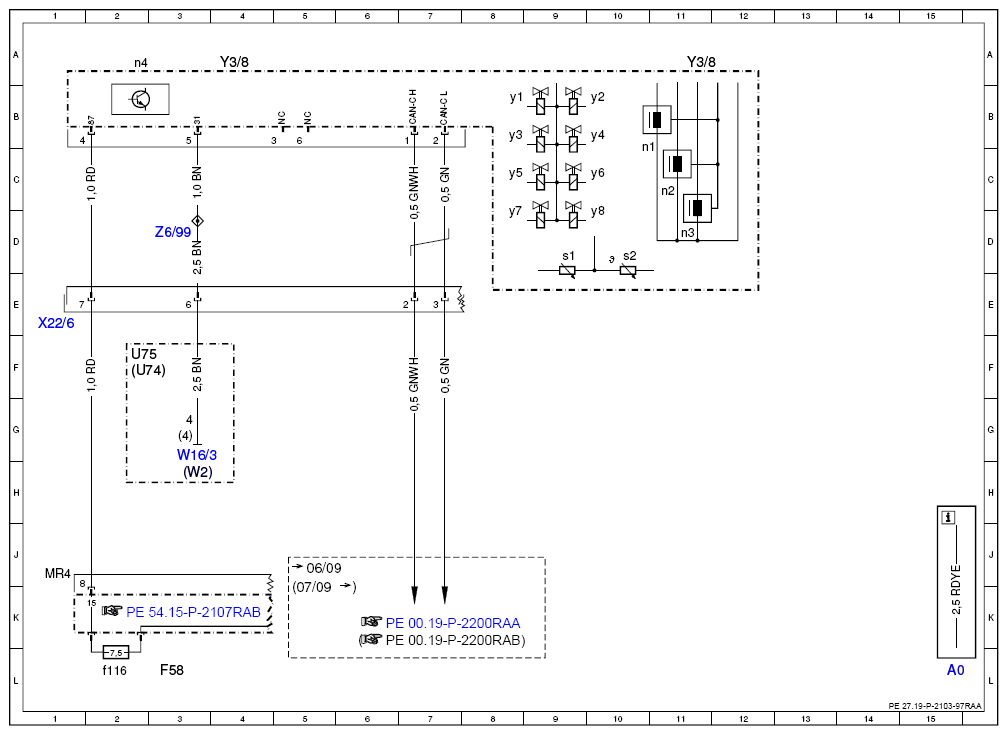

| A0 |
Color code key |
15L |
| F58 |
Engine compartment fuse and relay box |
3L |
| F58f116 |
Fuse 116 |
2L |
| U74 |
Valid for diesel engines |
2F |
| U75 |
Valid for gasoline engines |
2F |
| W16/3 |
Ground (left assembly compartment, power ground) |
3G |
| W2 |
Ground (right front, at lamp unit) |
3H |
| X22/6 |
Automatic transmission/intelligent servo module connector |
1E |
| Y3/8 |
Electric control unit (VGS) |
4A |
| Y3/8 |
Electric control unit (VGS) |
11A |
| Y3/8n1 |
Turbine speed sensor (VGS) |
10C |
| Y3/8n2 |
Internal speed sensor (VGS) |
11C |
| Y3/8n3 |
Output speed sensor (VGS) |
11D |
| Y3/8n4 |
Fully integrated transmission control (VGS) control unit |
2A |
| Y3/8s1 |
Selection range sensor (VGS) |
9D |
| Y3/8s2 |
Transmission oil temperature sensor (VGS) |
10D |
| Y3/8y1 |
Working pressure control solenoid valve (VGS) |
8B |
| Y3/8y2 |
K1 clutch control solenoid valve (VGS) |
10B |
| Y3/8y3 |
K2 clutch control solenoid valve (VGS) |
8B |
| Y3/8y4 |
K3 clutch control solenoid valve (VGS) |
10B |
| Y3/8y5 |
B1 brake control solenoid valve (VGS) |
8C |
| Y3/8y6 |
B2 brake control solenoid valve (VGS) |
10C |
| Y3/8y7 |
B3 brake control solenoid valve (VGS) |
8D |
| Y3/8y8 |
Torque converter lockup clutch control solenoid valve (VGS) |
10D |
| Z6/99 |
Transmission circuit 31 connector sleeve |
3D |
