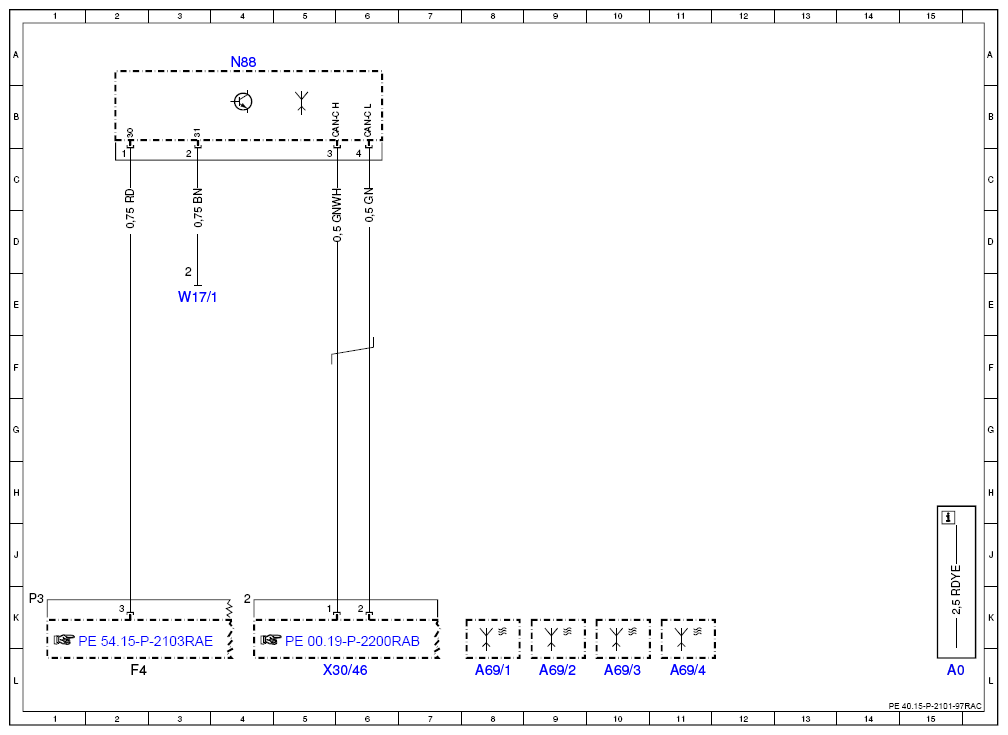

Wiring diagram for tire pressure monitor control unit - PE40.15-P-2101-97RAC
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A69/1 | Left front TPM [RDK] wheel sensor | 8L |
| A69/2 | Right front TPM [RDK] wheel sensor | 9L |
| A69/3 | Left rear TPM [RDK] wheel sensor | 10L |
| A69/4 | Right rear TPM [RDK] wheel sensor | 11L |
| F4 | Load compartment fuse and relay box | 2L |
| N88 | TPM [RDK] control unit | 4A |
| W17/1 | Ground (left rear seat) | 3E |
| X30/46 | Rear end CAN C potential distributor connector | 5L |
