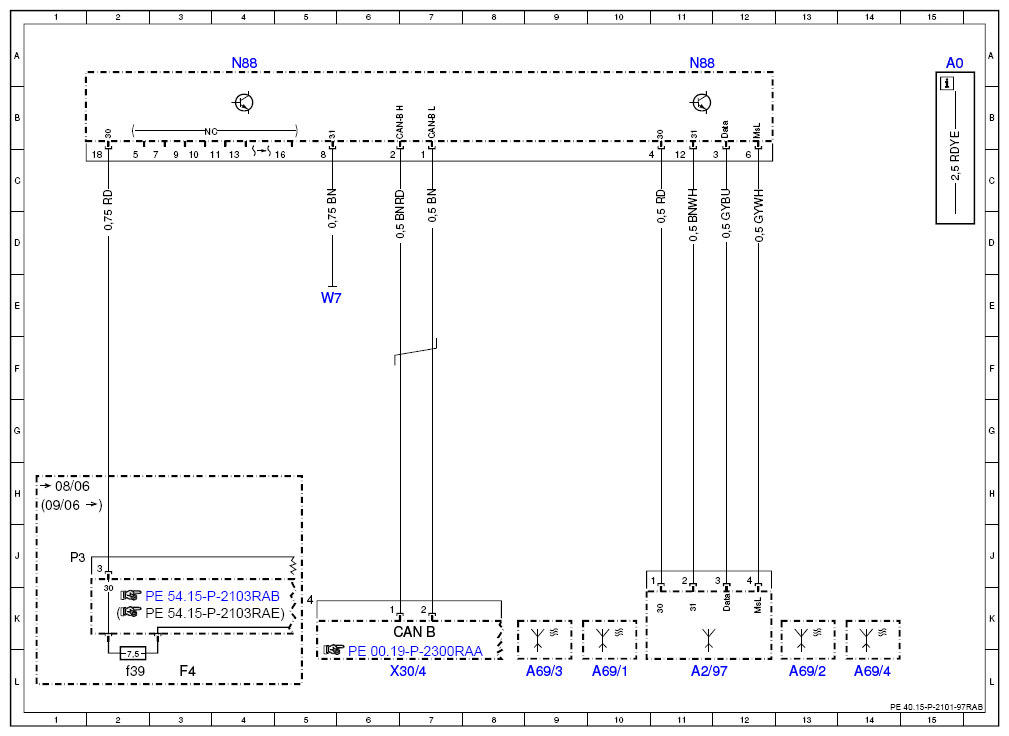

Wiring diagram for tire pressure monitor control unit - PE40.15-P-2101-97RAB
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15A |
| A2/97 | Central TPM [RDK] antenna | 11L |
| A69/1 | Left front TPM [RDK] wheel sensor | 10L |
| A69/2 | Right front TPM [RDK] wheel sensor | 13L |
| A69/3 | Left rear TPM [RDK] wheel sensor | 9L |
| A69/4 | Right rear TPM [RDK] wheel sensor | 14L |
| CAN B | Interior CAN | 7K |
| F4 | Load compartment fuse and relay box | 3L |
| F4f39 | Fuse 39 | 2L |
| N88 | TPM [RDK] control unit | 4A |
| N88 | TPM [RDK] control unit | 11A |
| W7 | Ground (right wheelhouse in luggage compartment) | 5E |
| X30/4 | Right voltage distributor (CAN) connector | 7L |
