| A0 |
Color code key |
23L |
| A2/46 |
Left rear TPM [RDK] wheel antenna |
9L |

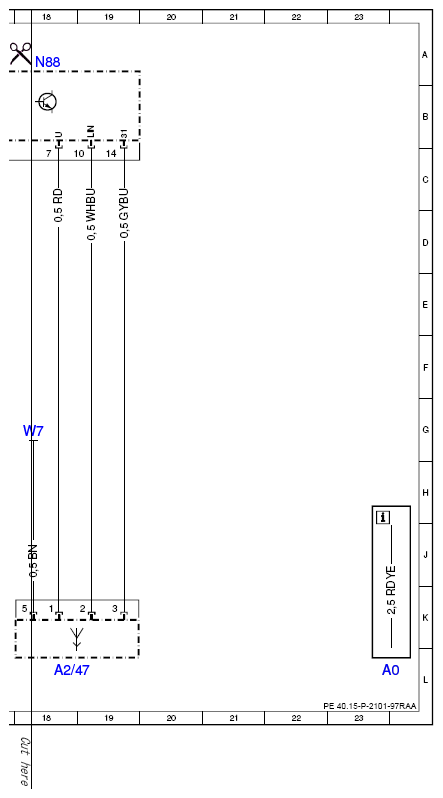

| A2/47 |
Right rear TPM [RDK] wheel antenna |
18L |
| A2/97 |
Central TPM [RDK] antenna |
14L |
| A69/1 |
Left front TPM [RDK] wheel sensor |
12L |
| A69/2 |
Right front TPM [RDK] wheel sensor |
16L |
| A69/3 |
Left rear TPM [RDK] wheel sensor |
11L |
| A69/4 |
Right rear TPM [RDK] wheel sensor |
17L |
| CAN B |
Interior CAN |
7K |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f39 |
Fuse 39 |
2L |

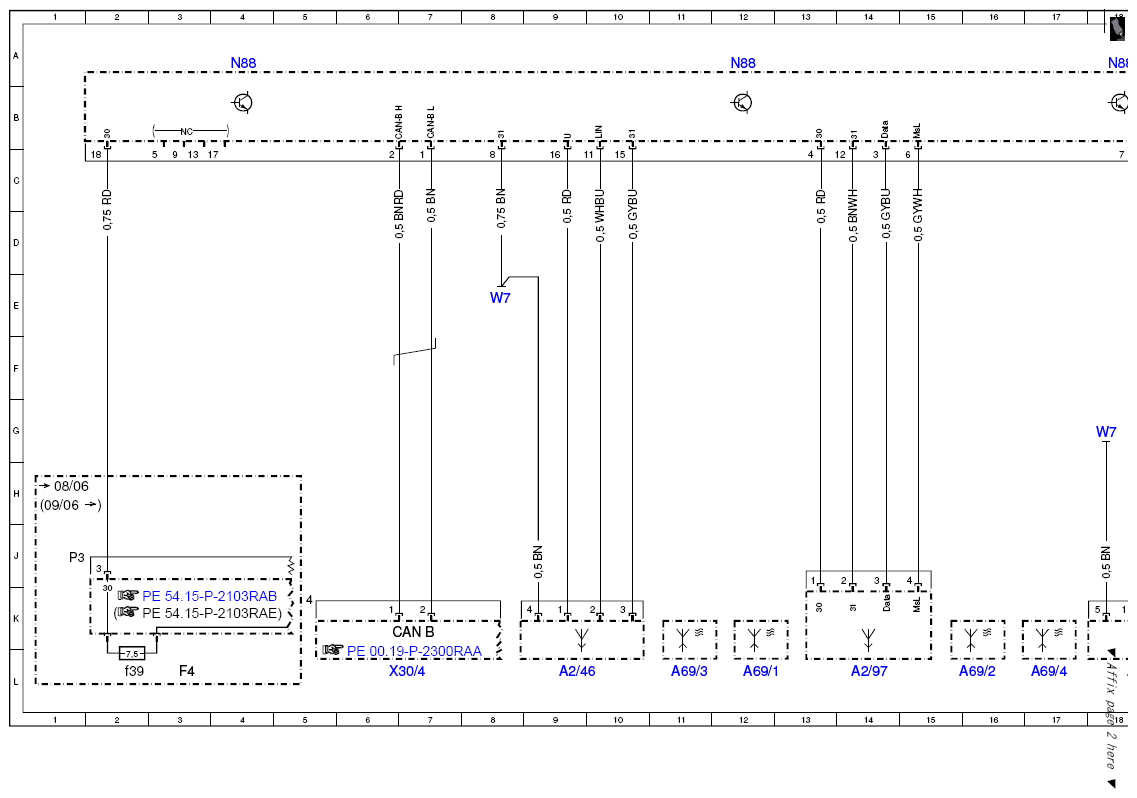

| N88 |
TPM [RDK] control unit |
4A |
| N88 |
TPM [RDK] control unit |
12A |
| N88 |
TPM [RDK] control unit |
18A |
| W7 |
Ground (right wheelhouse in luggage compartment) |
8E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
18G |
| X30/4 |
Right voltage distributor (CAN) connector |
7L |
