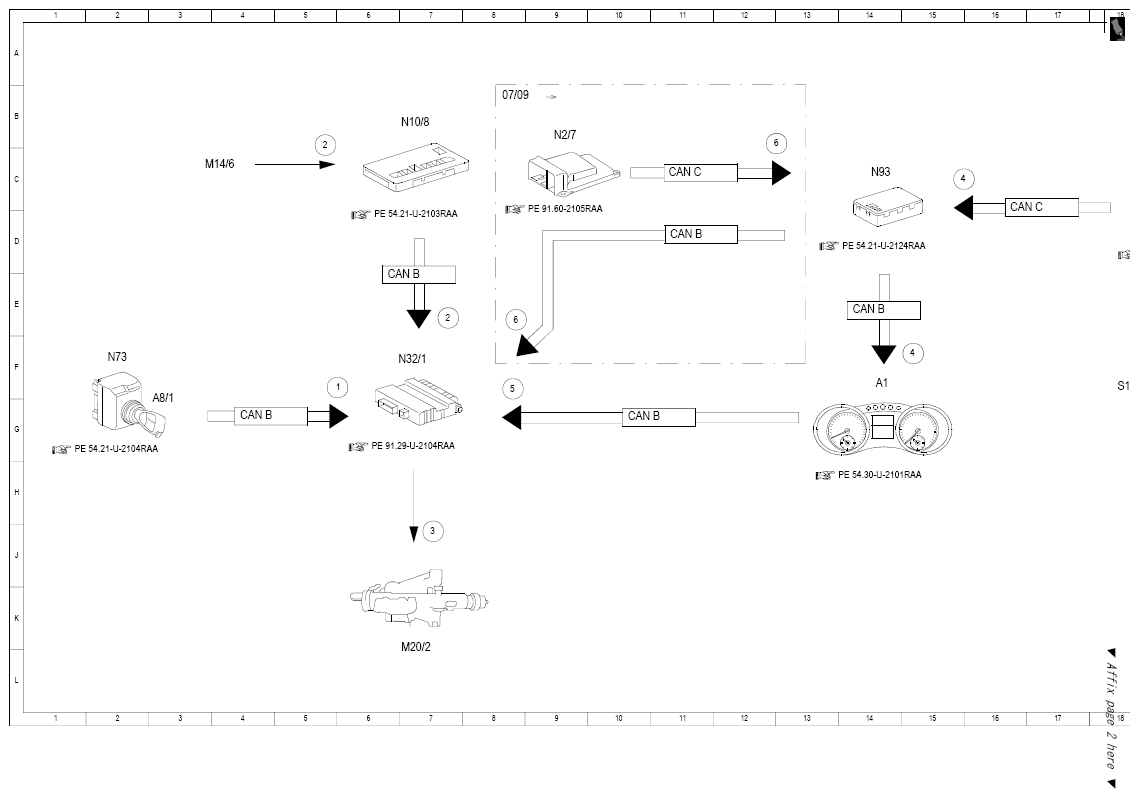

| 1 |
Circuit 15, status |
5 F |
| 2 |
Rotary tumbler microswitch, status |
5 C |
| 2 |
Rotary tumbler microswitch, status |
7 E |
| 3 |
Steering column motor, actuation |
7 J |
| 4 |
Multifunction steering wheel button group, signal |
15 F |
| 4 |
Multifunction steering wheel button group, signal |
15 C |
| 4 |
Multifunction steering wheel button group, signal |
19 E |
| 5 |
Easy entry/exit, status |
8 F |
| 6 |
Crash, signal |
8 E |
| 6 |
Crash, signal |
12 C |
| A1 |
Instrument cluster |
14 F |
| A8/1 |
Transmitter key |
3 G |
| CAN B |
Interior CAN |
4 G |
| CAN B |
Interior CAN |
6 E |
| CAN B |
Interior CAN |
10 G |
| CAN B |
Interior CAN |
11 D |
| CAN B |
Interior CAN |
14 E |
| CAN C |
Engine compartment CAN |
11 C |
| CAN C |
Engine compartment CAN |
16 D |
| LIN E1 |
Steering LIN |
19 F |
| M14/6 |
Left front door CL [ZV] motor |
3 C |
| M20/2 |
Steering column up/down motor |
6 L |
| N10/8 |
Rear SAM control unit |
6 B |
| N2/7 |
Restraint systems control unit |
9 B |
| N32/1 |
Driver front seat adjustment control unit with memory |
6 F |
| N73 |
EIS [EZS] control unit |
2 F |

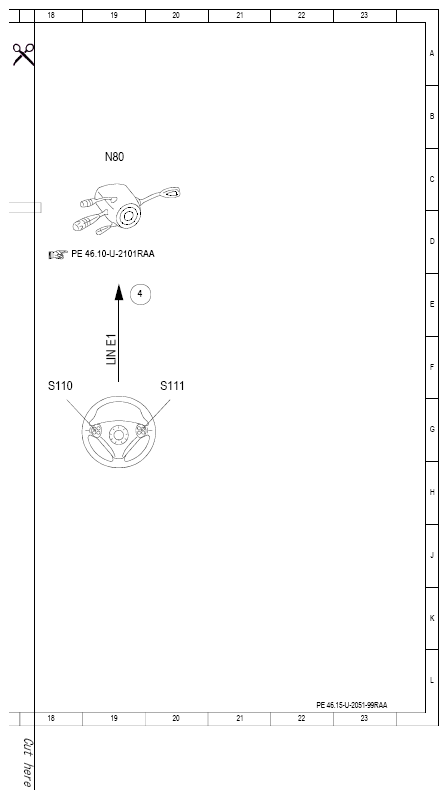

| N80 |
Steering column module |
19 C |
| N93 |
Central gateway control unit |
14 C |
| S110 |
Left multifunction steering wheel button group |
18 F |
| S111 |
Right multifunction steering wheel button group |
20 F |
