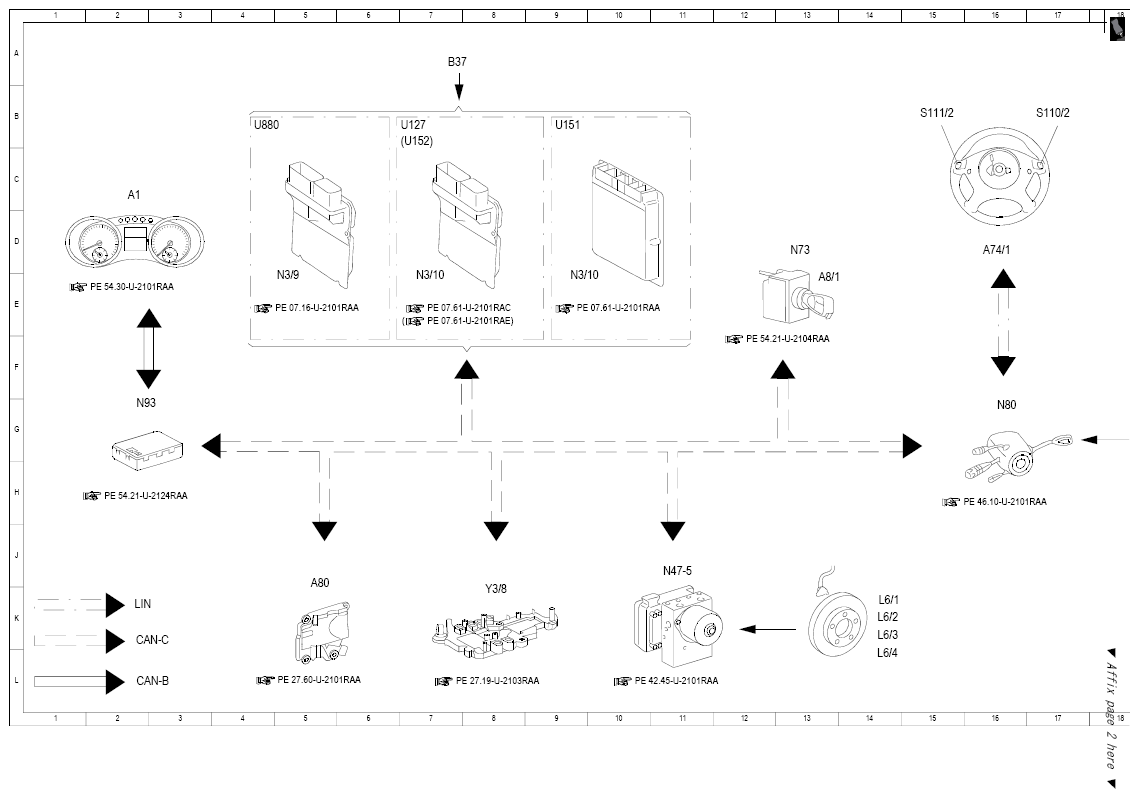

| A1 |
Instrument cluster |
2 C |
| A74/1 |
Multifunction steering wheel electronics unit |
16 D |
| A8/1 |
Transmitter key |
13 E |
| A80 |
Intelligent servo module for DIRECT SELECT |
5 K |
| B37 |
Accelerator pedal sensor |
7 A |
| L6/1 |
Left front RPM sensor |
14 K |
| L6/2 |
Right front RPM sensor |
14 K |
| L6/3 |
Left rear RPM sensor |
14 K |
| L6/4 |
right rear RPM sensor |
14 L |
| N3/10 |
ME-SFI [ME] control unit |
7 E |
| N3/10 |
ME-SFI [ME] control unit |
9 E |
| N3/9 |
CDI control unit |
5 E |
| N47-5 |
ESP control unit |
11 J |
| N73 |
EIS [EZS] control unit |
13 D |
| N80 |
Steering column module |
16 G |
| N93 |
Central gateway control unit |
2 G |
| S110/2 |
Left steering wheel gear shifter |
17 B |
| S111/2 |
Right steering wheel gear shifter |
15 B |

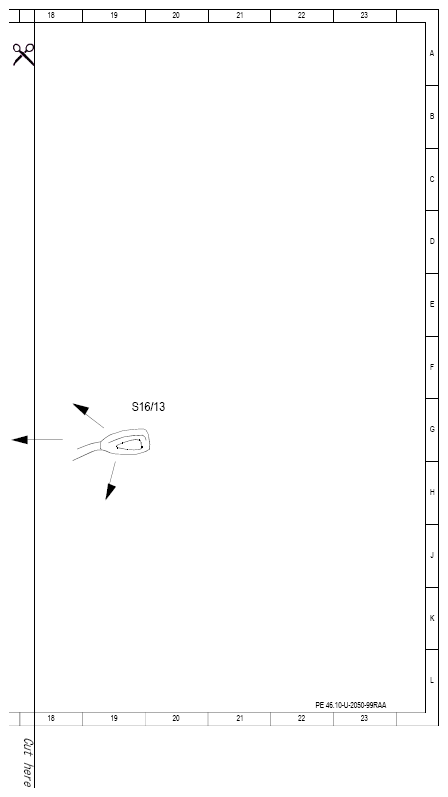

| S16/13 |
Gear selector switch DIRECT SELECT |
19 G |
| U127 |
Valid for engine 272, engine 273 KE |
6 B |
| U151 |
Valid for engine 113 |
9 B |
| U152 |
Valid for engine 156 |
6 C |
| U152 |
Valid for engine 156 |
7 C |
| U880 |
Valid for engine 642 |
4 B |
| Y3/8 |
Electric control unit (VGS) |
8 K |
