Wiring diagram, reversible emergency tensioning retractor - PE91.40-P-2200-97RAA

Code	Designation	Position
A0	Color code key	23L
A76	Left front reversible emergency tensioning retractor	3A
A76	Left front reversible emergency tensioning retractor	13A
A76/1	Right front reversible emergency tensioning retractor	9A
A76/1	Right front reversible emergency tensioning retractor	20A
CAN C	Engine compartment CAN	6B
CAN C	Engine compartment CAN	16B
F4	Load compartment fuse and relay box	6L
F4	Load compartment fuse and relay box	18L
F4f24	Fuse 24	10L
F4f24	Fuse 24	21L
F4f29	Fuse 29	4L
F4f29	Fuse 29	14L
F4f52	Fuse 52	2L
U12	Valid for left-hand drive vehicles	7F
U12	Valid for left-hand drive vehicles	7F
U12	Valid for left-hand drive vehicles	17F
U12	Valid for left-hand drive vehicles	17F
U13	Valid for right-hand drive vehicles	6F
U13	Valid for right-hand drive vehicles	6F
U13	Valid for right-hand drive vehicles	16F
U13	Valid for right-hand drive vehicles	16F
W17	Ground (right rear seat)	11E
W17	Ground (right rear seat)	21E
W17/1	Ground (left rear seat)	1E
W17/1	Ground (left rear seat)	12E
X30/19	Passenger-side voltage distributor (CAN C) connector	6A
X30/19	Passenger-side voltage distributor (CAN C) connector	16A

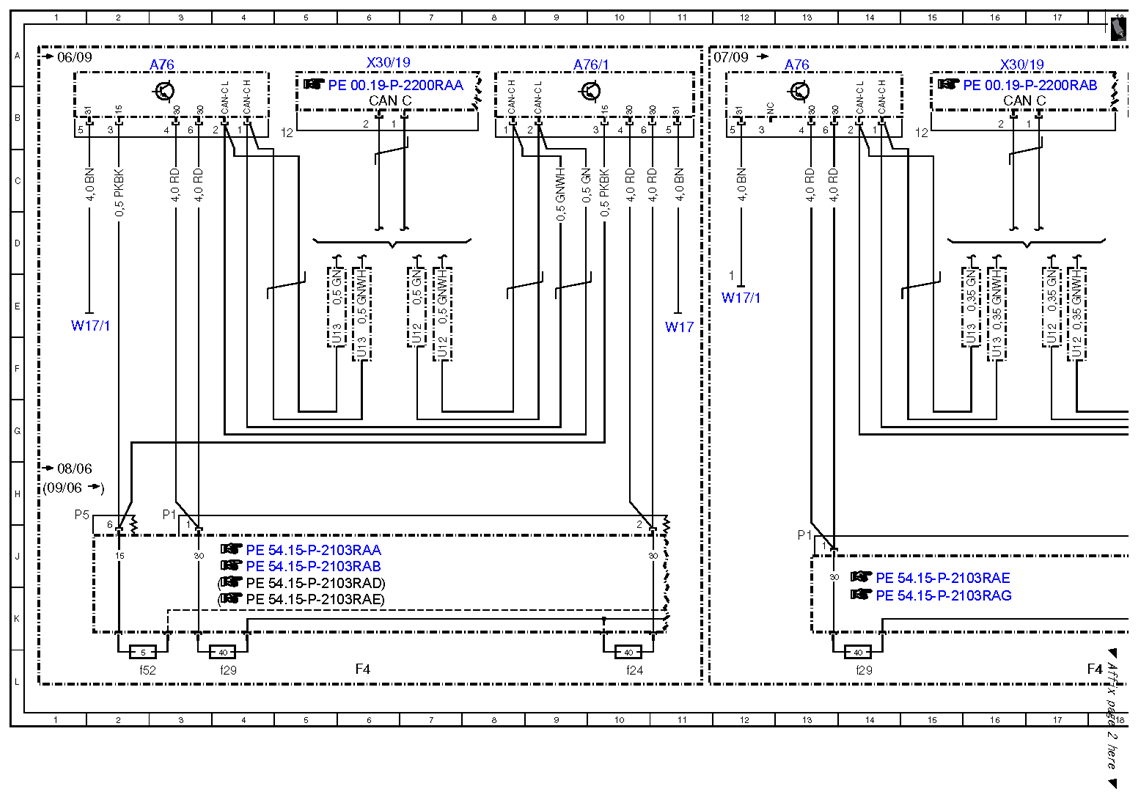

Fig 1: Reversible Emergency Tensioning Retractor Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

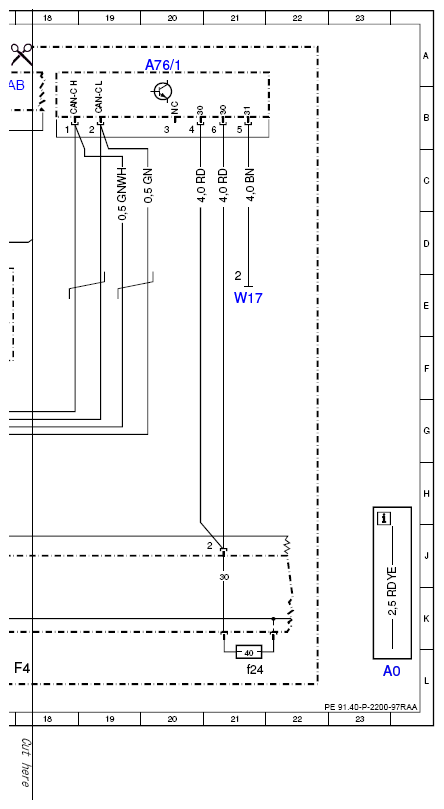

Fig 2: Reversible Emergency Tensioning Retractor Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
