| F33 |
Battery compartment prefuse box |
3 L |
| F33f88 |
Fuse 88 |
4 L |
| F33f89 |
Fuse 89 |
2 L |
| F33f90 |
Fuse 90 |
1 L |
| F4 |
Load compartment fuse and relay box |
21 L |
| F4 |
Load compartment fuse and relay box |
37 L |
| F4f31 |
Fuse 31 |
36 L |
| F4f68 |
Fuse 68 |
20 K |
| M18/10 |
Left front seat backrest ventilation motor group |
49 L |

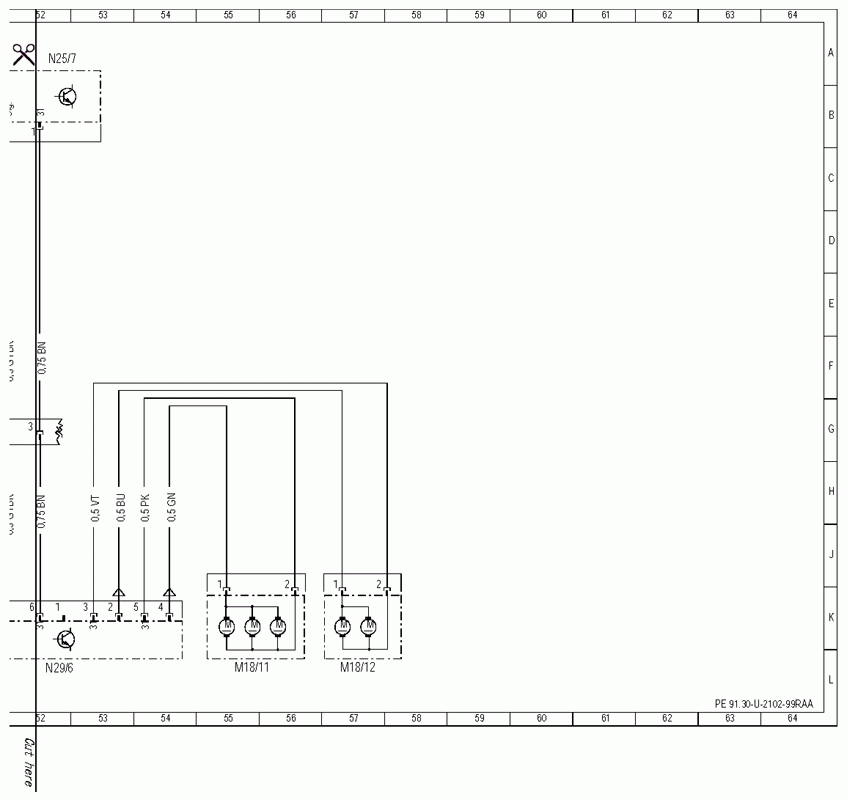

| M18/11 |
Right front seat cushion ventilation motor group |
55 L |
| M18/12 |
Right front seat backrest ventilation motor group |
57 L |

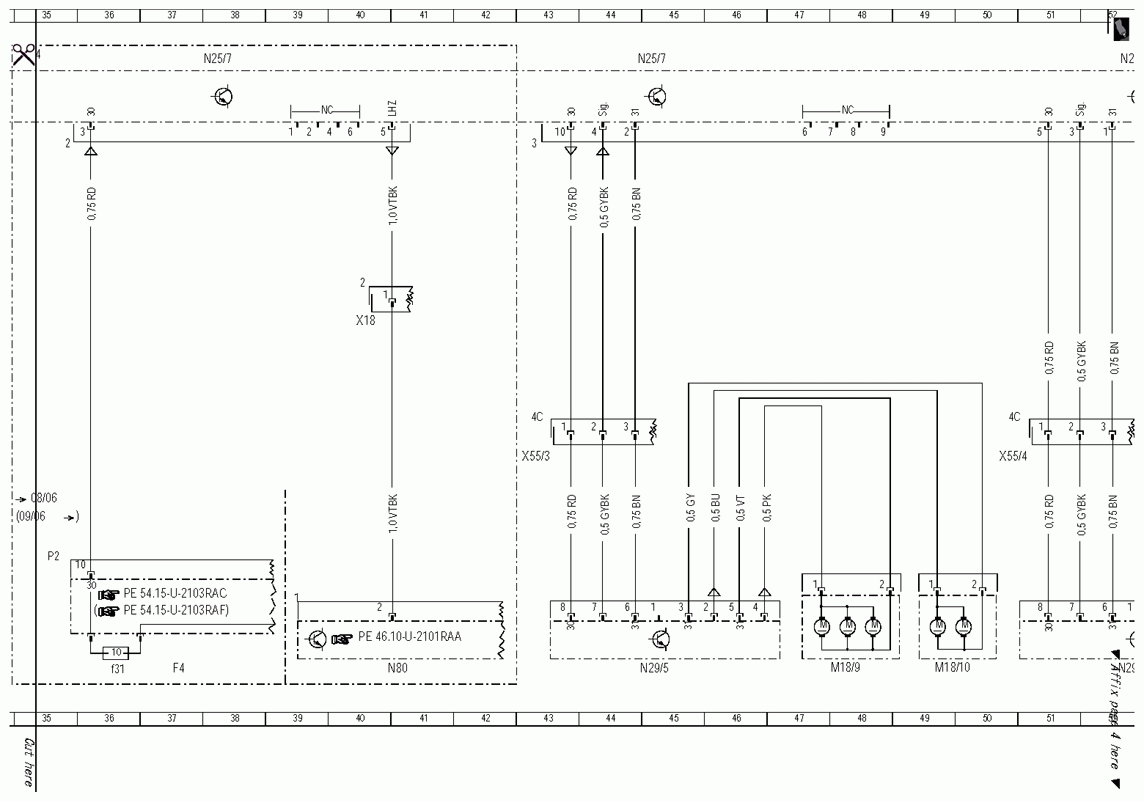

| M18/9 |
Left front seat cushion ventilation motor group |
47 L |

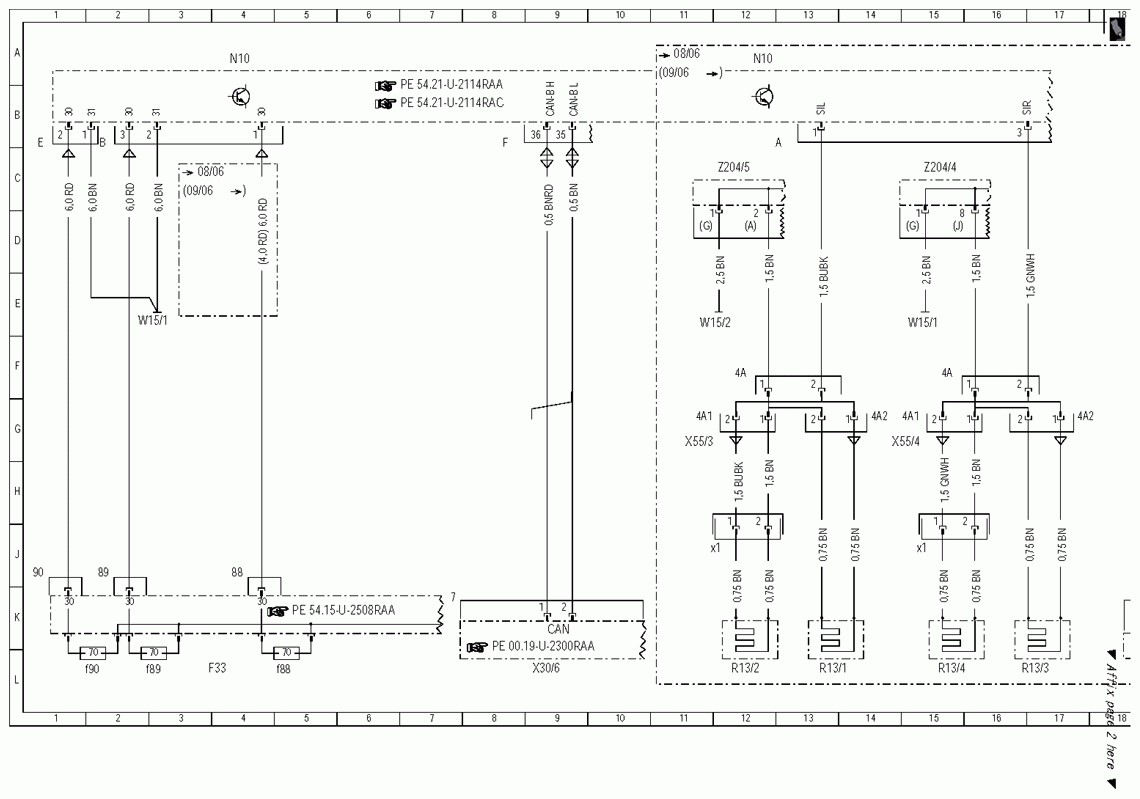

| N10 |
Front SAM control unit |
4 A |
| N10 |
Front SAM control unit |
12 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
20 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
28 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
37 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
44 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
52 A |
| N29/5 |
Left front seat ventilation blower regulator |
44 L |
| N29/6 |
Right front seat ventilation blower regulator |
52 L |
| N80 |
Steering column module |
40 L |
| R13/1 |
Left front seat heated cushion |
13 L |
| R13/2 |
Left front backrest heated cushion |
12 L |
| R13/2x1 |
Left front backrest heated cushion connector |
11 J |
| R13/3 |
Right front seat heated cushion |
16 L |
| R13/4 |
Right front backrest heated cushion |
15 L |
| R13/4x1 |
Right front backrest heater element connector |
15 J |

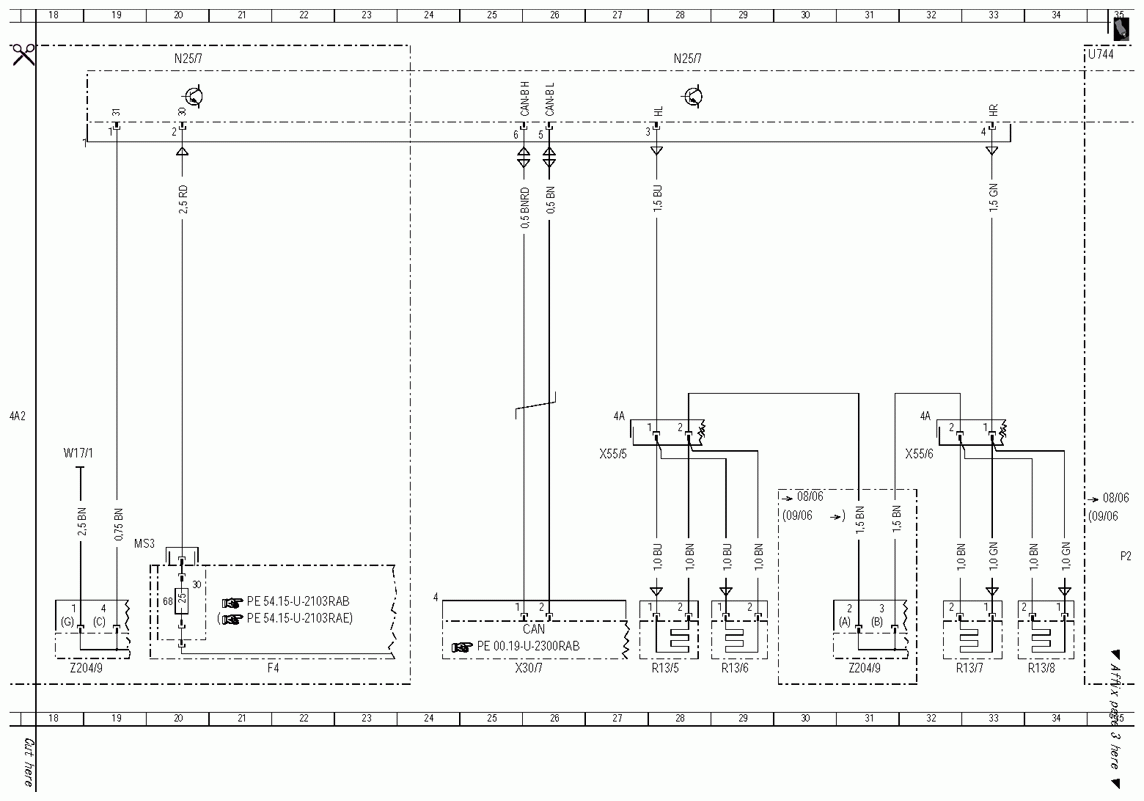

| R13/5 |
Left 2nd row seat heated cushion |
28 L |
| R13/6 |
Left 2nd row backrest heated cushion |
29 L |
| R13/7 |
Right 2nd row seat heated cushion |
32 L |
| R13/8 |
Right 2nd row backrest heated cushion |
33 L |
| U744 |
Valid for steering wheel heater |
34 A |
| W15/1 |
Ground (right footwell) |
2 E |
| W15/1 |
Ground (right footwell) |
15 E |
| W15/2 |
Ground (left footwell) |
11 E |
| W17/1 |
Ground (left rear seat) |
18 H |
| X18 |
Interior/cockpit connector |
40 E |
| X30/6 |
Cockpit voltage distributor (CAN) connector |
9 L |
| X30/7 |
Voltage distributor (CAN) connector |
25 L |
| X55/3 |
Left front seat contacting strip |
11 G |
| X55/3 |
Left front seat contacting strip |
43 H |
| X55/4 |
Right front seat contacting strip |
14 G |
| X55/4 |
Right front seat contacting strip |
50 H |
| X55/5 |
Left 2nd row seat adjustment connector block |
27 H |
| X55/6 |
Right 2nd row seat adjustment connector block |
32 H |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
15 C |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
12 C |
| Z204/9 |
Circuit 31 left rear seat voltage distributor connector (3) |
18 L |
| Z204/9 |
Circuit 31 left rear seat voltage distributor connector (3) |
31 L |
