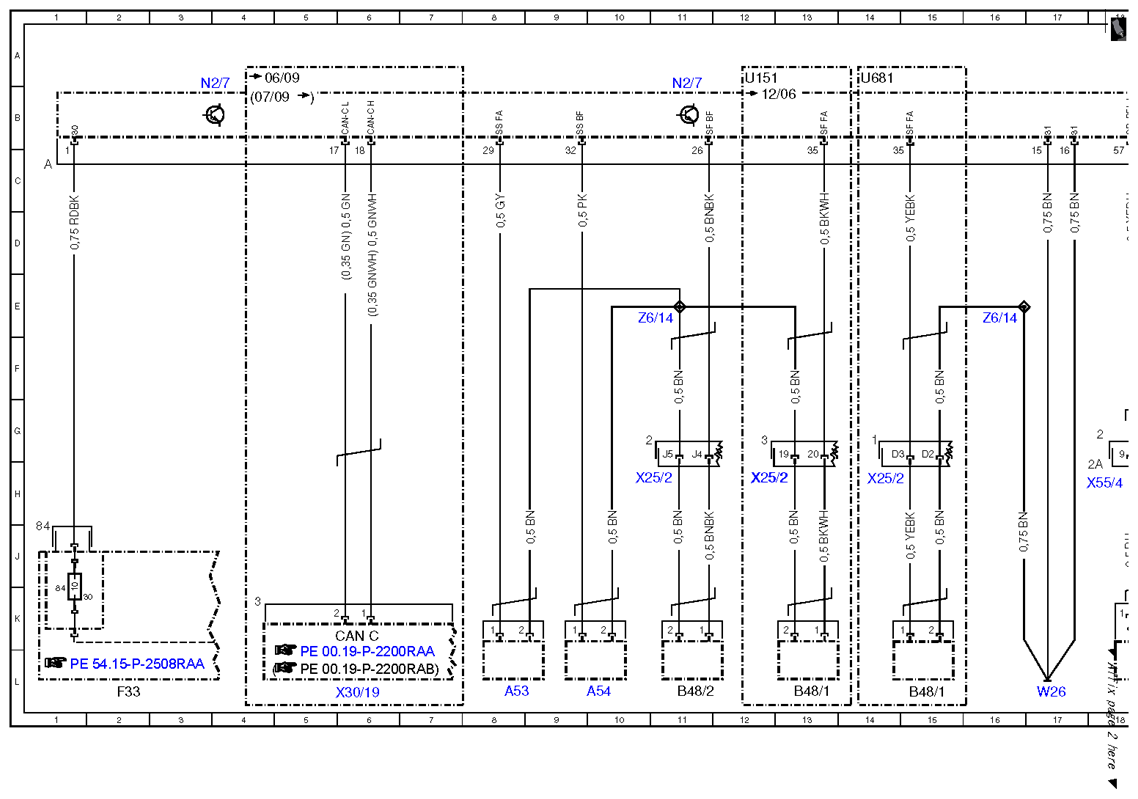

| A0 |
Color code key |
80L |
| A53 |
Driver sidebag sensor |
8L |
| A54 |
Front passenger sidebag sensor |
10L |

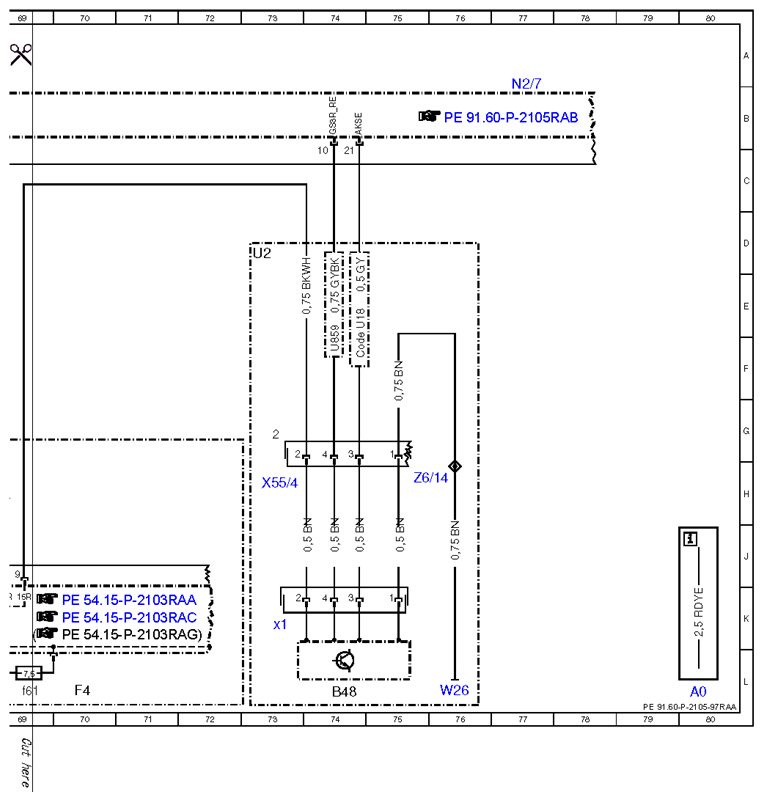

| B48 |
Front passenger seat occupied and child seat recognition sensor |
74L |
| B48/1 |
Driver-side frontal acceleration sensor |
13L |
| B48/1 |
Driver-side frontal acceleration sensor |
15L |
| B48/10 |
Rear door pressure sensor, passenger-side |
29L |
| B48/2 |
Passenger-side frontal acceleration sensor |
11L |
| B48/9 |
Rear door pressure sensor, driver-side |
27L |
| B48x1 |
Front passenger seat occupied and child seat recognition sensor connector |
73K |
| CAN C |
Engine compartment CAN |
6K |
| Code 293 |
Left and right rear sidebag |
26A |
| Code 359 |
TELEAID emergency call system |
60D |
| Code U18 |
Automatic child seat recognition (ACSR[AKSE]) |
74E |
| F33 |
Battery compartment prefuse box |
2L |
| F33f84 |
Fuse 84 |
1K |
| F4 |
Load compartment fuse and relay box |
70L |
| F4f59 |
Fuse 59 |
68L |
| F4f61 |
Fuse 61 |
69L |
| N123/4 |
Emergency call system control unit |
61L |
| N2/7 |
Restraint systems control unit |
3B |
| N2/7 |
Restraint systems control unit |
11B |
| N2/7 |
Restraint systems control unit |
28B |
| N2/7 |
Restraint systems control unit |
20B |
| N2/7 |
Restraint systems control unit |
35B |
| N2/7 |
Restraint systems control unit |
42B |
| N2/7 |
Restraint systems control unit |
52B |
| N2/7 |
Restraint systems control unit |
60B |
| N2/7 |
Restraint systems control unit |
68B |
| N2/7 |
Restraint systems control unit |
77B |

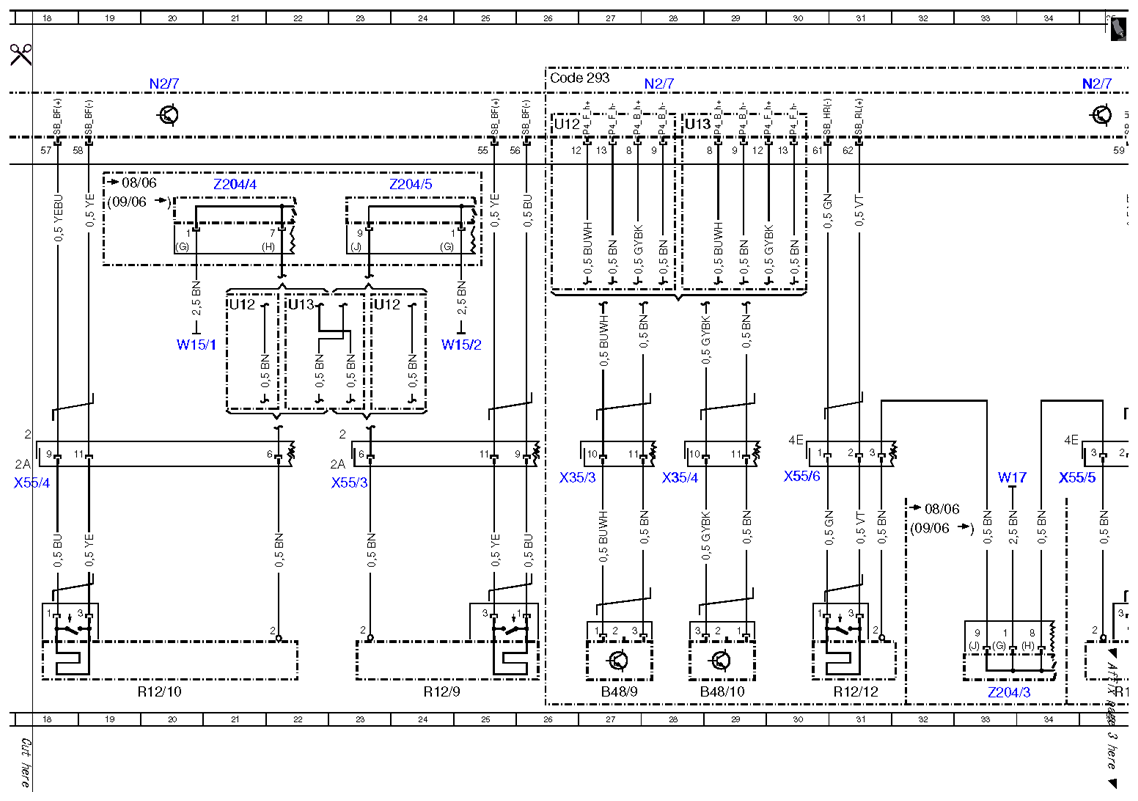

| R12/10 |
Front passenger sidebag squib |
20L |

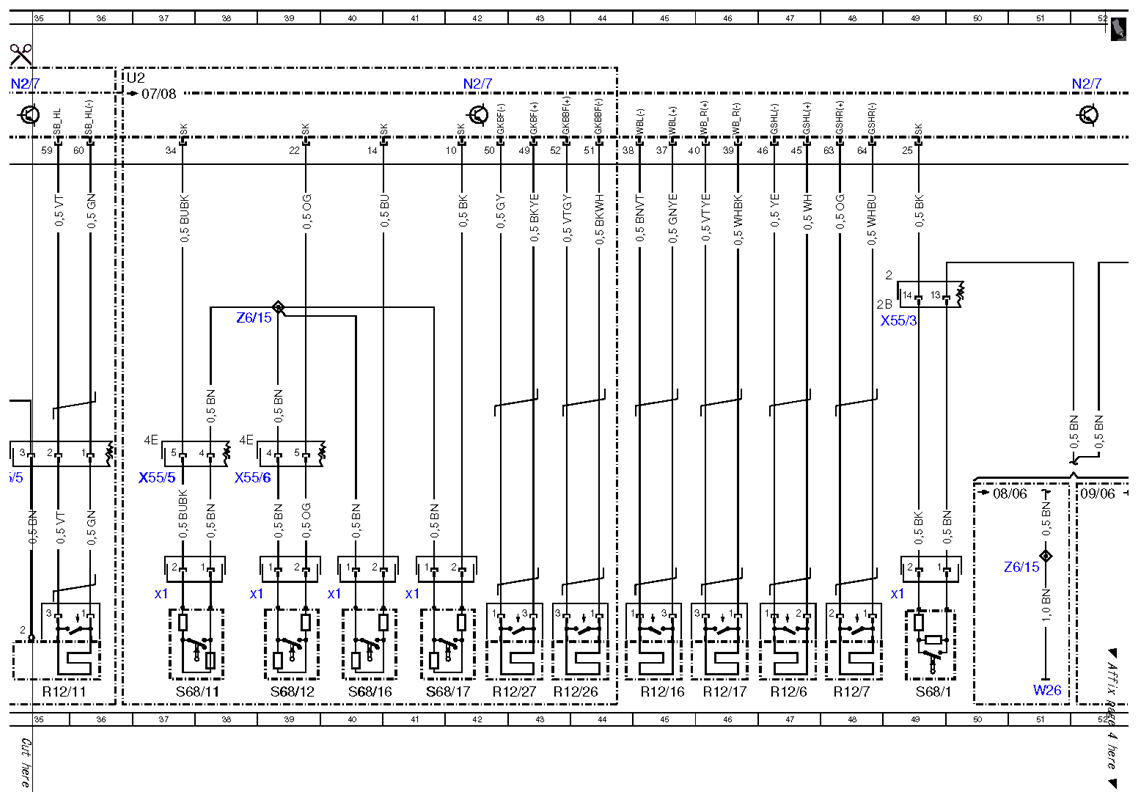

| R12/11 |
Left 2nd row sidebag squib |
35L |
| R12/12 |
Right 2nd row sidebag squib |
31L |
| R12/16 |
Left windowbag squib |
45L |
| R12/17 |
Right windowbag squib |
46L |
| R12/26 |
Front passenger belt force limiter |
43L |
| R12/27 |
Driver belt force limiter |
42L |
| R12/35 |
Left 3rd row ETR [GUS] squib |
58L |
| R12/36 |
Right 3rd row ETR [GUS] squib |
59L |
| R12/6 |
Left 2nd row ETR [GUS] squib |
47L |
| R12/7 |
Right 2nd row ETR [GUS] squib |
48L |
| R12/9 |
Driver sidebag squib |
24L |

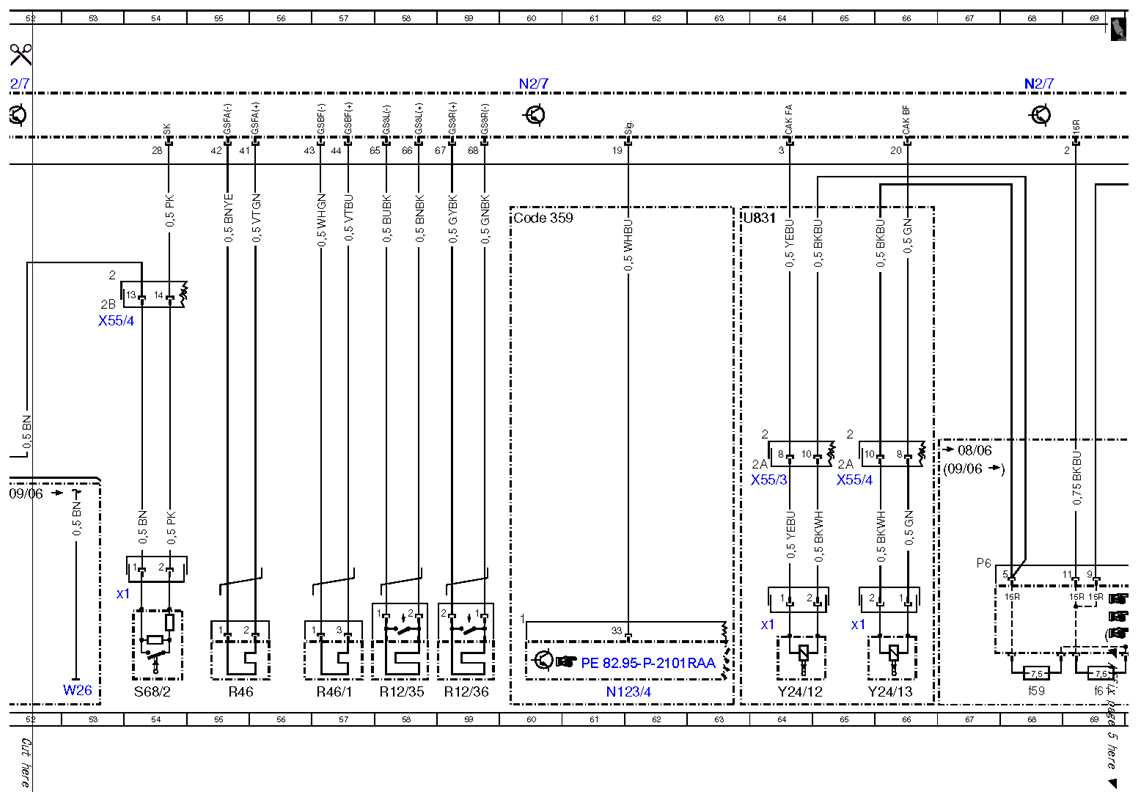

| R46 |
Driver buckle ETR squib |
55L |
| R46/1 |
Front passenger buckle ETR squib |
57L |
| S68/1 |
Driver seat belt buckle and seat belt warning switch |
49L |
| S68/11 |
Left rear seat belt buckle switch |
37L |
| S68/11x1 |
Left rear seat belt buckle switch connector |
37K |
| S68/12 |
Right rear seat belt buckle switch |
39L |
| S68/12x1 |
Right rear seat belt buckle switch connector |
38K |
| S68/16 |
Left third row seat belt buckle switch |
40L |
| S68/16x1 |
Left 3rd seat row seat belt buckle switch connector |
40K |
| S68/17 |
Right third row seat belt buckle switch |
41L |
| S68/17x1 |
Right 3rd seat row seat belt buckle switch connector |
41K |
| S68/1x1 |
Left front seat belt buckle and seat belt warning switch connector |
49K |
| S68/2 |
Front passenger seat belt buckle and seat belt warning switch |
54L |
| S68/2x1 |
Right front seat belt buckle and seat belt warning switch connector |
53K |
| U12 |
Valid for left-hand drive vehicles |
21E |
| U12 |
Valid for left-hand drive vehicles |
23E |
| U12 |
Valid for left-hand drive vehicles |
26B |
| U13 |
Valid for right-hand drive vehicles |
22E |
| U13 |
Valid for right-hand drive vehicles |
28B |
| U151 |
Valid for engine 113 |
12A |
| U2 |
Valid for all except{{USA}} |
36A |
| U2 |
Valid for all except{{USA}} |
73D |
| U681 |
Valid for all except M113 |
14A |
| U831 |
Valid for NECK-PRO head restraints |
63D |
| U859 |
Valid for seat belt reminder warning |
74E |
| W15/1 |
Ground (right footwell) |
20F |
| W15/2 |
Ground (left footwell) |
24F |
| W17 |
Ground (right rear seat) |
33H |
| W26 |
Ground (restraint systems control unit) |
17L |
| W26 |
Ground (restraint systems control unit) |
51L |
| W26 |
Ground (restraint systems control unit) |
53L |
| W26 |
Ground (restraint systems control unit) |
76L |
| X25/2 |
Engine compartment/interior compartment connector |
12H |
| X25/2 |
Engine compartment/interior compartment connector |
11H |
| X25/2 |
Engine compartment/interior compartment connector |
14H |
| X30/19 |
Passenger-side voltage distributor (CAN C) connector |
6L |
| X35/3 |
Left rear door separation point |
26H |
| X35/4 |
Right rear door separation point |
28H |
| X55/3 |
Left front seat contacting strip |
23H |
| X55/3 |
Left front seat contacting strip |
64H |
| X55/3 |
Left front seat contacting strip |
49E |
| X55/4 |
Right front seat contacting strip |
18H |
| X55/4 |
Right front seat contacting strip |
65H |
| X55/4 |
Right front seat contacting strip |
53E |
| X55/4 |
Right front seat contacting strip |
73H |
| X55/5 |
Left 2nd row seat adjustment connector block |
34H |
| X55/5 |
Left 2nd row seat adjustment connector block |
37H |
| X55/6 |
Right 2nd row seat adjustment connector block |
30H |
| X55/6 |
Right 2nd row seat adjustment connector block |
38H |
| Y24/12 |
Driver NECK-PRO head restraint solenoid |
64L |
| Y24/12x1 |
Driver NECK-PRO head restraint solenoid connector |
64K |
| Y24/13 |
Front passenger NECK-PRO head restraint solenoid |
66L |
| Y24/13x1 |
Front passenger NECK-PRO head restraint solenoid connector |
65K |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
33L |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
21C |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
24C |
| Z6/14 |
Circuit 31 ground connector sleeve (left belt buckle) |
16E |
| Z6/14 |
Circuit 31 ground connector sleeve (left belt buckle) |
11E |
| Z6/14 |
Circuit 31 ground connector sleeve (left belt buckle) |
76H |
| Z6/15 |
Circuit 31 ground connector sleeve (right belt buckle) |
38E |
| Z6/15 |
Circuit 31 ground connector sleeve (right belt buckle) |
51J |
