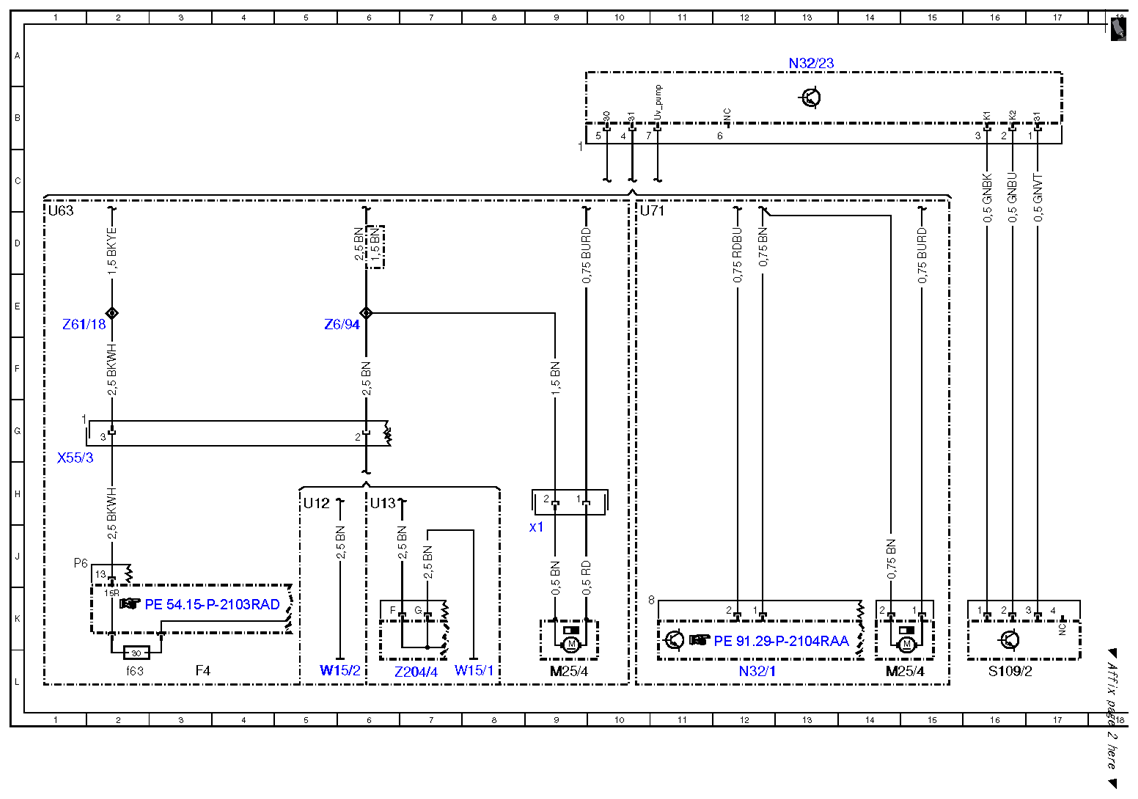

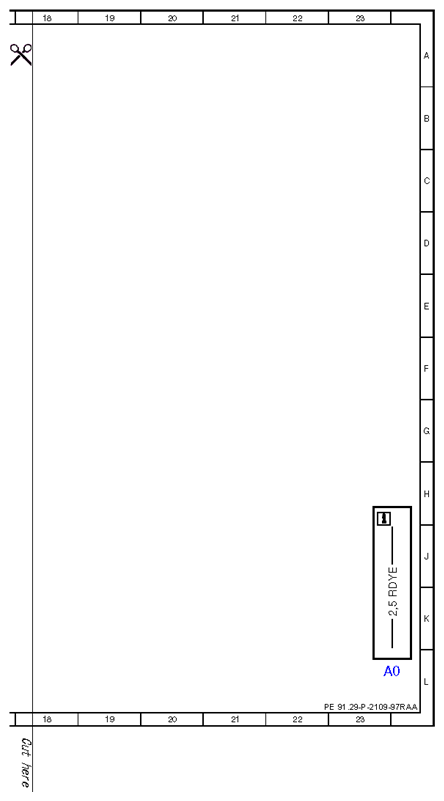

| A0 |
Color code key |
23L |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f63 |
Fuse 63 |
2L |
| M25/4 |
Driver lumbar support pump |
14L |
| M25/4 |
Driver lumbar support pump |
9L |
| M25/4x1 |
Driver seat lumbar support pneumatic pump electrical connector |
9J |
| N32/1 |
Driver front seat adjustment control unit with memory |
12L |
| N32/23 |
Driver lumbar support regulator control unit |
13A |
| S109/2 |
Driver lumbar support adjustment switch |
16L |
| U12 |
Valid for left-hand drive vehicles |
5H |
| U13 |
Valid for right-hand drive vehicles |
6H |
| U63 |
Valid for seat adjustment without memory |
1D |
| U71 |
Valid for seat adjustment with memory |
10D |
| W15/1 |
Ground (right footwell) |
8L |
| W15/2 |
Ground (left footwell) |
5L |
| X55/3 |
Left front seat contacting strip |
1H |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
7L |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
6E |
| Z61/18 |
Driver seat circuit 15R connector sleeve |
1E |
