Remove/install airbag unit on the steering wheel - AR91.60-P-0660GZA
MODEL 164, 251 as of model year 09
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01M | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Disconnect jump-start sources or battery charger | ||
| 2 | Move steering wheel to straight-ahead position. | ||
| 3 | Disconnect battery ground line | Model 164. | AR54.10-P-0003GZ |
| Model 251. | AR54.10-P-0003RT | ||

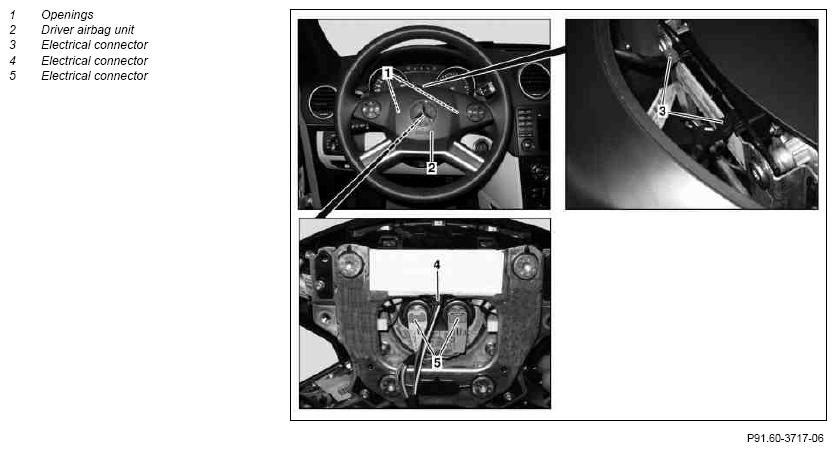

| 4 | Insert screwdriver bit into openings (1) at back of steering wheel and remove bolts from driver airbag unit (2) | *BA91.60-P-1003-01H | |
| *BA91.60-P-1001-01K | |||
| Fig 2 | |||
| 5 | Lift driver airbag unit (2) from steering wheel and disconnect electrical connectors (3, 4, and 5) | ||
| 6 | Detach driver airbag unit (2) from the steering wheel | ↓ |
|
| Notes on disposing of airbag and emergency tensioning retractor units | OS91.00-P-0001-01A | ||
| 7 | Install in the reverse order | ||
| 8 | Check restraint system using STAR DIAGNOSIS diagnostic system | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | Model 164.1/8 | |
|---|---|---|---|
| BA91.60-P-1003-01H | Bolt, airbag to steering wheel | Nm | 8 |
AIRBAG
| Number | Designation | Model 251 except USA version (code 494a) | Model 251 with USA version (code 494a) | |
|---|---|---|---|---|
| BA91.60-P-1001-01K | Bolt, airbag to steering wheel | Nm | 8 | 8 |
