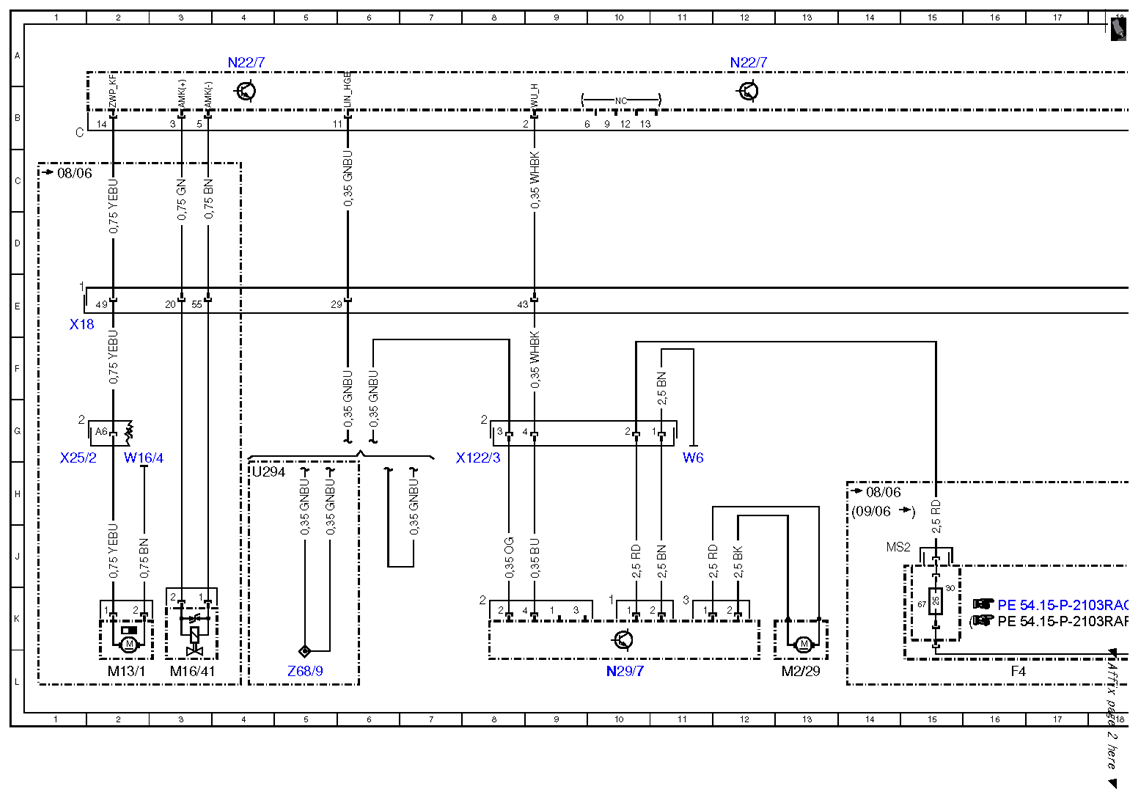

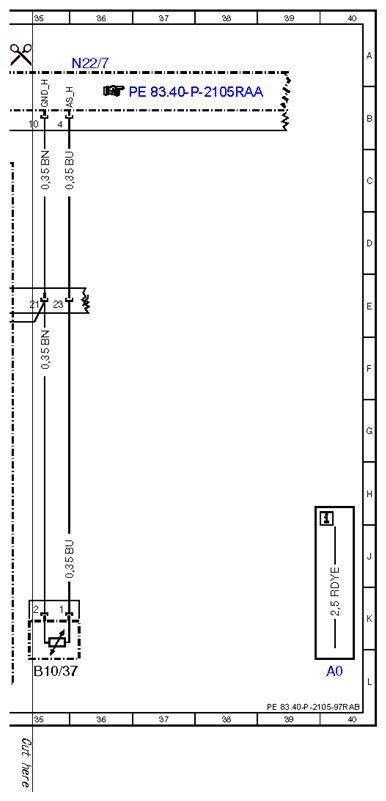

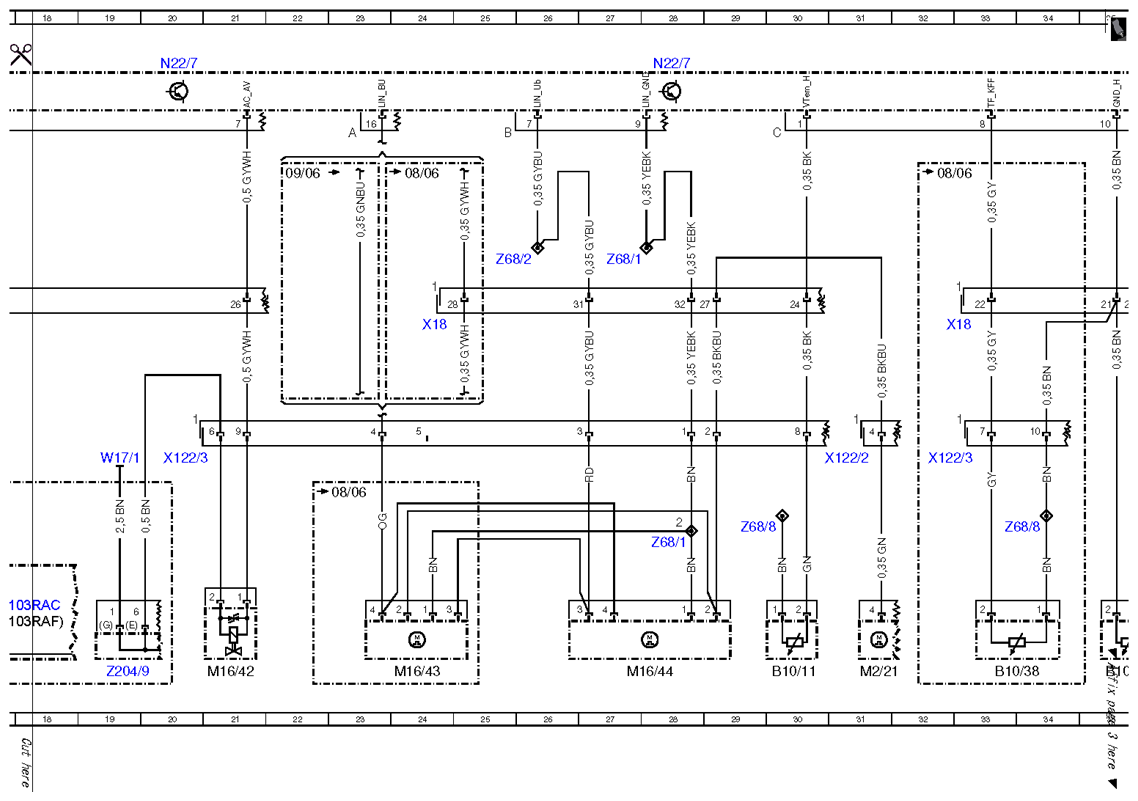

| A0 |
Color code key |
40L |
| B10/11 |
Rear air conditioning evaporator temperature sensor |
30L |
| B10/37 |
Rear headroom AC temperature sensor |
35L |
| B10/38 |
Footwell rear AC temperature sensor |
33L |
| F4 |
Load compartment fuse and relay box |
16L |
| F4f67 |
Fuse 67 |
15K |
| M13/1 |
Rear AC additional circulation pump |
2L |
| M16/41 |
Coolant shutoff motor |
3L |
| M16/42 |
Rear air conditioning coolant shutoff motor |
21L |
| M16/43 |
3rd seat row air distribution actuator motor |
24L |
| M16/44 |
3rd seat row blending air flap actuator motor |
27L |
| M2/21 |
Rear air distribution flap actuator motor |
31L |
| M2/29 |
Rear air conditioning blower motor |
13L |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
4A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
12A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
20A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
28A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
36A |
| N29/7 |
Rear air conditioning blower regulator |
10L |
| U294 |
Valid for heated windshield |
4H |
| W16/4 |
Ground (right assembly compartment, power ground) |
2H |
| W17/1 |
Ground (left rear seat) |
19H |
| W6 |
Ground (left wheelhouse in luggage compartment) |
11H |
| X122/2 |
Booster blower connector (air conditioning) |
31H |
| X122/3 |
Rear AC connector |
20H |
| X122/3 |
Rear AC connector |
8H |
| X122/3 |
Rear AC connector |
32H |
| X18 |
Interior/cockpit connector |
1E |
| X18 |
Interior/cockpit connector |
24E |
| X18 |
Interior/cockpit connector |
33E |
| X25/2 |
Engine compartment/interior compartment connector |
1H |
| Z204/9 |
Circuit 31 left rear seat voltage distributor connector (3) |
19L |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
28J |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
27D |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
25D |
| Z68/8 |
Rear air conditioning sensor ground connector sleeve |
29J |
| Z68/8 |
Rear air conditioning sensor ground connector sleeve |
34J |
| Z68/9 |
Rear air conditioning blower regulator diagnosis connector sleeve |
5L |
