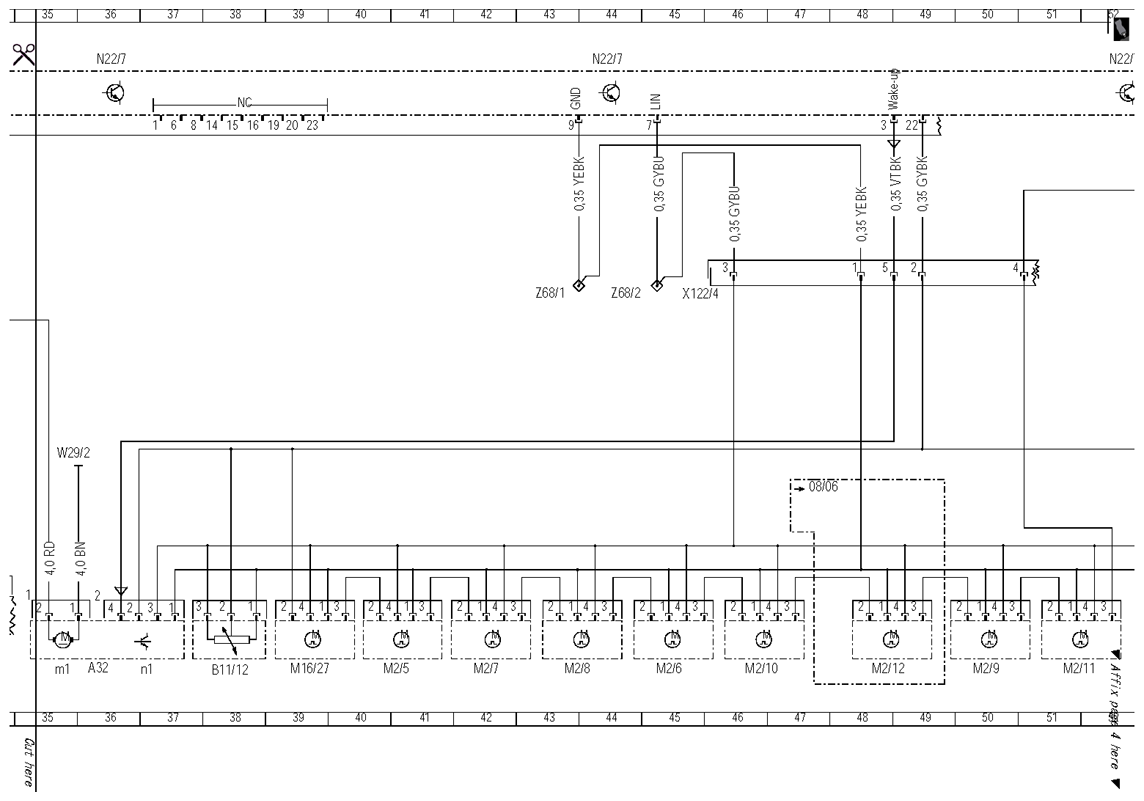

| A32 |
AC air recirculation unit |
36 L |
| A32m1 |
Blower motor |
35 L |
| A32n1 |
Blower regulator |
36 L |

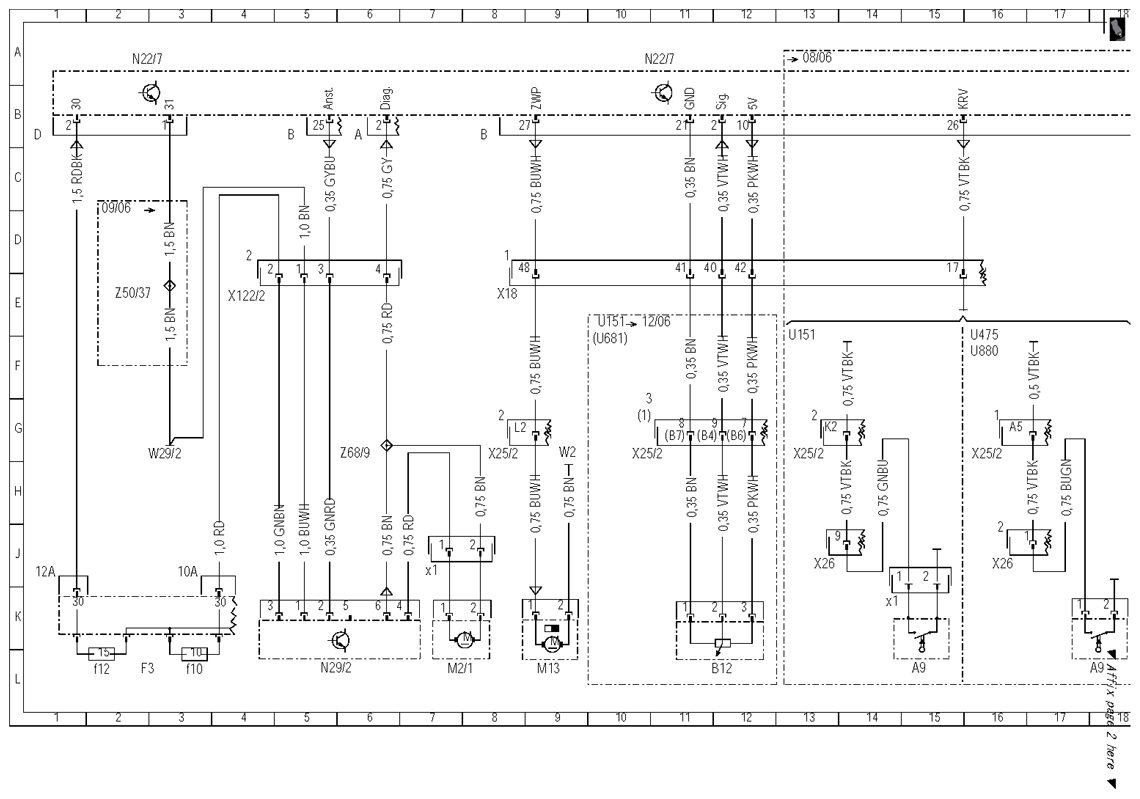

| A9 |
Refrigerant compressor |
15 L |
| A9 |
Refrigerant compressor |
17 L |

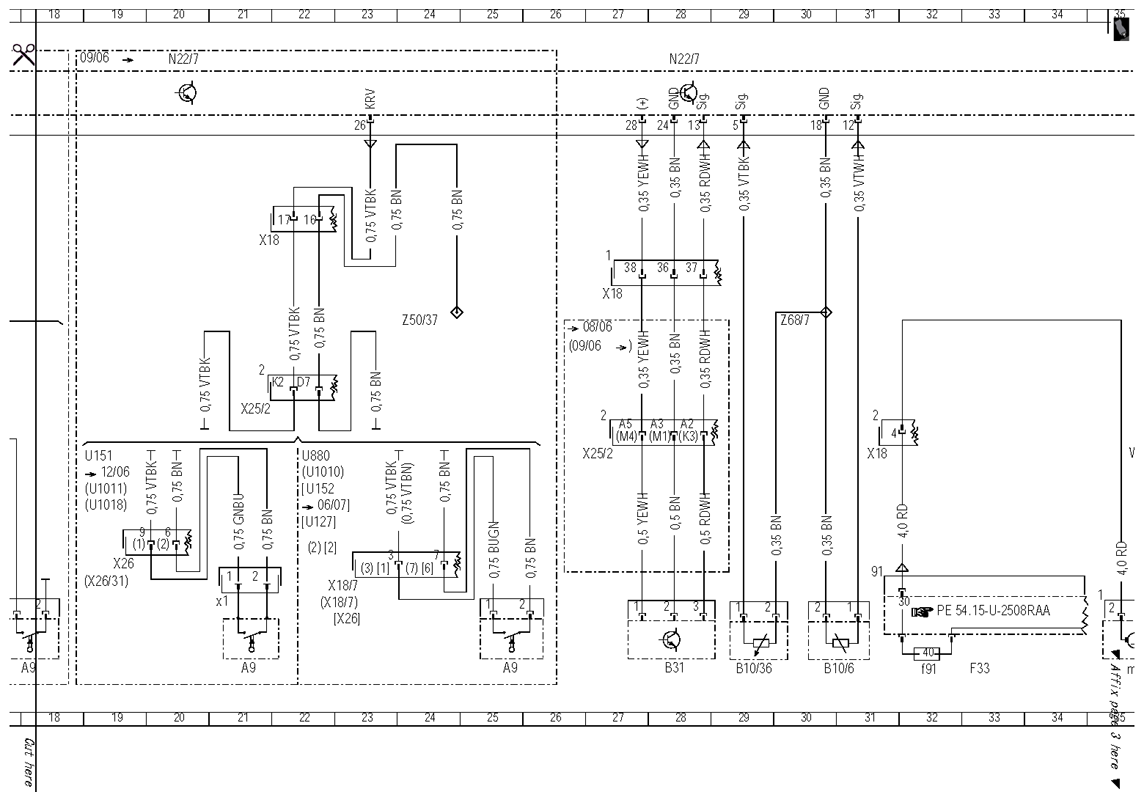

| A9 |
Refrigerant compressor |
21 L |
| A9 |
Refrigerant compressor |
25 L |
| A9x1 |
Refrigerant compressor connector |
14 K |
| A9x1 |
Refrigerant compressor connector |
21 K |

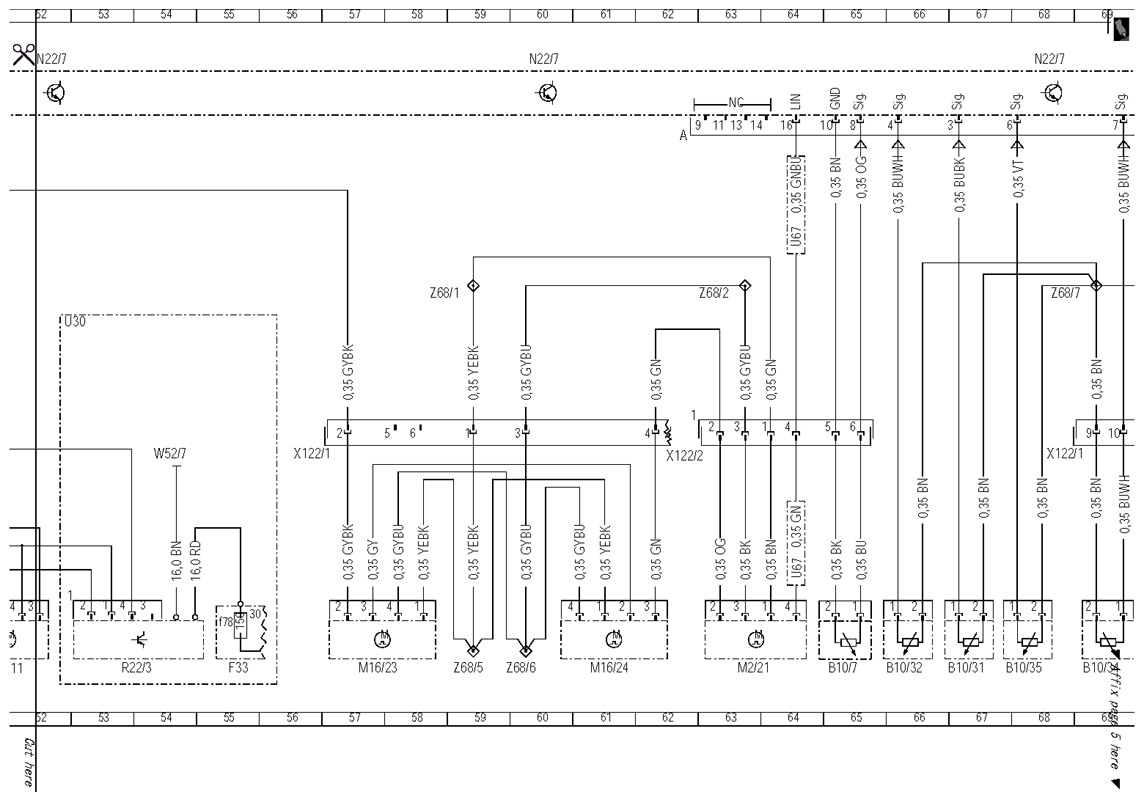

| B10/31 |
Left side outlet temperature sensor |
66 L |
| B10/32 |
Right side outlet temperature sensor |
65 L |

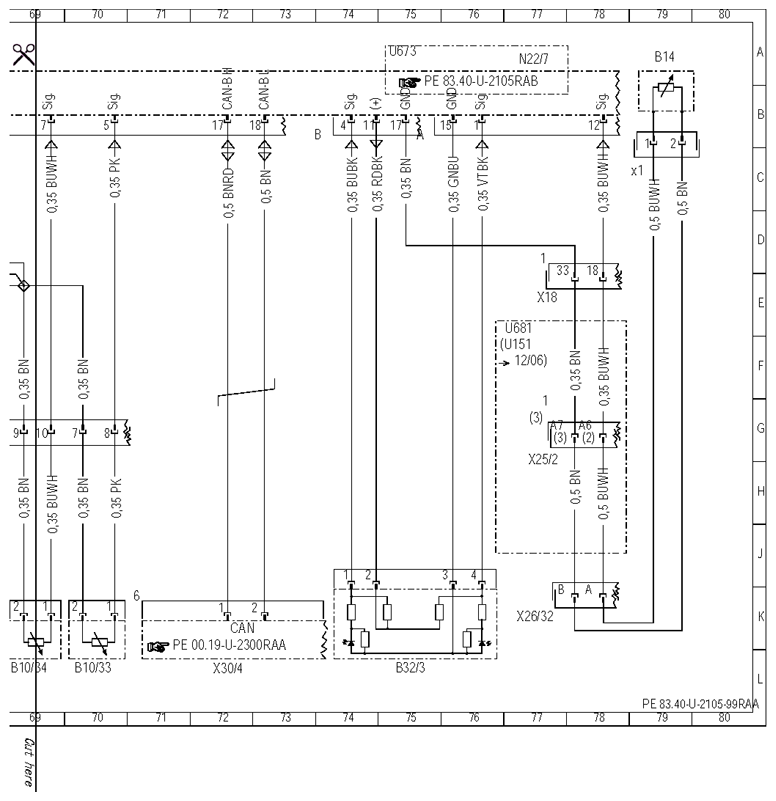

| B10/33 |
Left center outlet temperature sensor |
70 L |
| B10/34 |
Right center outlet temperature sensor |
69 L |
| B10/35 |
Left footwell temperature sensor |
67 L |
| B10/36 |
Right footwell temperature sensor |
29 L |
| B10/6 |
Evaporator temperature sensor |
30 L |
| B10/7 |
Center rear interior temperature sensor |
64 L |
| B11/12 |
Dew point sensor |
38 L |
| B12 |
Refrigerant pressure sensor |
11 L |
| B14 |
Outside temperature display temperature sensor |
79 A |
| B14x1 |
Outside temperature indicator temperature sensor connector |
79 C |
| B31 |
Emissions sensor |
28 L |
| B32/3 |
Dual sun sensor |
75 L |
| F3 |
Cockpit fuse box |
2 L |
| F33 |
Battery compartment prefuse box |
33 L |
| F33 |
Battery compartment prefuse box |
55 L |
| F33f78 |
Fuse 78 |
55 K |
| F33f91 |
Fuse 91 |
31 L |
| F3f10 |
Fuse 10 |
3 L |
| F3f12 |
Fuse 12 |
1 L |
| M13 |
Coolant circulation pump |
9 L |
| M16/23 |
Left center air flap actuator motor |
57 L |
| M16/24 |
Right center air flap actuator motor |
61 L |
| M16/27 |
Diverter flap actuator motor |
39 L |
| M2/1 |
Booster blower motor |
7 L |
| M2/10 |
Left footwell flap actuator motor |
46 L |
| M2/11 |
Right footwell flap actuator motor |
51 L |
| M2/12 |
Rear shutoff flap actuator motor |
48 L |
| M2/21 |
Rear air distribution flap actuator motor |
63 L |
| M2/5 |
Fresh air/air recirculation flaps actuator motor |
40 L |
| M2/6 |
Left blending air flap actuator |
45 L |
| M2/7 |
Right blending air flap actuator |
42 L |
| M2/8 |
Left defroster vent flap actuator motor |
43 L |
| M2/9 |
Right defroster vent flap actuator motor |
50 L |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
2 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
10 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
20 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
28 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
36 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
44 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
52 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
60 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
68 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
77 A |
| N29/2 |
Booster blower electronic blower controller |
5 L |
| N29/2x1 |
Rear air conditioning electronic blower regulator connector |
7 J |
| R22/3 |
PTC heater booster |
53 L |
| U1010 |
Valid for engine 642.870 BLUETEC |
22 H |
| U1011 |
Valid for engine 642.872 |
18 H |
| U1018 |
Valid for gasoline engine 276 |
18 H |
| U127 |
Valid for engine 272, engine 273 KE |
22 J |
| U151 |
Valid for engine 113 |
10 E |
| U151 |
Valid for engine 113 |
13 F |
| U151 |
Valid for engine 113 |
18 H |
| U151 |
Valid for engine 113 |
76 F |
| U152 |
Valid for engine 156 |
22 H |
| U30 |
Valid for heater booster |
52 E |
| U475 |
Valid for M 272 |
16 F |
| U67 |
Not valid for rear air conditioning |
64 J |
| U67 |
Not valid for rear air conditioning |
64 D |
| U673 |
Valid for comfort AAC [K-KLA] |
75 A |
| U681 |
Valid for all except M113 |
10 F |
| U681 |
Valid for all except M113 |
76 F |
| U880 |
Valid for engine 642 |
16 F |
| U880 |
Valid for engine 642 |
22 H |
| W2 |
Ground (right front, at lamp unit) |
9 H |
| W29/2 |
Ground (right A-pillar) |
2 H |
| W29/2 |
Ground (right A-pillar) |
35 H |
| W52/7 |
Ground (PTC heater booster) |
54 H |
| X122/1 |
Center air outlet connector |
56 H |
| X122/1 |
Center air outlet connector |
68 H |
| X122/2 |
Booster blower connector (air conditioning) |
4 E |
| X122/2 |
Booster blower connector (air conditioning) |
62 H |
| X122/4 |
Cockpit AC connector |
45 E |
| X18 |
Interior/cockpit connector |
8 E |
| X18 |
Interior/cockpit connector |
21 D |
| X18 |
Interior/cockpit connector |
27 E |
| X18 |
Interior/cockpit connector |
31 H |
| X18 |
Interior/cockpit connector |
77 E |
| X18/7 |
Interior/engine connector |
22 K |
| X18/7 |
Interior/engine connector |
22 K |
| X25/2 |
Engine compartment/interior compartment connector |
8 H |
| X25/2 |
Engine compartment/interior compartment connector |
10 H |
| X25/2 |
Engine compartment/interior compartment connector |
13 H |
| X25/2 |
Engine compartment/interior compartment connector |
16 H |
| X25/2 |
Engine compartment/interior compartment connector |
21 G |
| X25/2 |
Engine compartment/interior compartment connector |
26 H |
| X25/2 |
Engine compartment/interior compartment connector |
77 H |
| X26 |
Interior and engine wiring harness connector |
13 J |
| X26 |
Interior and engine wiring harness connector |
16 J |
| X26 |
Interior and engine wiring harness connector |
19 J |
| X26 |
Interior and engine wiring harness connector |
22 K |
| X26/31 |
Engine/engine compartment connector |
18 K |
| X26/32 |
Left front engine compartment/bumper connector |
77 K |
| X30/4 |
Right voltage distributor (CAN) connector |
72 L |
| Z50/37 |
Air conditioner compressor ground connector sleeve |
2 E |
| Z50/37 |
Air conditioner compressor ground connector sleeve |
24 E |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
43 E |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
58 E |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
44 E |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
62 E |
| Z68/5 |
Center ventilator circuit 31 climate control LIN connector sleeve |
59 L |
| Z68/6 |
Center ventilator climate control LIN positive line connector sleeve |
59 L |
| Z68/7 |
Cockpit AC system sensor ground |
30 E |
| Z68/7 |
Cockpit AC system sensor ground |
68 E |
| Z68/9 |
Rear air conditioning blower regulator diagnosis connector sleeve |
5 H |
