Remove/install rear air outlet - AR83.10-P-4800RT

MODEL 251

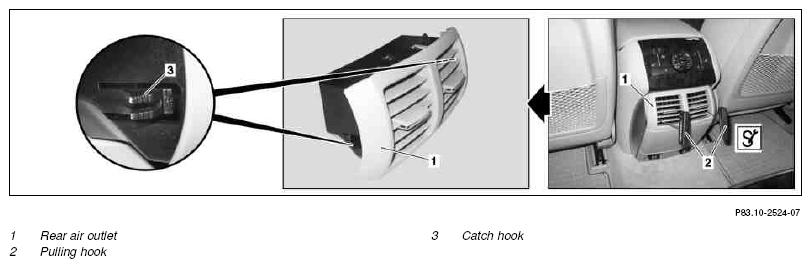

Fig 1: Identifying Rear Air Outlet Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Unlock catch hook (3) from rear air outlet (1) with pulling hook (2)	The catch hooks (3) are located on side left and right in the rear air outlet (1) and are pressed toward inside and unlocked with the aid of the pulling hook (1).
		Pulling hook	Fig 2
2	Pull rear air outlet (1) out of center console with pulling hook (2)	Pulling hook	Fig 2
3	Remove pulling hook (2) from rear air outlet (1)	Pulling hook	Fig 2
	Install
4	Insert rear air outlet (1) into center console and slide toward front until catch hook (3) arrests perceptively.	Ensure that rear air outlet (1) is seated correctly in center console.

Fig 2: Identifying Pulling Hook (140 589 02 33 00)
