Wiring diagram of CAN bus - interior compartment - PE00.19-U-2300-99RAA

MODEL 251 CAN voltage distributor (X30/4, X30/6), sheet 1

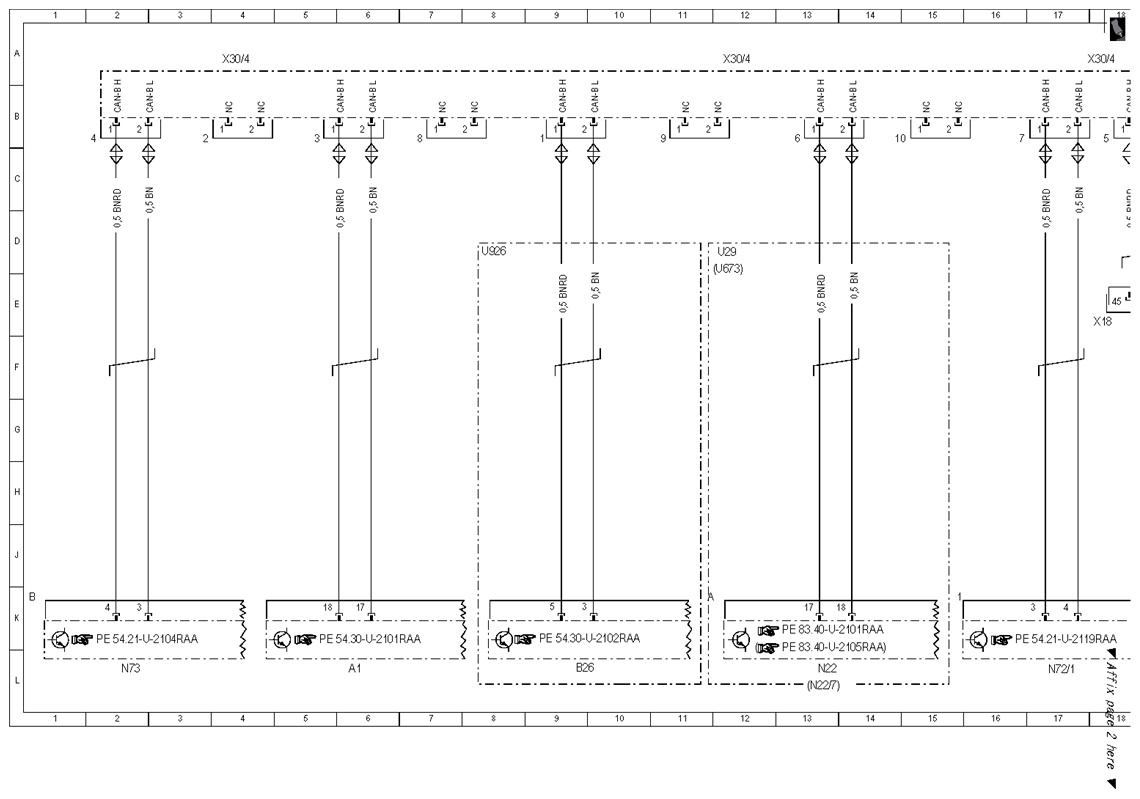

Fig 1: CAN Bus - Engine Wiring Diagram (1 Of 7)

Courtesy of MERCEDES-BENZ USA

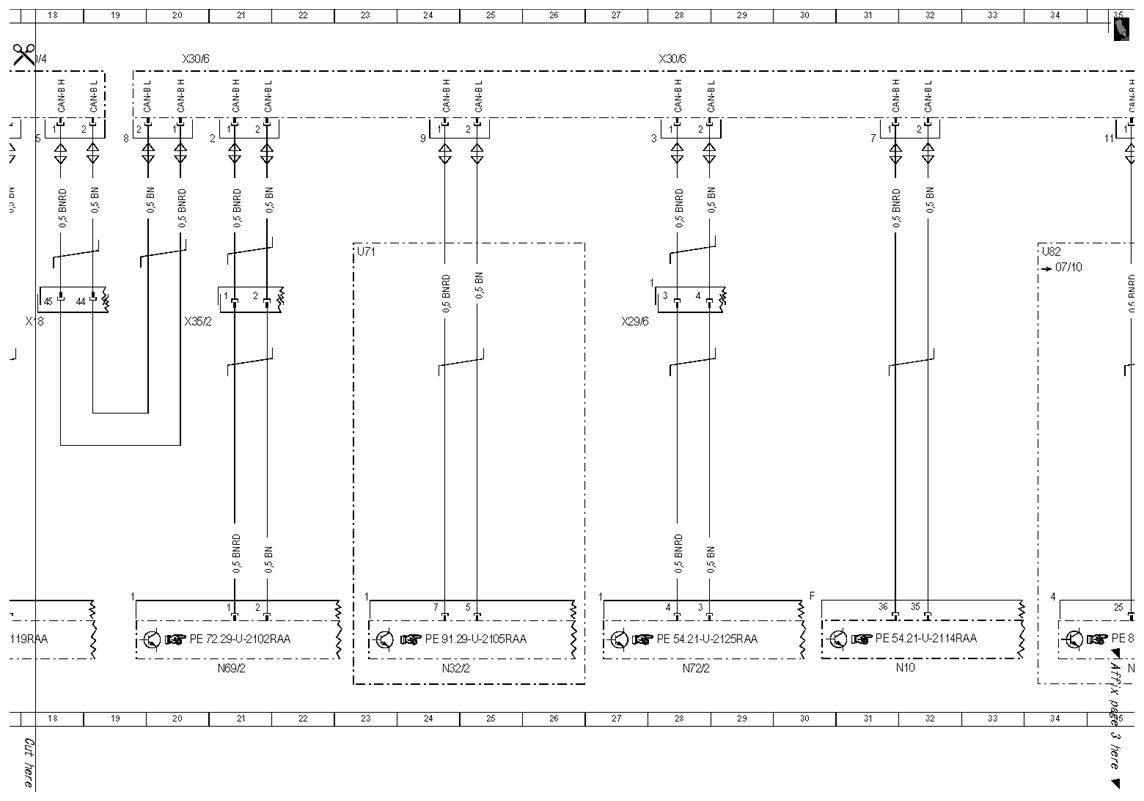

Fig 2: CAN Bus - Engine Wiring Diagram (2 Of 7)

Courtesy of MERCEDES-BENZ USA

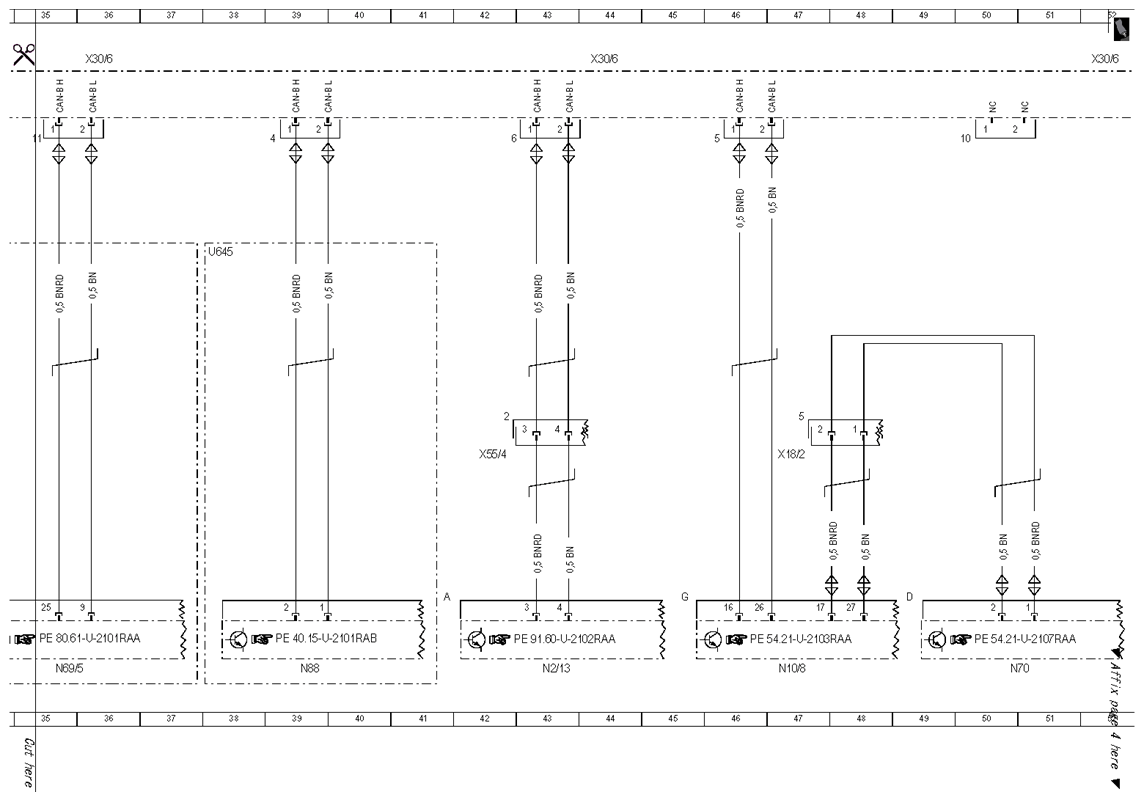

Fig 3: CAN Bus - Engine Wiring Diagram (3 Of 7)

Courtesy of MERCEDES-BENZ USA

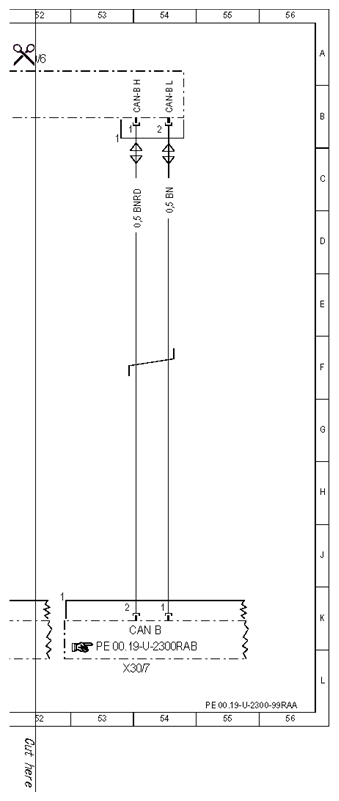

Fig 4: CAN Bus - Engine Wiring Diagram (4 Of 7)

Courtesy of MERCEDES-BENZ USA
