Electric wiring diagram of solder joints/Z connector sleeves - PE00.19-U-2600-99RAC

MODEL 251 Z7/35z1, Z7/35z2, Z7/35z3, Z7/35z4, Z7/36, Z7/98z1, Z7/98z2, Z7/98z3, sheet 3

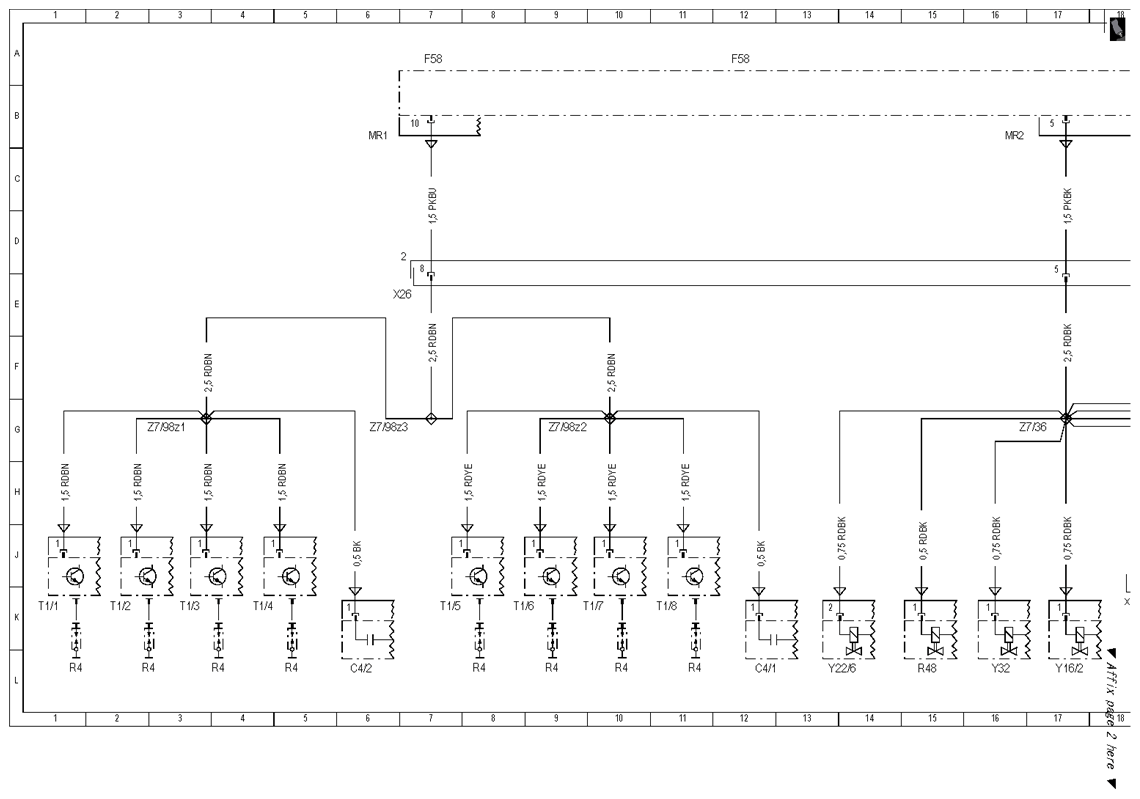

Fig 1: Solder Joints/Z Connector Sleeves Electric Wiring Diagram (6 Of 12)
G10120348Courtesy of MERCEDES-BENZ USA

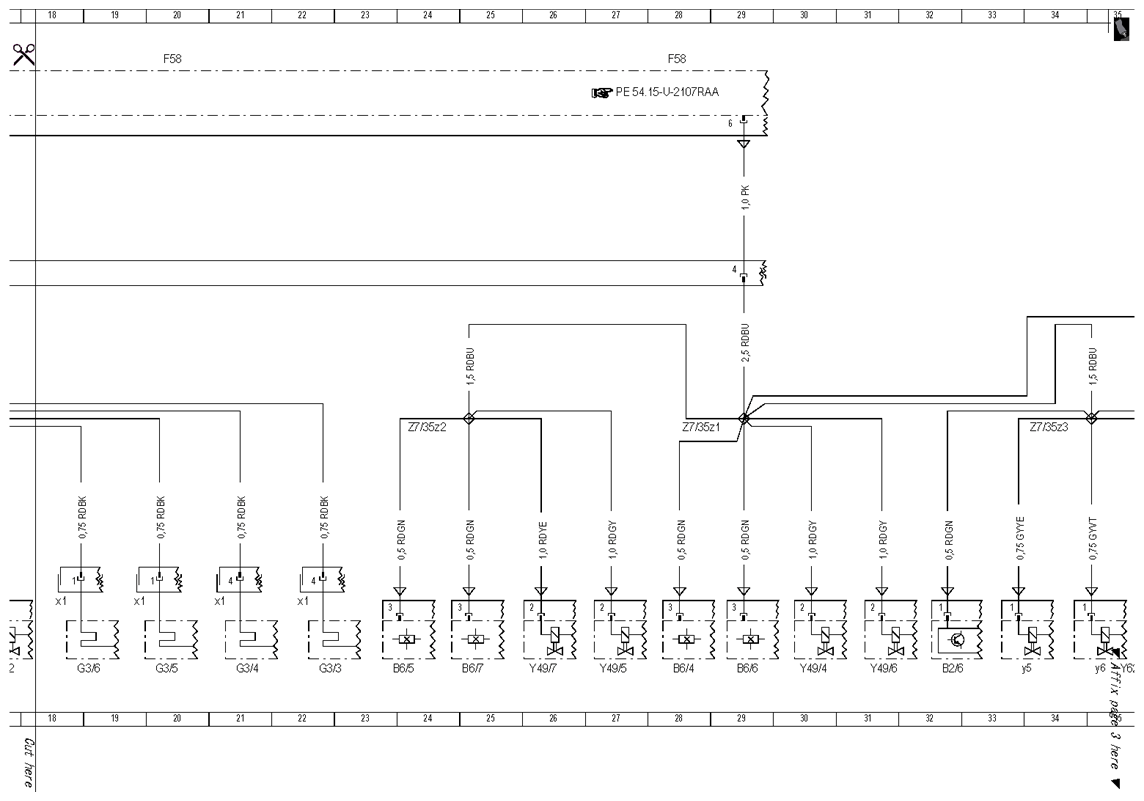

Fig 2: Solder Joints/Z Connector Sleeves Electric Wiring Diagram (7 Of 12)
G10120349Courtesy of MERCEDES-BENZ USA

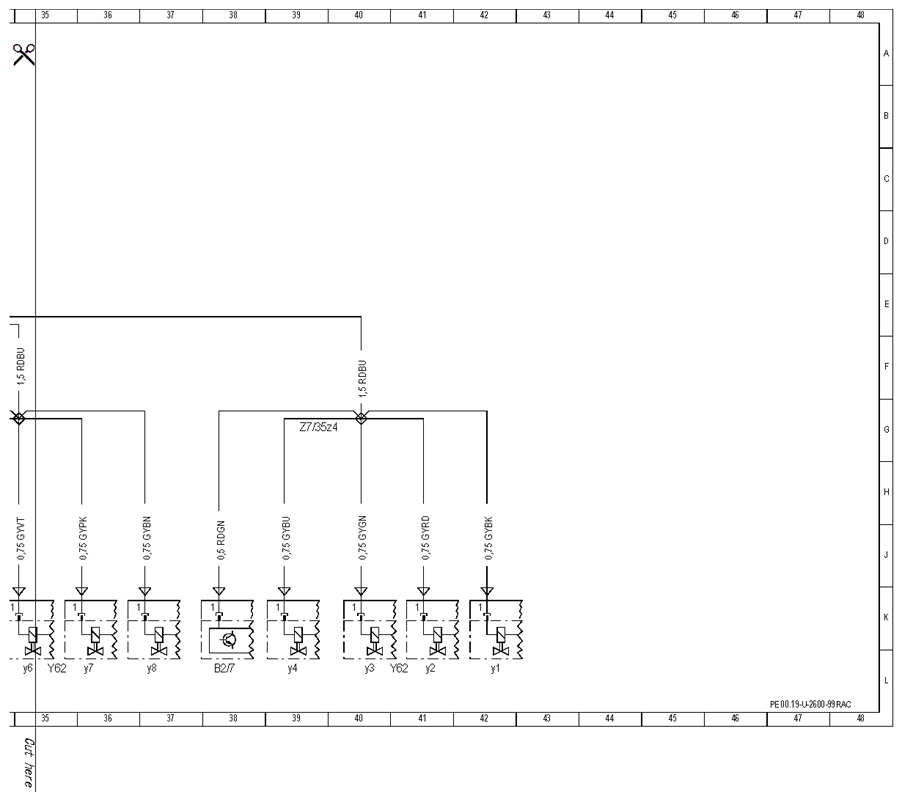

Fig 3: Solder Joints/Z Connector Sleeves Electric Wiring Diagram (8 Of 12)
G10120350Courtesy of MERCEDES-BENZ USA
