Electric wiring diagram of solder joints/Z connector sleeves - PE00.19-U-2600-99RAA

MODEL 251 Z3/29z1, Z3/29z2, Z7/36, Z7/35z1, Z7/35z2, sheet 1

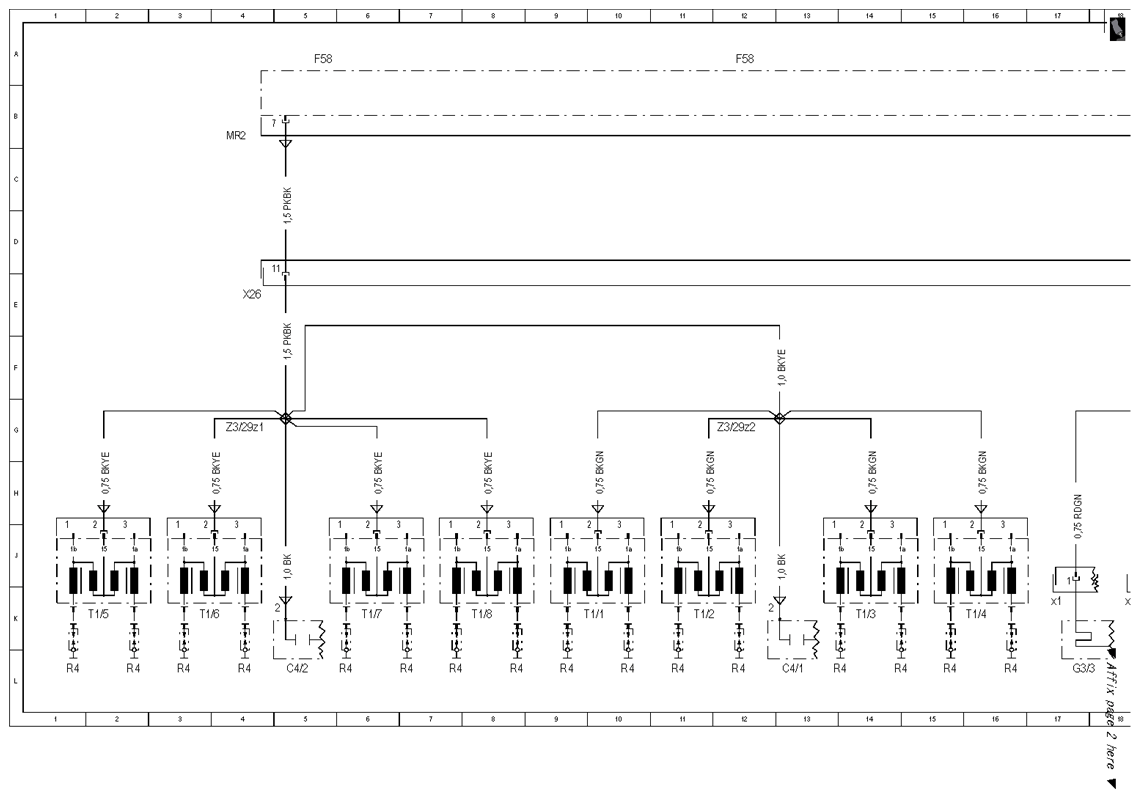

Fig 1: CAN Bus - Interior Compartment Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

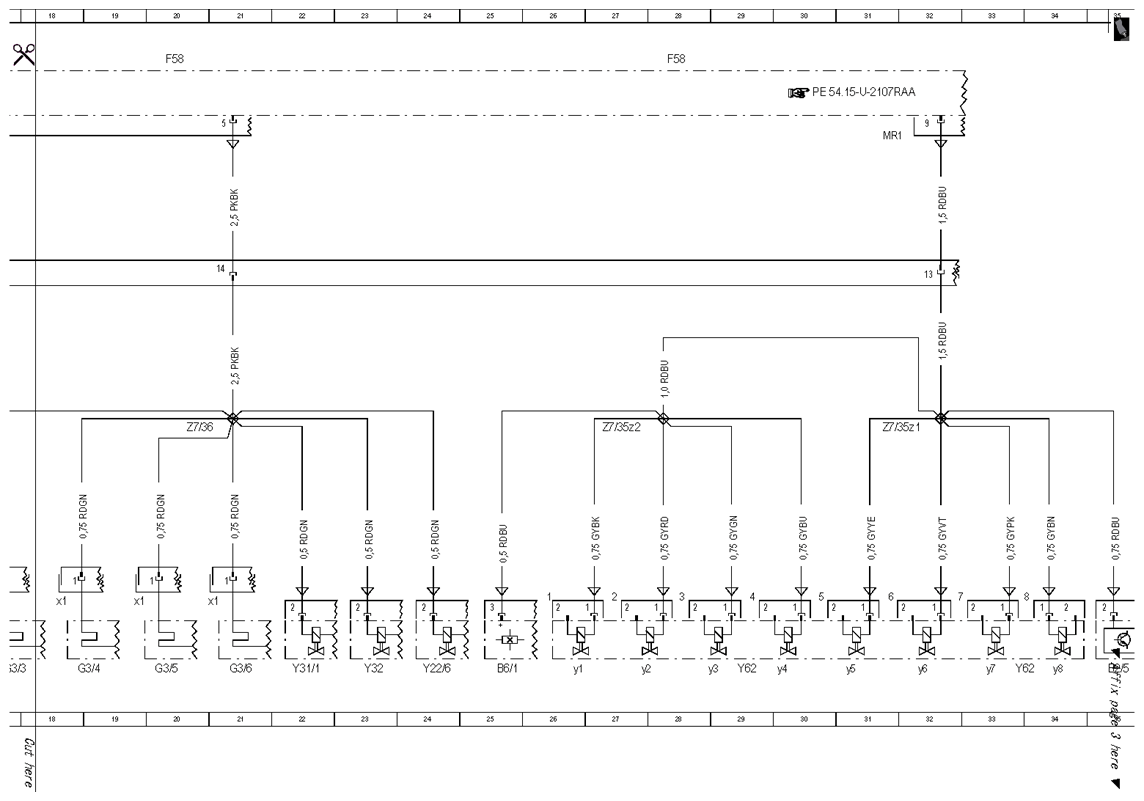

Fig 2: CAN Bus - Interior Compartment Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

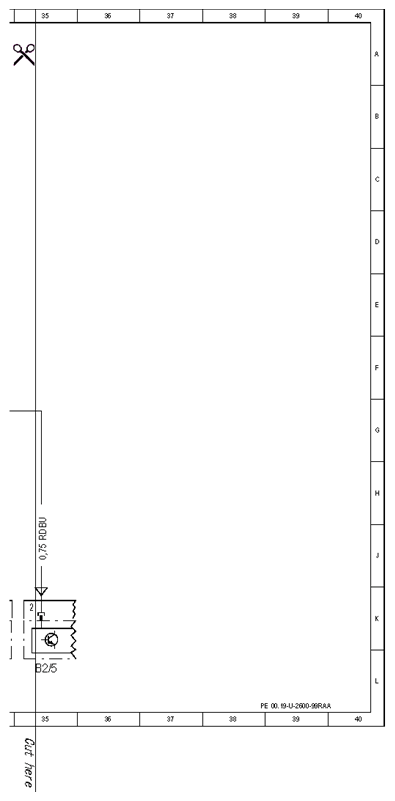

Fig 3: CAN Bus - Interior Compartment Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
