Secure vehicle on lifting platform - AR00.60-P-0100RT
MODEL 251
| Mount/dismantle | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| The vehicle lift safety devices (1) must always be mounted in pairs (i.e. at two positions) at the longitudinal members on the vehicle. The vehicle lift safety devices (1) can be mounted together at the front or together at the rear; they may not be mounted on one side of the vehicle or diagonally on it | |||
| 1 | Remove covers from vehicle lift supports | ||

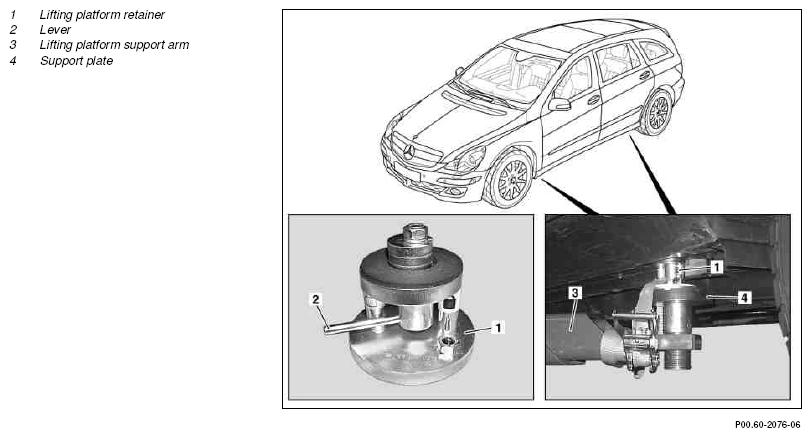

| 2 | Insert lifting platform safety devices (1) into longitudinal members | Fig 2 | |
| 3 | Swivel lever (2) of vehicle lift safety devices (1) to the right until lever (2) is secured | ||
| 4 | Rotate support plate (4) at vehicle lift support arm (3) until it makes contact with the vehicle lift safety devices (1) or with the vehicle lift support of the longitudinal member | ||
| 5 | Raise vehicle with lifting platform | Two-post lift | *WE58.40-Z-1001-05A |
| 6 | Secure vehicle lift safety devices (1) to the vehicle lift support arm (3) using tensioning straps | ||
| 7 | Dismantle in reverse order. |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-05A | Two-post lifting platform |
