Arrangement and assignment of the wiring and plug connectors - GF00.19-U-1000RAA
MODEL 251

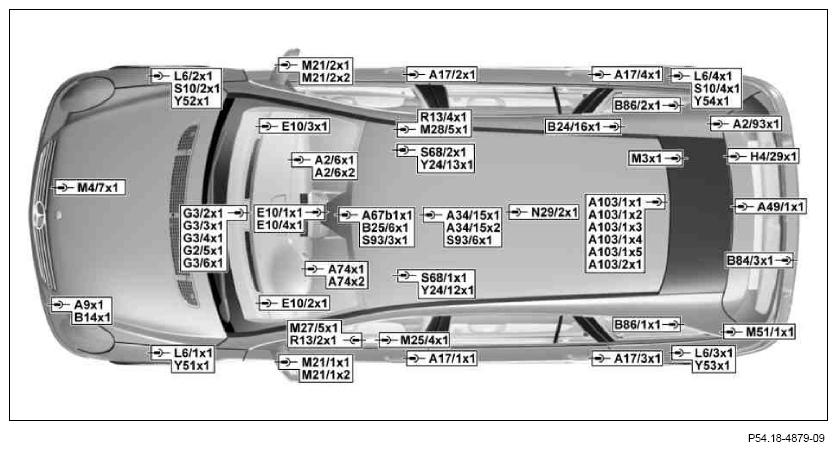

| A17/1x1 | Left front Keyless Go door handle connector | GF00.19-U-1000-04RAA | |
| A17/2x1 | Right front Keyless Go door handle connector | GF00.19-U-1000-05RAA | |
| A17/3x1 | Left rear Keyless Go door handle connector | GF00.19-U-1000-04RAA | |
| A17/4x1 | Right rear Keyless Go door handle connector | GF00.19-U-1000-05RAA | |
| A2/6x1 | CD changer connector 1 | GF00.19-U-1000-03RAA | |
| A2/6x2 | CD changer 2 connector | GF00.19-U-1000-03RAA | |
| A34/15x1 | Connector 1, UPCI [UHI] portable CTEL holder (Universal Handy Interface) | GF00.19-U-1000-05RAA | |
| A34/15x2 | Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface) | GF00.19-U-1000-04RAA | |
| A49/1x1 | Interference filter 1 input connector | GF00.19-U-1000-07RAA | |
| A67b1x1 | Hands-free system microphone group connector | GF00.19-U-1000-03RAA | |
| A74x1 | Steering wheel heater/fanfare horns electronics plug-in connector 1 | GF00.19-U-1000-04RAA | |
| A74x2 | Steering wheel heater/fanfare horns electronics plug-in connector 2 | GF00.19-U-1000-04RAA | |
| A9x1 | AC compressor connector | GF00.19-U-1000-01RAA | |
| A103/1x1 | AdBlue® tank module plug-in connector | GF00.19-U-1000-06RAA | |
| A103/1x2 | Plug-in connectors level sensors AdBlue® tank module | GF00.19-U-1000-06RAA | |
| A103/1x3 | Temperature sensor and heater element AdBlue® tank module plug-in connector | GF00.19-U-1000-06RAA | |
| A103/1x4 | Heater element pressure pipe AdBlue® tank module plug-in connector 2 | GF00.19-U-1000-06RAA | |
| A103/1x5 | Heater element pressure pipe AdBlue® tank module plug-in connector 2 | GF00.19-U-1000-06RAA | |
| A103/2x1 | Plug-in connector AdBlue® transport module | GF00.19-U-1000-06RAA | |
| B24/16x1 | Rear-end door opening angle recognition sensor connector | GF00.19-U-1000-05RAA | |
| B14x1 | Ambient temperature indicator temperature sensor connector | GF00.19-U-1000-01RAA | |
| B25/6x1 | Sound amplifier microphone connector | GF00.19-U-1000-03RAA | |
| B84/3x1 | Backup camera connector | GF00.19-U-1000-06RAA | |
| B86/1x1 | Left rear-end door closing obstruction sensor strip connector | GF00.19-U-1000-06RAA | |
| B86/2x1 | Right rear-end door closing obstruction sensor strip connector | GF00.19-U-1000-07RAA | |
| E10/1x1 | Left center air outlet illumination connector | GF00.19-U-1000-03RAA | |
| E10/2x1 | Left air outlet illumination connector | GF00.19-U-1000-03RAA | |
| E10/3x1 | Right air outlet illumination connector | GF00.19-U-1000-03RAA | |
| E10/4x1 | Right center air outlet illumination | GF00.19-U-1000-03RAA | |
| G3/2x1 | O2 sensor upstream TWC [KAT] connector | GF00.19-U-1000-02RAA | |
| G3/3x1 | Left O2 sensor upstream TWC [KAT] connector | GF00.19-U-1000-04RAA | |
| G3/4x1 | Right O2 sensor upstream TWC [KAT] connector | GF00.19-U-1000-04RAA | |
| G3/5x1 | Left O2 sensor downstream TWC [KAT] connector | GF00.19-U-1000-04RAA | |
| G3/6x1 | Right O2 sensor downstream TWC [KAT] connector | GF00.19-U-1000-04RAA | |
| H4/29x1 | Subwoofer connector | GF00.19-U-1000-07RAA | |
| L6/1x1 | Wheel speed sensor connector | GF00.19-U-1000-01RAA | |
| L6/2x1 | Wheel speed sensor connector | GF00.19-U-1000-02RAA | |
| L6/3x1 | Wheel speed sensor connector | GF00.19-U-1000-06RAA | |
| L6/4x1 | Wheel speed sensor connector | GF00.19-U-1000-07RAA | |
| M3x1 | Fuel pump connector | GF00.19-U-1000-04RAA | |
| M4/7x1 | Engine and AC electric suction fan with integrated control connector 1 | GF00.19-U-1000-02RAA | |
| M21/1x1 | Left electrically adjustable and heated exterior mirror connector | GF00.19-U-1000-04RAA | |
| M21/1x2 | Left electrically adjustable and heated exterior mirror connector | GF00.19-U-1000-04RAA | |
| M21/2x1 | Right electrically adjustable and heated exterior mirror connector | GF00.19-U-1000-05RAA | |
| M21/2x2 | Right electrically adjustable and heated exterior mirror connector | GF00.19-U-1000-05RAA | |
| M51/1x1 | Rear-end door hydraulic pump connector | GF00.19-U-1000-06RAA | |
| M25/4x1 | Driver seat lumbar support pneumatic pump electrical connector | GF00.19-U-1000-04RAA | |
| M27/5x1 | Driver backrest angle adjustment motor connector 1 | GF00.19-U-1000-04RAA | |
| M28/5x1 | Front passenger backrest angle adjustment motor connector 1 | GF00.19-U-1000-05RAA | |
| N29/2x1 | Rear automatic climate control electronic blower regulator connector | GF00.19-U-1000-05RAA | |
| R13/2x1 | Left front backrest heated cushion connector | GF00.19-U-1000-04RAA | |
| R13/4x1 | Right front backrest heater element connector | GF00.19-U-1000-05RAA | |
| S10/2x1 | Right front brake pad contact sensor connector | GF00.19-U-1000-02RAA | |
| S10/4x1 | Right rear brake pad contact sensor connector | GF00.19-U-1000-07RAA | |
| S68/1x1 | Left front seat belt buckle and seat belt warning switch connector | GF00.19-U-1000-04RAA | |
| S68/2x1 | Right front seat belt buckle and seat belt warning switch connector | GF00.19-U-1000-05RAA | |
| S93/3x1 | TELE AID push-button switch connector | GF00.19-U-1000-03RAA | |
| S93/6x1 | MB-Info and tele diagnosis button group connector | GF00.19-U-1000-05RAA | |

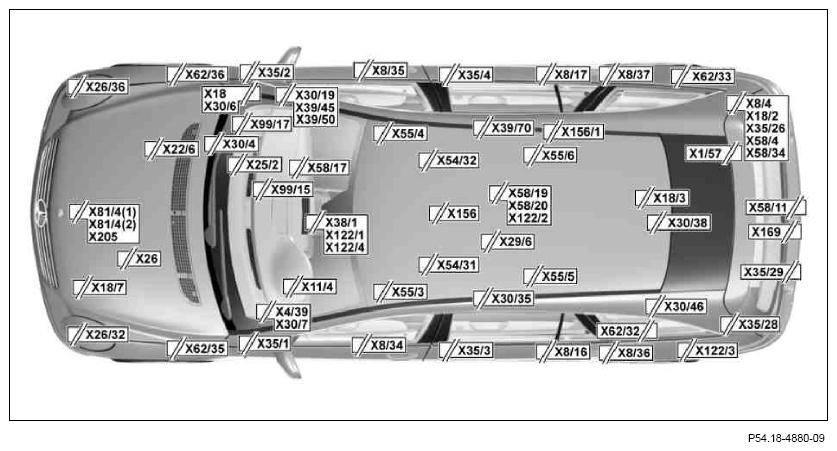

| X1/57 | Separation point for preinstalled subwoofer wiring | GF00.19-U-1000-07RAA | |
| X11/4 | Data link connector | GF00.19-U-1000-03RAA | |
| X122/1 | Center air outlet connector | GF00.19-U-1000-03RAA | |
| X122/2 | Booster blower connector (air conditioning) | GF00.19-U-1000-05RAA | |
| X122/3 | Rear AC connector | GF00.19-U-1000-06RAA | |
| X122/4 | Cockpit AC connector | GF00.19-U-1000-03RAA | |
| X156 | 1st seat row illuminated cup holder separation point | GF00.19-U-1000-05RAA | |
| X156/1 | 2nd seat row illuminated cup holder separation point | GF00.19-U-1000-05RAA | |
| X18 | Interior/cockpit connector | GF00.19-U-1000-03RAA | |
| X18/2 | Interior/roof connector | GF00.19-U-1000-07RAA | |
| X18/3 | Interior/fuel tank connector | GF00.19-U-1000-05RAA | |
| X18/7 | Interior/engine connector | GF00.19-U-1000-01RAA | |
| X205 | Tumble flap/variable intake manifold switchover valves connector | GF00.19-U-1000-01RAA | |
| X22/6 | Automatic transmission/intelligent servo module connector | GF00.19-U-1000-01RAA | |
| X25/2 | Engine compartment/interior compartment connector | GF00.19-U-1000-03RAA | |
| X26 | Interior and engine wiring harness connector | GF00.19-U-1000-01RAA | |
| X26/32 | Left front engine compartment/bumper connector | GF00.19-U-1000-38RAA | |
| X26/36 | Right front engine compartment/bumper connector | GF00.19-U-1000-38RAA | |
| X29/6 | Center console intermediate connector | GF00.19-U-1000-04RAA | |
| X30/19 | Passenger-side voltage distributor (CAN C) connector | GF00.19-U-1000-03RAA | |
| X30/35 | Telematics CAN voltage distributor connector | GF00.19-U-1000-04RAA | |
| X30/38 | Voltage distributor (CAN) connector | GF00.19-U-1000-07RAA | |
| X30/4 | Right voltage distributor (CAN) connector | GF00.19-U-1000-03RAA | |
| X30/6 | Cockpit voltage distributor (CAN) connector | GF00.19-U-1000-03RAA | |
| X30/7 | Voltage distributor (CAN) connector | GF00.19-U-1000-03RAA | |
| X30/38 | Voltage distributor (CAN) connector | GF00.19-U-1000-07RAA | |
| X30/46 | Rear end CAN C potential distributor connector | GF00.19-U-1000-04RAA | |
| X35/1 | Left front door separation point | GF00.19-U-1000-04RAA | |
| X35/2 | Right front door separation point | GF00.19-U-1000-05RAA | |
| X35/26 | PTS, roof warning indicator connector | GF00.19-U-1000-07RAA | |
| X35/28 | PTS connector, rear bumper | GF00.19-U-1000-06RAA | |
| X35/29 | Electrical connection, rear bumper interior blind spot monitoring | GF00.19-U-1000-06RAA | |
| X35/3 | Left rear door separation point | GF00.19-U-1000-04RAA | |
| X35/4 | Right rear door separation point | GF00.19-U-1000-05RAA | |
| X38/1 | Center fill speaker intermediate connector | GF00.19-U-1000-03RAA | |
| X39/45 | Walkman separation point | GF00.19-U-1000-05RAA | |
| X39/50 | Fiber optical cable connector (MOST) | GF00.19-U-1000-03RAA | |
| X39/70 | FFS [RBA} microphone array connector | GF00.19-U-1000-05RAA | |
| X4/39 | Steering column module separation point | GF00.19-U-1000-03RAA | |
| X54/31 | Driver seat external power feed separation point | GF00.19-U-1000-04RAA | |
| X54/32 | Front passenger seat external power feed separation point | GF00.19-U-1000-05RAA | |
| X55/3 | Left front seat contacting strip | GF00.19-U-1000-04RAA | |
| X55/4 | Right front seat contacting strip | GF00.19-U-1000-05RAA | |
| X55/5 | Left 2nd row seat adjustment connector block | GF00.19-U-1000-04RAA | |
| X55/6 | Right second row seat adjustment connector block | GF00.19-U-1000-05RAA | |
| X58/11 | Trailer hitch socket (7-pin) | GF00.19-U-1000-06RAA | |
| X58/17 | Front interior socket | GF00.19-U-1000-03RAA | |
| X58/19 | Left 2nd seat row socket | GF00.19-U-1000-05RAA | |
| X58/20 | Right 2nd seat row socket | GF00.19-U-1000-05RAA | |
| X58/34 | 115 V Socket | GF00.19-U-1000-07RAA | |
| X58/4 | Cargo area socket | GF00.19-U-1000-07RAA | |
| X62/32 | Left rear axle multiple circuit junction connector | GF00.19-U-1000-04RAA | |
| X62/33 | Right rear axle electrical distributor connector | GF00.19-U-1000-05RAA | |
| X62/35 | BWI [BBV]/rpm left front axle connector | GF00.19-U-1000-01RAA | |
| X62/36 | BWI [BBV]/rpm right front axle connector | GF00.19-U-1000-02RAA | |
| X8/16 | Left rear door printed wiring harness connector | GF00.19-U-1000-04RAA | |
| X8/17 | Right rear door printed wiring harness connector | GF00.19-U-1000-05RAA | |
| X8/34 | Left front door handle connector | GF00.19-U-1000-04RAA | |
| X8/35 | Right front door handle connector | GF00.19-U-1000-05RAA | |
| X8/36 | Left rear door handle connector | GF00.19-U-1000-04RAA | |
| X8/37 | Right rear door handle connector | GF00.19-U-1000-05RAA | |
| X8/4 | Rear-end door separation point | GF00.19-U-1000-07RAA | |
| X81/4(1) | Engine wiring harness/throttle valve actuator connector | M156 | GF00.19-U-1000-02RAA |
| X81/4(2) | Engine wiring harness/throttle valve actuator connector | M156 | GF00.19-U-1000-02RAA |
| X99/15 | Airbag separation point | GF00.19-U-1000-03RAA | |
| X99/17 | Kneebag separation point | GF00.19-U-1000-05RAA | |
| X169 | Reversing camera connecting point | GF00.19-U-1000-06RAA | |
| Y24/12x1 | Driver NECK-PRO head restraint solenoid connector | GF00.19-U-1000-04RAA | |
| Y24/13x1 | Front passenger NECK-PRO head restraint solenoid connector | GF00.19-U-1000-05RAA | |
| Y51x1 | Left front axle damping valve unit connector | GF00.19-U-1000-01RAA | |
| Y52x1 | Right front axle damping valve unit connector | GF00.19-U-1000-02RAA | |
| Y53x1 | Damping valve unit connector | GF00.19-U-1000-06RAA | |
| Y54x1 | Damping valve unit connector | GF00.19-U-1000-07RAA | |
| GF00.19-U-1000-01RAA | Arrangement and assignment of the wiring and plug connectors, engine compartment (left) | GF00.19-U-1000-01RAA | |
| GF00.19-U-1000-02RAA | Arrangement and assignment of the wiring and plug connectors, engine compartment (right) | GF00.19-U-1000-02RAA | |
| GF00.19-U-1000-03RAA | Arrangement and assignment of the wiring and plug connectors, interior compartment (cockpit) | GF00.19-U-1000-03RAA | |
| GF00.19-U-1000-04RAA | Arrangement and assignment of the wiring and plug connectors, interior compartment (left) | GF00.19-U-1000-04RAA | |
| GF00.19-U-1000-05RAA | Arrangement and assignment of the wiring and plug connectors, interior compartment (right) | GF00.19-U-1000-05RAA | |
| GF00.19-U-1000-06RAA | Arrangement and assignment of the wiring and plug connectors, trunk (left) | GF00.19-U-1000-06RAA | |
| GF00.19-U-1000-07RAA | Arrangement and assignment of the wiring and plug connections, trunk (right) | GF00.19-U-1000-07RAA | |
| GF00.19-U-1000-38RAA | Arrangement and assignment of the wiring and plug connectors, front bumper | GF00.19-U-1000-38RAA |
