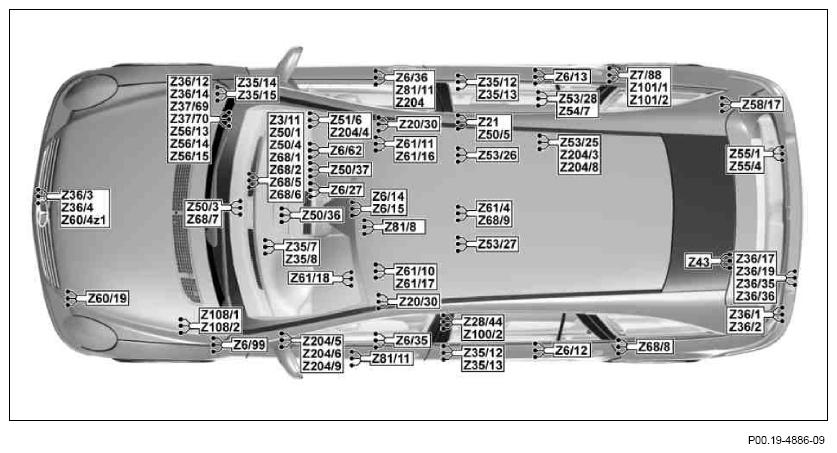

Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - GF00.19-U-3000RAA
MODEL 251

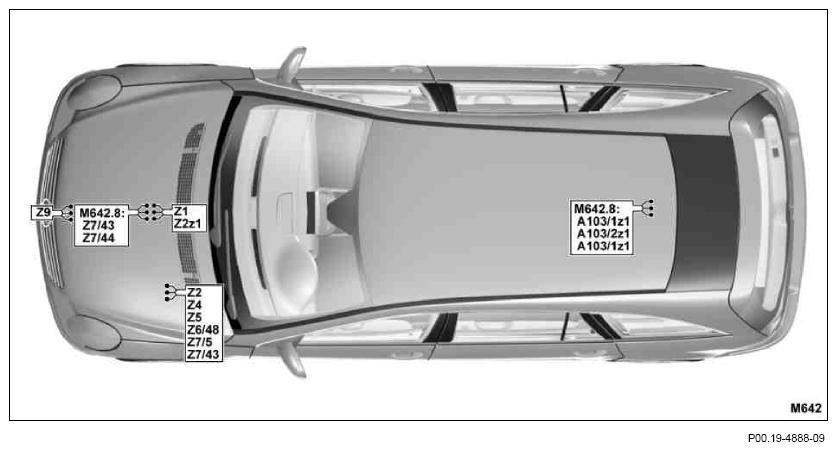

| A103/1z1 | Temperature sensor AdBlue® tank module connector sleeve | M642.8 | GF00.19-U-3000-06RAA |
| A103/2z1 | End sleeve reversing valve AdBlue® transport module | M642.8 | GF00.19-U-3000-06RAA |
| A103/2z2 | Transport modules heater element AdBlue® delivery module connector sleeve | M642.8 | GF00.19-U-3000-06RAA |
| Z1 | Connector sleeve 2 (solder joint in harness) | M642 | GF00.19-U-3000-01RAF |
| Z2 | Circuit TD connector sleeve | M642 | GF00.19-U-3000-01RAF |
| Z2z1 | Circuit TD connector sleeve | M642 | GF00.19-U-3000-01RAF |
| Z3/11 | Circuit 15 (fused) connector sleeve | GF00.19-U-3000-03RAA | |

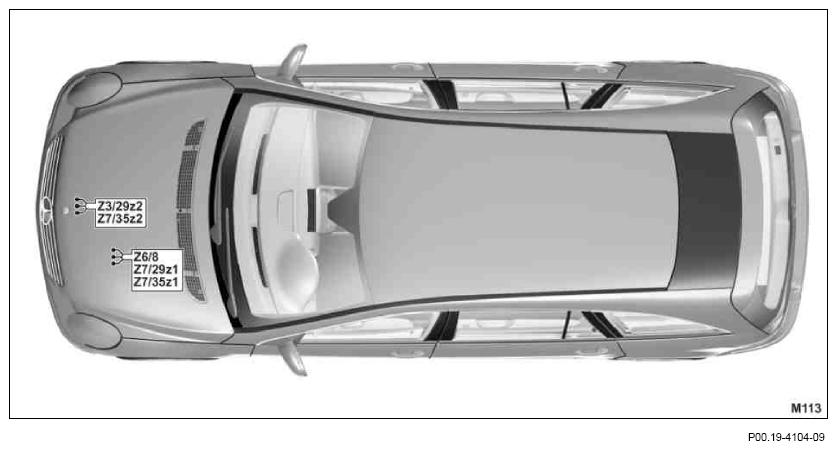

| Z3/29z1 | Circuit 15 connector sleeve (fused) | M113 | GF00.19-U-3000-01RAB |
| Z3/29z2 | Circuit 15 connector sleeve (fused) | M113 | GF00.19-U-3000-01RAB |
| Z4 | Connector sleeve (solder joint in harness) | M642 | GF00.19-U-3000-01RAF |
| Z5 | Connector sleeve (solder joint in harness) | M642 | GF00.19-U-3000-01RAF |

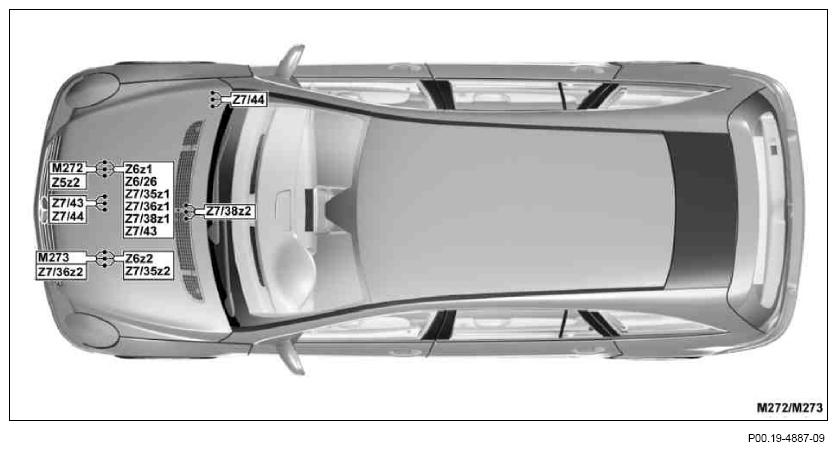

| Z5z2 | Connector sleeve (solder joint in harness) | M272 | GF00.19-U-3000-02RAD |
| Z6z1 | Ground connector sleeve | M272 | GF00.19-U-3000-02RAD |
| Z6z1 | Ground connector sleeve | M273 | GF00.19-U-3000-02RAE |
| Z6z2 | Ground connector sleeve | M272 | GF00.19-U-3000-01RAD |
| Z6z2 | Ground connector sleeve | M273 | GF00.19-U-3000-01RAE |
| Z6/8 | Sensor ground connector sleeve | M113 | GF00.19-U-3000-01RAB |
| Z6/12 | Left rear door ground connector sleeve | GF00.19-U-3000-04RAA | |
| Z6/13 | Right rear door ground connector sleeve | GF00.19-U-3000-05RAA | |
| Z6/14 | Circuit 31 ground connector sleeve (left belt buckle) | GF00.19-U-3000-04RAA | |
| Z6/15 | Circuit 31 ground connector sleeve (right belt buckle) | GF00.19-U-3000-04RAA | |
| Z6/26 | Sensor supply connector sleeve | M272, 09/06 → | GF00.19-U-3000-02RAD |
| Z6/26 | Sensor supply connector sleeve | M273 | GF00.19-U-3000-02RAE |
| Z6/27 | Sensor ground connector sleeve | M113 | GF00.19-U-3000-02RAB |
| Z6/27 | Sensor ground connector sleeve | M156 | GF00.19-U-3000-02RAC |

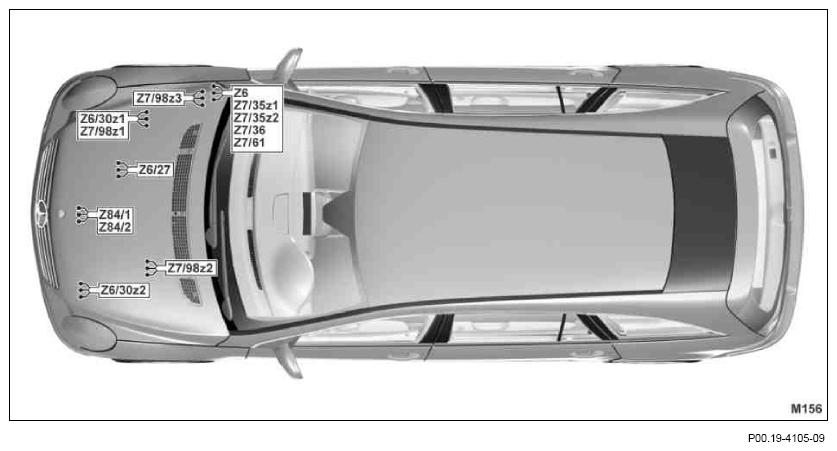

| Z6/30z1 | ME-SFI [ME] diagnostic connector sleeve | M156 | GF00.19-U-3000-02RAC |
| Z6/30z2 | ME-SFI [ME] diagnostic connector sleeve | M156 | GF00.19-U-3000-01RAC |
| Z6/35 | Left front door ground connector sleeve | GF00.19-U-3000-04RAA | |
| Z6/36 | Right front door ground connector sleeve | GF00.19-U-3000-05RAA | |
| Z6/48 | Ground (W2) connector sleeve | M156 | GF00.19-U-3000-02RAC |
| Z6/48 | Ground (W2) connector sleeve | M642 | GF00.19-U-3000-01RAF |
| Z6/62 | Circuit 31 connector sleeve (ECE) | GF00.19-U-3000-05RAA | |
| Z6/99 | Transmission circuit 31 connector sleeve | GF00.19-U-3000-01RAA | |
| Z7/5 | Circuit 87 connector sleeve | M642 | GF00.19-U-3000-01RAF |
| Z7/35z1 | Circuit 87M1e connector sleeve | M113 | GF00.19-U-3000-01RAB |
| Z7/35z1 | Circuit 87M1e connector sleeve | M156 | GF00.19-U-3000-02RAC |
| Z7/35z1 | Circuit 87M1e connector sleeve | M272 | GF00.19-U-3000-02RAD |
| Z7/35z1 | Circuit 87M1e connector sleeve | M273 | GF00.19-U-3000-02RAE |
| Z7/35z2 | Circuit 87M1e connector sleeve | M113 | GF00.19-U-3000-01RAB |
| Z7/35z2 | Circuit 87M1e connector sleeve | M156 | GF00.19-U-3000-02RAC |
| Z7/35z2 | Circuit 87M1e connector sleeve | M272 | GF00.19-U-3000-01RAD |
| Z7/35z2 | Circuit 87M1e connector sleeve | M273 | GF00.19-U-3000-01RAE |
| Z7/35z3 | Circuit 87M1e connector sleeve | M156 | GF00.19-U-3000-01RAC |
| Z7/35z4 | Circuit 87M1e connector sleeve | M156 | GF00.19-U-3000-02RAC |
| Z7/36 | Circuit 87M2e connector sleeve | M156 | GF00.19-U-3000-02RAC |
| Z7/36z1 | Circuit 87M2e connector sleeve | M272 | GF00.19-U-3000-02RAD |
| Z7/36z1 | Circuit 87M2e connector sleeve | M273 | GF00.19-U-3000-02RAE |
| Z7/36z2 | Circuit 87M2e connector sleeve | M273 | GF00.19-U-3000-01RAE |
| Z7/38z1 | Circuit 87 M1i connector sleeve | M273 | GF00.19-U-3000-02RAE |
| Z7/38z2 | Circuit 87 M1i connector sleeve | M272 | GF00.19-U-3000-02RAD |
| Z7/38z2 | Circuit 87 M1i connector sleeve | M273 | GF00.19-U-3000-01RAE |
| Z7/38z3 | Circuit 87 M1i connector sleeve | M156 | GF00.19-U-3000-01RAC |
| Z7/43 | Sensor ground connector sleeve | M272 | GF00.19-U-3000-02RAD |
| Z7/43 | Sensor ground connector sleeve | M273 | GF00.19-U-3000-02RAE |
| Z7/43 | Sensor ground connector sleeve | M642 | GF00.19-U-3000-01RAF |
| Z7/44 | Sensor ground connector sleeve | M272 | GF00.19-U-3000-02RAD |
| Z7/44 | Sensor ground connector sleeve | M273 | GF00.19-U-3000-02RAE |
| Z7/61 | 5V output 2 connector sleeve | M156 | GF00.19-U-3000-02RAC |
| Z7/88 | Fuel pump control unit circuit 30 connector sleeve | GF00.19-U-3000-07RAA | |
| Z7/98z1 | Circuit 87 M3e connector sleeve | GF00.19-U-3000-02RAC | |
| Z7/98z2 | Circuit 87 M3e connector sleeve | GF00.19-U-3000-01RAC | |
| Z7/98z3 | Circuit 87 M3e connector sleeve | GF00.19-U-3000-02RAC | |
| Z9 | Connector sleeve 1 | M642 | GF00.19-U-3000-01RAF |
| Z21 | Front rotary tumbler switch connector sleeve | GF00.19-U-3000-05RAA | |
| Z28/44 | Antenna actuation connector sleeve | GF00.19-U-3000-04RAA | |
| Z35/7 | CAN databus junction (high) (cockpit) | GF00.19-U-3000-03RAA | |
| Z35/8 | CAN databus junction (low) (cockpit) | GF00.19-U-3000-03RAA | |
| Z35/12 | CAN D low connector sleeve | GF00.19-U-3000-06RAA | |
| Z35/13 | CAN D high connector sleeve | GF00.19-U-3000-06RAA | |
| Z35/14 | CAN-C high engine compartment connector sleeve | GF00.19-U-3000-02RAA | |
| Z35/15 | CAN-C high engine compartment connector sleeve | GF00.19-U-3000-02RAA | |
| Z36/1 | Rear PTS sensor ground connector sleeve | GF00.19-U-3000-06RAA | |
| Z36/2 | Rear PTS sensor voltage supply connector sleeve | GF00.19-U-3000-06RAA | |
| Z36/3 | Front PTS sensor ground connector sleeve | GF00.19-U-3000-20RAA | |
| Z36/4 | Front PTS sensor voltage supply connector sleeve | GF00.19-U-3000-20RAA | |
| Z36/12 | Headlamp range adjustment (HRA [LWR]) control bus connector sleeve | GF00.19-U-3000-02RAA | |
| Z36/14 | Static headlamp range adjustment signal connector sleeve | GF00.19-U-3000-02RAA | |
| Z36/17 | Rear sensor CAN connector sleeve | GF00.19-U-3000-06RAA | |
| Z36/19 | Rear sensor CAN connector sleeve | GF00.19-U-3000-06RAA | |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | GF00.19-U-3000-06RAA | |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | GF00.19-U-3000-06RAA | |
| Z37/69 | Dynamic CAN bus (high) connector sleeve | GF00.19-U-3000-02RAA | |
| Z37/70 | Dynamic CAN bus (low) connector sleeve | GF00.19-U-3000-02RAA | |
| Z43 | Rear window defrost connector sleeve | GF00.19-U-3000-06RAA | |
| Z50/1 | Cockpit connector sleeve (circuit 58d) | GF00.19-U-3000-03RAA | |
| Z50/3 | Circuit 31 cockpit connector sleeve (1, left) | GF00.19-U-3000-03RAA | |
| Z50/4 | Circuit 31 cockpit connector sleeve (2, right) | GF00.19-U-3000-03RAA | |
| Z50/5 | Circuit 15 connector sleeve | GF00.19-U-3000-05RAA | |
| Z50/36 | Circuit 31 (4) cockpit connector sleeve) | GF00.19-U-3000-03RAA | |
| Z50/37 | Air conditioner compressor ground connector sleeve | GF00.19-U-3000-03RAA | |
| Z51/6 | Interior connector sleeve (circuit 58d) | GF00.19-U-3000-05RAA | |
| Z53/25 | UPCI [UHI] circuit 30 interior compartment solder point | GF00.19-U-3000-05RAA | |
| Z53/26 | Telematics circuit 31 interior solder point 1 | GF00.19-U-3000-05RAA | |
| Z53/27 | TV amplifier supply | GF00.19-U-3000-04RAA | |
| Z54/7 | Footwell lamps connector sleeve | GF00.19-U-3000-05RAA | |
| Z55/1 | Circuit 31 rear-end door connector sleeve | GF00.19-U-3000-07RAA | |
| Z55/4 | Rear-end door warning lamp terminal connector | GF00.19-U-3000-07RAA | |
| Z56/13 | Left rear air suspension valve engine compartment solder point | GF00.19-U-3000-02RAA | |
| Z56/14 | Right rear air suspension valve engine compartment solder point | GF00.19-U-3000-02RAA | |
| Z56/15 | Rear air suspension valve engine compartment solder point (-) | GF00.19-U-3000-02RAA | |
| Z58/17 | Circuit 58 trailer socket solder point | GF00.19-U-3000-07RAA | |
| Z60/4z1 | Foglamp wiring harness connector sleeve (circuit 31) | GF00.19-U-3000-20RAA | |
| Z60/19 | Daytime running light connector sleeve, circuit 31 | GF00.19-U-3000-20RAA | |
| Z61/4 | Front center console circuit 31 connector sleeve | GF00.19-U-3000-04RAA | |
| Z61/10 | Driver seat backrest/head restraint motor connector sleeve | GF00.19-U-3000-04RAA | |
| Z61/11 | Front passenger seat backrest/head restraint motor connector sleeve | GF00.19-U-3000-05RAA | |
| Z61/16 | Convenience relay circuit 30 connector sleeve | GF00.19-U-3000-05RAA | |
| Z61/17 | Convenience relay circuit 31 connector sleeve | GF00.19-U-3000-04RAA | |
| Z61/18 | Driver seat circuit 15R connector sleeve | GF00.19-U-3000-04RAA | |
| Z68/1 | AC-LIN bus ground (-) COC | GF00.19-U-3000-03RAA | |
| Z68/2 | AC-LIN bus Ub (+) COC | GF00.19-U-3000-03RAA | |
| Z68/5 | AC-LIN bus ground (-) center vent | GF00.19-U-3000-03RAA | |
| Z68/6 | AC-LIN bus Ub (+) center vent | GF00.19-U-3000-03RAA | |
| Z68/7 | Cockpit AC system sensor ground | GF00.19-U-3000-03RAA | |
| Z68/8 | Rear air conditioning sensor ground connector sleeve | GF00.19-U-3000-06RAA | |
| Z68/9 | Rear air conditioning blower regulator diagnosis connector sleeve | GF00.19-U-3000-05RAA | |
| Z81/8 | Front center console circuit 58d connector sleeve | GF00.19-U-3000-04RAA | |
| Z81/11 | Front passenger circuit 58d connector sleeve | GF00.19-U-3000-06RAA | |
| Z84/1 | Throttle valve actuator connector sleeve (+ signal) | M156 | GF00.19-U-3000-02RAC |
| Z84/2 | Throttle valve actuator connector sleeve (- signal) | M156 | GF00.19-U-3000-02RAC |
| Z100/2 | Wake-up signal connector sleeve | GF00.19-U-3000-04RAA | |
| Z101/1 | Pulse width module fuel pump connector sleeve | GF00.19-U-3000-07RAA | |
| Z101/2 | Fuel pump connector sleeve | GF00.19-U-3000-07RAA | |
| Z108/1 | Circuit 31 washer nozzle heater connector sleeve | GF00.19-U-3000-01RAA | |
| Z108/2 | Washer nozzle heater signal connector sleeve | GF00.19-U-3000-01RAA | |
| Z204 | Wake-up signal/circuit 58d voltage distributor connector | GF00.19-U-3000-05RAA | |
| Z204/3 | Circuit 31 right rear seat voltage distributor connector | GF00.19-U-3000-05RAA | |
| Z204/4 | Circuit 31 right footwell voltage distributor connector | GF00.19-U-3000-05RAA | |
| Z204/5 | Circuit 31 left footwell voltage distributor connector (1) | GF00.19-U-3000-04RAA | |
| Z204/6 | Circuit 31 left rear seat voltage distributor connector (1) | GF00.19-U-3000-04RAA | |
| Z204/8 | Circuit 31 left rear seat voltage distributor connector (2) | GF00.19-U-3000-05RAA | |
| Z204/9 | Circuit 31 left rear seat voltage distributor connector (3) | GF00.19-U-3000-04RAA | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | GF00.19-U-3000-01RAA | ||
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | Engine 113 in Type 251 | GF00.19-U-3000-01RAB | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | ENGINE 156 in MODEL 251 | GF00.19-U-3000-01RAC | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | Engine 272 in Type 251 | GF00.19-U-3000-01RAD | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | Engine 273 in Type 251 | GF00.19-U-3000-01RAE | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | Engine 642 in Type 251 | GF00.19-U-3000-01RAF | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (right) | GF00.19-U-3000-02RAA | ||
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (right) | Engine 113 in Type 251 | GF00.19-U-3000-02RAB | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (right) | Engine 156 in Type 251 | GF00.19-U-3000-02RAC | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (right) | Engine 272 in Type 251 | GF00.19-U-3000-02RAD | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (right) | Engine 273 in Type 251 | GF00.19-U-3000-02RAE | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - cockpit | GF00.19-U-3000-03RAA | ||
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - interior compartment (left) | GF00.19-U-3000-04RAA | ||
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - interior compartment (right) | GF00.19-U-3000-05RAA | ||
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - trunk (left) | GF00.19-U-3000-06RAA | ||
| Arrangement and assignment of Z end connectors (connectors in harness) in right of trunk | GF00.19-U-3000-07RAA | ||
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - front bumpers | GF00.19-U-3000-20RAA |
