Location of line connections and connectors, interior compartment, right - GF00.19-P-1001-05RAA

Model 251 except code 409 (Left/right front multicontour seat)

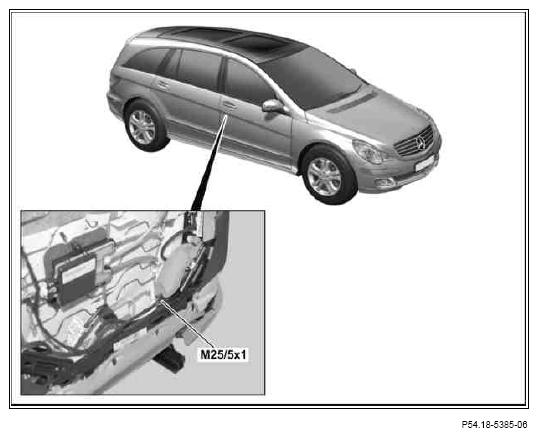

Fig 1: Right Interior Compartment Connectors And Line Connections Location

Courtesy of MERCEDES-BENZ USA
