Location and assignment of line and plug connectors, trunk, left - GF00.19-P-1000-06RAA

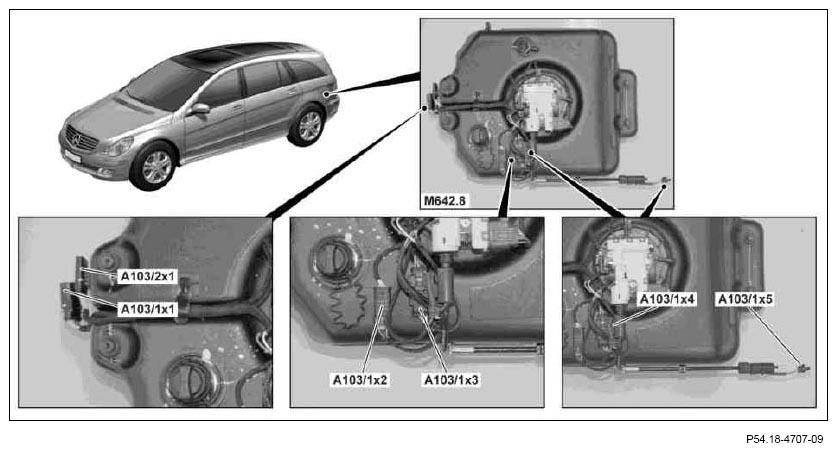

Fig 1: Left Trunk Plug Connectors Location (1 Of 5)
G07005107Courtesy of MERCEDES-BENZ USA

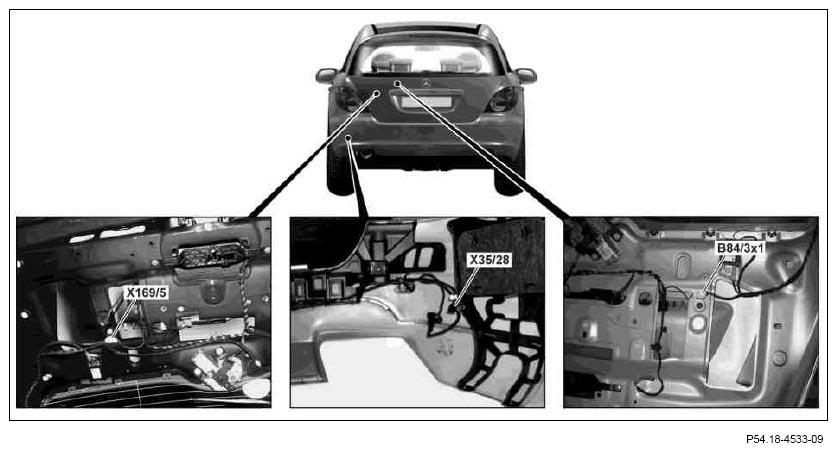

Fig 2: Left Trunk Plug Connectors Location (2 Of 5)
G07005108Courtesy of MERCEDES-BENZ USA

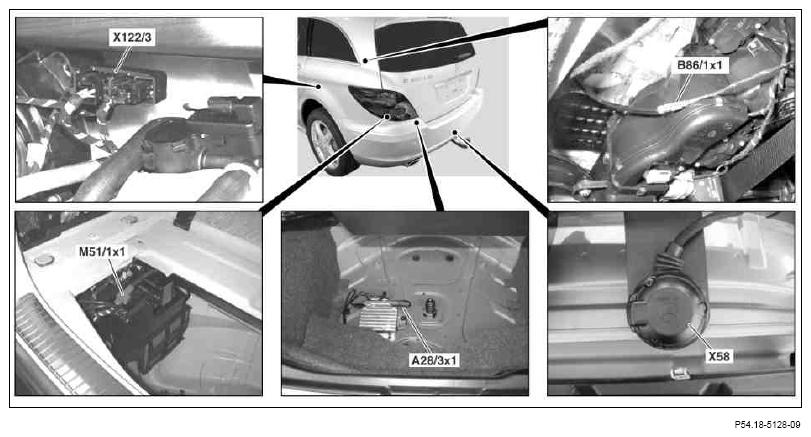

Fig 3: Left Trunk Plug Connectors Location (3 Of 5)
G10120246Courtesy of MERCEDES-BENZ USA

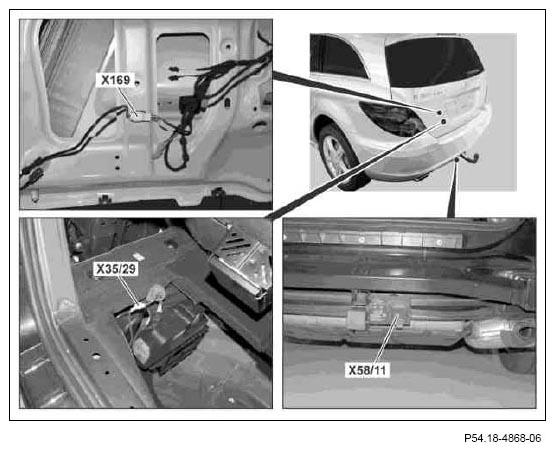

Fig 4: Left Trunk Plug Connectors Location (4 Of 5)
G07005110Courtesy of MERCEDES-BENZ USA

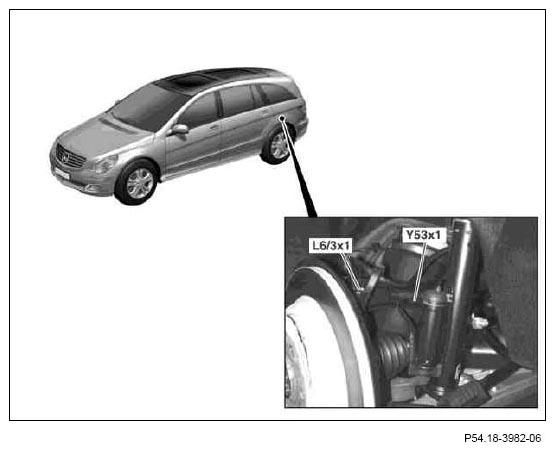

Fig 5: Left Trunk Plug Connectors Location (5 Of 5)
G07005111Courtesy of MERCEDES-BENZ USA
Code Designation Line colors Line colors Notes
A28/3x1 E-net compensator connector PLUG 1 SOCKET RDWH
PLUG 2 SOCKET BN
PLUG 3 SOCKET GYWH
M642.8
A103/1x1 Connector/AdBlue® tank module BU PLUG 1 SOCKET BU
RD PLUG 2 SOCKET RDBU
BU PLUG 3 SOCKET BU
RD PLUG 4 SOCKET RDBU
RD PLUG 5 SOCKET BU
RD PLUG 6 SOCKET RDBU
WH PLUG 7 SOCKET RDBU
WH PLUG 8 SOCKET GYWH
WH PLUG 9 SOCKET GYBU
WH PLUG 10 SOCKET GYBK
M642.8
A103/1x2 Connector/fill level sensors for AdBlue® tank module WH PLUG 1 SOCKET GY
WH PLUG 2 SOCKET RD
WH PLUG 3 SOCKET BU
WH PLUG 4 SOCKET YE
M642.8
A103/1x3 Connector/temperature sensor and heating element for AdBlue® tank module BU PLUG 1 SOCKET BU
RD PLUG 2 SOCKET RD
RD PLUG 3 SOCKET WH
PLUG 4 SOCKET WH
M642.8
A103/1x4 Connector 1/heating element of pressure line for AdBlue® tank module BKRD PLUG 1 SOCKET RD
BKRD 2 X BU
M642.8
A103/1x5 Connector 2/heating element of pressure line for AdBlue® tank module BKRD PLUG X SOCKET BKRD
BKRD PLUG S SOCKET BKRD
M642.8
A103/2x1 Connector/AdBlue® delivery module WH PLUG 1 SOCKET BKYE
WH PLUG 2 SOCKET BUBK
WH PLUG 3 SOCKET BUBK
WH PLUG 4 SOCKET BNYE
WH PLUG 5 SOCKET BU
WH PLUG 6 SOCKET WH
WH PLUG 7 SOCKET GNWH
WH PLUG 8 SOCKET BNGN
B84/3x1 Backup camera connector
  except Japan PLUG 1 SOCKET BN
PLUG 2 SOCKET BK
PLUG 3 SOCKET TR
PLUG 3 SOCKET YE
B84/3x1 Backup camera connector
  Japan PLUG 1 SOCKET BK
PLUG 2 SOCKET BN
PLUG 3 SOCKET TR
PLUG 3 SOCKET YE
B86/1x1 Left rear-end door closing obstruction sensor strip connector PLUG 1 SOCKET WHBU
PLUG 2 SOCKET GNBU
L6/3x1 Rpm sensor connector   1
2
M51/1x1 Rear-end door hydraulic pump connector PLUG 1 SOCKET RDWH up to 12/06
PLUG 2 SOCKET YEWH up to 12/06
PLUG 3 SOCKET GY 01/07-07/08
PLUG 4 SOCKET RDBU 01/07-07/08
PLUG 1 SOCKET GY As of 08/08
PLUG 2 SOCKET RDBU As of 08/08
X35/28 PTS, rear bumper connector PKWH PLUG 1 SOCKET PKWH PTS
VTWH PLUG 2 SOCKET VTWH
RDWH PLUG 3 SOCKET RDWH
OG PLUG 4 SOCKET OG
BN PLUG 5 SOCKET BN
YEWH PLUG 6 SOCKET YEWH
X35/29 Rear bumper interior blind-spot monitoring electrical connector PKRD PLUG 4.1 SOCKET BKBU Blind Spot Assist
VTWH PLUG 4.2 SOCKET GNWH Blind Spot Assist
VT PLUG 4.3 SOCKET GN Blind Spot Assist
BNBK PLUG 4.4 SOCKET BN Blind Spot Assist
X58 Trailer hitch socket (13-pin) PLUG 1 SOCKET BKWH
PLUG 2 SOCKET BUWH up to 08/06
PLUG 2 SOCKET GYGN as of 09/06
PLUG 3 SOCKET BK
PLUG 4 SOCKET BNWH up to 08/06
PLUG 4 SOCKET BKGN as of 09/06
PLUG 5 SOCKET GYWH up to 08/06
PLUG 5 SOCKET GYRD as of 09/06
PLUG 6 SOCKET GNWH up to 08/06
PLUG 6 SOCKET BKRD as of 09/06
PLUG 7 SOCKET PKWH up to 08/06
PLUG 7 SOCKET GYBK as of 09/06
PLUG 8 SOCKET VTWH up to 08/06
PLUG 8 SOCKET GYYE as of 09/06
PLUG 9 SOCKET RD except USA
PLUG 10 SOCKET BK Up to 08/06, except USA
PLUG 10 SOCKET PK As of 09/06, except USA
PLUG 11 SOCKET BN
13 SOCKET BN
X58/11 Trailer hitch socket (7-pin)   1   SOCKET Trailer hitch USA
PLUG 2 SOCKET BKGN Trailer hitch USA
PLUG 3 SOCKET GYYE Trailer hitch USA
PLUG 4 SOCKET RD Trailer hitch USA
PLUG 5 SOCKET GYBK Trailer hitch USA
  6   Trailer hitch USA
  7   Trailer hitch USA
PLUG 8 SOCKET bn Trailer hitch USA
  9   Trailer hitch USA
PLUG 10 SOCKET BKWH Trailer hitch USA
X122/3 Rear AC connector BN PLUG 1.1 SOCKET YEBK
PLUG 1.2 SOCKET BKBU
RD PLUG 1.3 SOCKET GYBU
OG PLUG 1.4 SOCKET GYWH up to 08/06
OG PLUG 1.4 SOCKET GNBU as of 09/06
  1.5
PLUG 1.6 SOCKET bn
GY PLUG 1.7 SOCKET GY up to 08/06
GN PLUG 1.8 SOCKET BK
PLUG 1.9 SOCKET GYWH
BN PLUG 1.10 SOCKET bn up to 08/06
BN PLUG 2.1 SOCKET bn
RD PLUG 2.2 SOCKET RD
OG PLUG 2.3 SOCKET GNBU
BU PLUG 2.4 SOCKET WHBK
X169 Reversing camera connecting point BN PLUG 1.1 SOCKET bn Reversing camera, as of 08/10
RDBK PLUG 1.2 SOCKET RDBK Reversing camera, as of 08/10
WHBK PLUG 1.3 SOCKET WHBK Reversing camera, as of 08/10
X169/5 Interior/cockpit backup camera separation point TR PLUG 1 SOCKET TR Up to 07/08
TR PLUG 2 SOCKET TR Up to 07/08
Y53x1 Damping valve unit connector PLUG 1 SOCKET WHBU
PLUG 2 SOCKET OG
PLUG 3 SOCKET WH
