Location and assignment of line and plug connectors, interior compartment, right - GF00.19-P-1000-05RAA

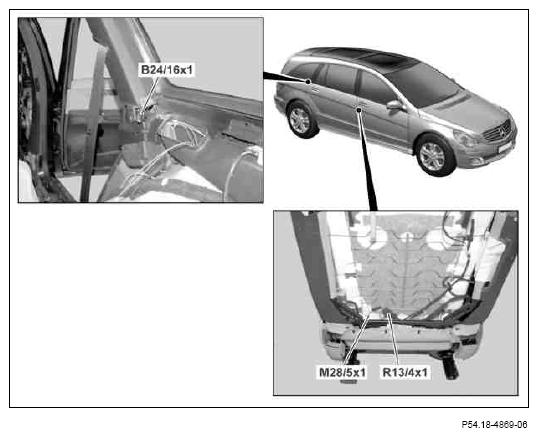

Fig 1: Right Interior Compartment Plug Connectors Location (1 Of 7)
G10120237Courtesy of MERCEDES-BENZ USA

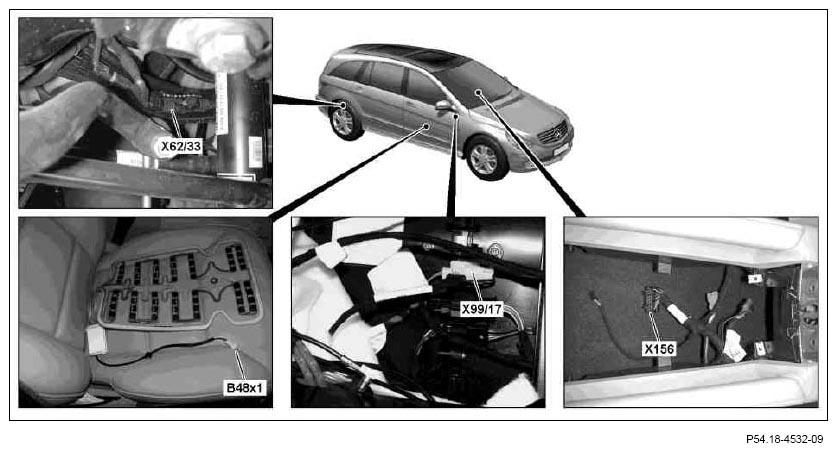

Fig 2: Right Interior Compartment Plug Connectors Location (2 Of 7)
G07005101Courtesy of MERCEDES-BENZ USA

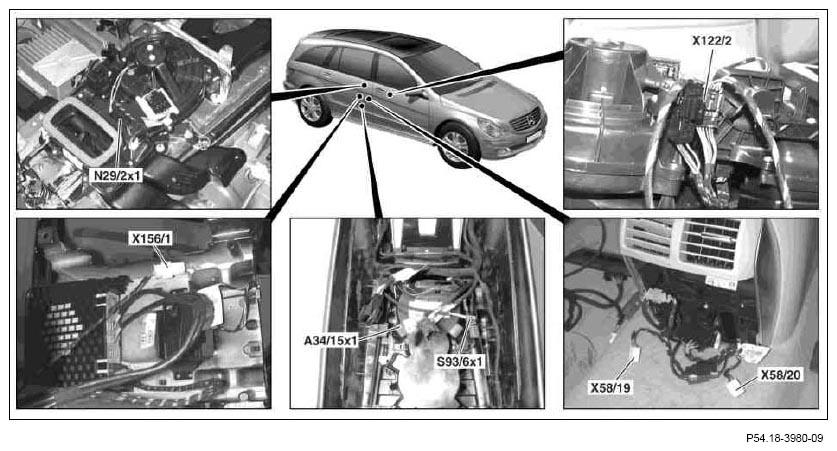

Fig 3: Right Interior Compartment Plug Connectors Location (3 Of 7)
G07005102Courtesy of MERCEDES-BENZ USA

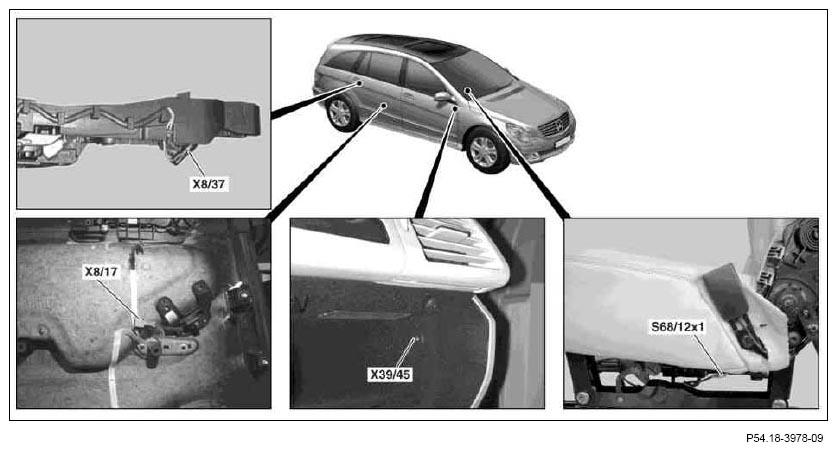

Fig 4: Right Interior Compartment Plug Connectors Location (4 Of 7)
G07005103Courtesy of MERCEDES-BENZ USA

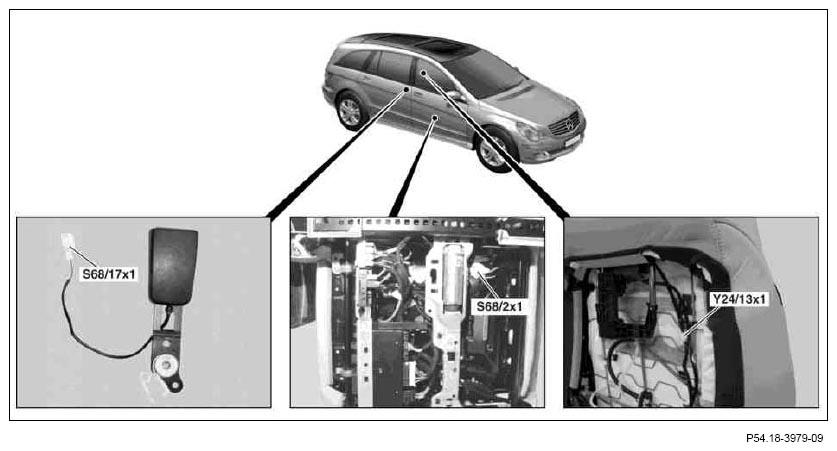

Fig 5: Right Interior Compartment Plug Connectors Location (5 Of 7)
G07005104Courtesy of MERCEDES-BENZ USA

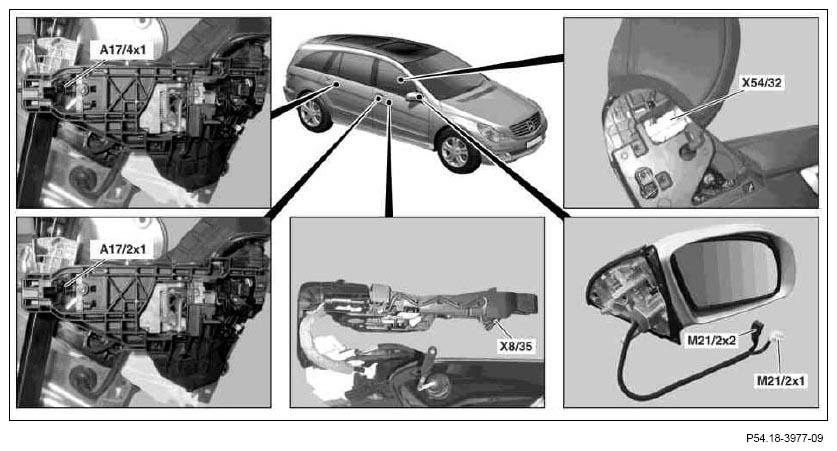

Fig 6: Right Interior Compartment Plug Connectors Location (6 Of 7)
G07005105Courtesy of MERCEDES-BENZ USA

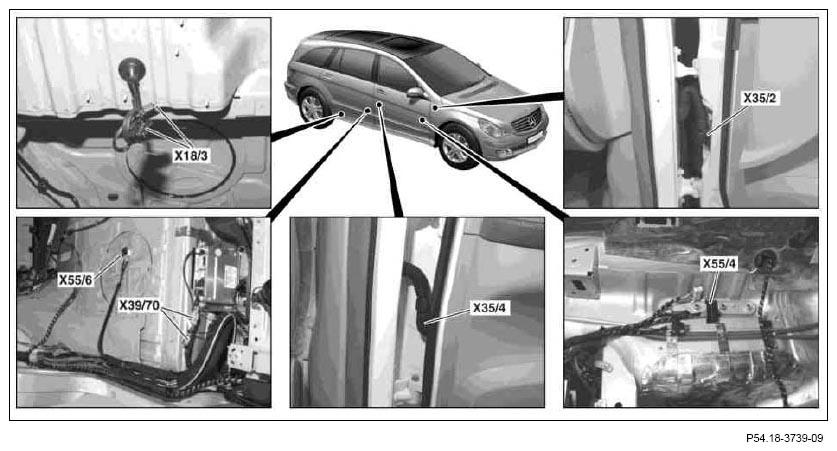

Fig 7: Right Interior Compartment Plug Connectors Location (7 Of 7)
G07005106Courtesy of MERCEDES-BENZ USA
Code Designation Cable colors   Cable colors Notes
A17/2x1 Right front Keyless Go door handle connector BN PLUG 1 SOCKET RDBK
RD PLUG 2 SOCKET VTBK
BU PLUG 3 SOCKET PKBK
BN PLUG 4 SOCKET YEWH
BU PLUG 5 SOCKET RDWH
A17/4x1 Right rear Keyless Go door handle connector BN PLUG 1 SOCKET BNWH
BU PLUG 2 SOCKET PKWH
A34/15x1 Connector 1, UPCI [UHI] portable CTEL holder (Universal Handy Interface) BN PLUG 1 SOCKET PK
WHOG PLUG 2 SOCKET RDWH
WHBU PLUG 3 SOCKET BUWH
WHGN PLUG 4 SOCKET GNWH
WHBN PLUG 5 SOCKET BKWH
RD PLUG 6 SOCKET RD
orange PLUG 7 SOCKET OG
BU PLUG 8 SOCKET BU
GN PLUG 9 SOCKET GN
BN PLUG 10 SOCKET BK
B24/16x1 Rear-end door opening angle recognition sensor connector BK PLUG 1 SOCKET BN
    WH PLUG 2 SOCKET OG
BU PLUG 3 SOCKET RD
B48x1 Front passenger seat occupied and child seat recognition sensor connector
  except USA PLUG 1 SOCKET BN
PLUG 2 SOCKET BN
PLUG 3 SOCKET BN
PLUG 4 SOCKET BN
M21/2x1 Right electrically adjustable and heated exterior mirror connector   1
  2
  3
  4
  5
  6
  7
  8
  9
  10
M21/2x2 Right electrically adjustable and heated exterior mirror connector   1
  2
  3
  4
  5
  6
  7
  8
  9
  10
M28/5x1 Front passenger backrest angle adjustment motor connector PLUG 1 SOCKET VTBK
PLUG 2 SOCKET GN
  3
  4
N29/2x1 Rear air conditioning electronic blower regulator connector   1
  2
R13/4x1 Right front backrest heater element connector BN PLUG 1 SOCKET GNWH
BN PLUG 2 SOCKET BN
S68/2x1 Right front seat belt buckle and seat belt warning switch connector PLUG 1 SOCKET BN
PLUG 2 SOCKET PK
S68/12x1 Right rear seat belt buckle switch connector
  except USA, up to 07/08 PLUG 1 SOCKET BN
PLUG 2 SOCKET OG
S68/17x1 Right 3rd seat row seat belt buckle switch connector
  except USA, up to 07/08 PLUG 1 SOCKET BN
PLUG 2 SOCKET PK
S93/6x1 MB-lnfo and breakdown assistance button group connector PLUG 1 SOCKET BU
PLUG 2 SOCKET WH
PLUG 3 SOCKET OG
PLUG 4 SOCKET GN
PLUG 5 SOCKET YE
PLUG 6 SOCKET VT
X8/17 Right rear door printed wiring harness connector TR PLUG 1 SOCKET GYWH
TR PLUG 2 SOCKET VTBK
TR PLUG 3 SOCKET RDBK
TR PLUG 4 SOCKET BN
TR PLUG 5 SOCKET BK Interior light package
TR PLUG 6 SOCKET BN Interior light package
TR PLUG 7 SOCKET BN
TR PLUG 8 SOCKET BKBU
X8/35 Right front door handle connector
  Keyless Go BN PLUG 1 SOCKET RDBK
RD PLUG 2 SOCKET VTBK
BU PLUG 3 SOCKET PKBK
BN PLUG 4 SOCKET YEWH
BU PLUG 5 SOCKET RDWH
X8/37 Right rear door handle connector
  Keyless Go BN PLUG 1 SOCKET BNWH
BU PLUG 2 SOCKET PKWH
X18/3 Interior/fuel tank connector GYWH PLUG 1.1 SOCKET GYWH USA, M272, M273
BN PLUG 1.1 SOCKET BN USA, M156
BN PLUG 1.2 SOCKET BN USA, M272, M273
GYWH PLUG 1.2 SOCKET GYWH USA, M156
BUWH PLUG 1.3 SOCKET BUWH USA, M272, M273
BUBK PLUG 1.3 SOCKET BUBK USA, M156
BN PLUG 1.1 SOCKET BN STH
BK PLUG 1.2 SOCKET BK STH
BN PLUG 1.4 SOCKET BN M156
BNBK PLUG 1.5 SOCKET BNBK
RDWH PLUG 1.6 SOCKET RDWH
BUBK PLUG 1.7 SOCKET BUBK
GNBK PLUG 1.8 SOCKET GNBK
BN PLUG 3.1 SOCKET BN M156
RDBU PLUG 3.2 SOCKET RDBU M156
X35/2 Right front door separation point BNRD PLUG 1 SOCKET BNRD
BN PLUG 2 SOCKET BN
BK PLUG 3 SOCKET BK Japan, backup camera
BN PLUG 4 SOCKET BN Japan, backup camera
TR PLUG 5 SOCKET TR Japan, backup camera
YE PLUG 6 SOCKET YE Japan, backup camera
BK PLUG 12 SOCKET BK Keyless Go
VTBK PLUG 13 SOCKET VTBK
BN PLUG 14 SOCKET BN SOUND
RD PLUG 17 SOCKET RD
BU PLUG 18 SOCKET BU Keyless Go
VT PLUG 19 SOCKET VT
BNBK PLUG 20 SOCKET BNBK
BN PLUG 23 SOCKET BN
YEBU PLUG 24 SOCKET YEBU Keyless Go
YEWH PLUG 25 SOCKET YEWH Keyless Go
RDWH PLUG 26 SOCKET RDWH Keyless Go
BNBK PLUG 29 SOCKET BNBK RL
X35/4 Right rear door separation point GYWH PLUG 3 SOCKET GYWH
    VTBK PLUG 4 SOCKET VTBK
RDBK PLUG 5 SOCKET RDBK
BN PLUG 6 SOCKET BN
BN PLUG 7 SOCKET BN
GN PLUG 8 SOCKET 3N
PK PLUG 9 SOCKET PK
GYBK PLUG 10 SOCKET GYBK Rear sidebag
BN PLUG 11 SOCKET BN Rear sidebag
YE PLUG 12 SOCKET WHBK up to 08/06 Keyless Go
GNBK PLUG 13 SOCKET 3NBK
WH PLUG 16 SOCKET WH
orange PLUG 18 SOCKET YEBK up to 08/06 Keyless Go
GN PLUG 19 SOCKET 3N
GY PLUG 22 SOCKET 3Y
WHBU PLUG 24 SOCKET WHBU up to 08/06 Keyless Go
BNWH PLUG 25 SOCKET GNBK Keyless Go
PKWH PLUG 26 SOCKET PKBK Keyless Go
BUBK PLUG 27 SOCKET BUBK Keyless Go
BNBK PLUG 28 SOCKET BNBK Keyless Go
VT PLUG 29 SOCKET VT
VTBK PLUG 30 SOCKET VTBK
WH PLUG 31 SOCKET WH
BKBU PLUG 32 SOCKET BKBU
BK PLUG 33 SOCKET BK Interior light package
X39/45 Walkman separation point PLUG 1 SOCKET BK
PLUG 2 SOCKET YE
PLUG 3 SOCKET BN
    SOCKET TR
X39/70 FFS [RBA} microphone array connector
  up to 08/06 TR PLUG 2.1 SOCKET TR UHI
GN PLUG 2.2 SOCKET 3N
GN PLUG 2.2 SOCKET TR USA
GY PLUG 2.3 SOCKET 3Y
orange PLUG 2.4 SOCKET DG
VT PLUG 2.5 SOCKET VT
PK PLUG 2.6 SOCKET PK
PK PLUG 2.6 SOCKET 3N USA
TR PLUG 2.7 SOCKET TR
GN PLUG 2.8 SOCKET GN
X54/32 Front passenger seat external power feed separation point BKWH PLUG 1 SOCKET BKWH
BNWH PLUG 2 SOCKET BNWH
BKWH PLUG 3 SOCKET BKWH
BNWH PLUG 4 SOCKET BNWH
X55/4 Right front seat contacting strip
Electric seat adjustment, all-electric BURD PLUG 1.1 SOCKET BURD
BN PLUG 1.2 SOCKET BN
BN PLUG
RDBU PLUG 1.3 SOCKET RDBU
RDBU PLUG
RDBK PLUG 1.4 SOCKET RDBK
  Electric seat adjustment, partially electric BKWH PLUG 1.3 SOCKET BKBU
RDBU PLUG
BN PLUG 1.2 SOCKET BN
BN PLUG
  Rear sidebag GYBK PLUG
BN PLUG		 1.10
1.11		 SOCKET GYBK
SOCKET BN
    BN PLUG 2.1 SOCKET BN except USA
RD PLUG 2.2 SOCKET RD USA
BN PLUG 2.2 SOCKET BKWH except USA
BNRC PLUG 2.3 SOCKET BNRD USA
BN PLUG 2.3 SOCKET GY except USA
BN PLUG 2.4 SOCKET BN USA
BKWH PLUG 2.10 SOCKET BKBU
WHGN PLUG 2A.5 SOCKET WHGN
BN PLUG 2A.6 SOCKET BN
VTBU PLUG 2A.7 SOCKET VTBU
GN PLUG 2A.8 SOCKET GN Crash-active head restraints
BU PLUG 2A.9 SOCKET YEBU
BKWH PLUG 2A.10 SOCKET BKBU Crash-active head restraints
YE PLUG 2A.11 SOCKET YE
BN PLUG 2B.13 SOCKET BN
PK PLUG 2B.14 SOCKET PK
PLUG 4A.1 SOCKET BN HS
PLUG 4A.2 SOCKET GNWH HS, LHD
PLUG 4A.2 SOCKET BUBK HS, RHD
BN PLUG 4B.3 SOCKET BN Interior light package
YE PLUG 4B.4 SOCKET YE Interior light package
RD PLUG 4C.1 SOCKET RD
GYBK PLUG 4C.2 SOCKET GYBK
BN PLUG 4C.3 SOCKET BN
PLUG 4A1.1 SOCKET BN HS
PLUG 4A1.2 SOCKET GNWH HS
PLUG 4A2.1 SOCKET HS
PLUG 4A2.2 SOCKET HS
  DVD player, up to 07/08 BU PLUG 5.1 SOCKET BU
BUWH PLUG 5.2 SOCKET BUWH
GN PLUG 5.3 SOCKET GN
GNWH PLUG 5.4 SOCKET GNWH
BK PLUG 5.5 SOCKET BK
orange PLUG 5.6 SOCKET OG
OGWH PLUG 5.7 SOCKET OGWH
RD PLUG 5.8 SOCKET RD
RDWH PLUG 5.9 SOCKET RDWH
BKWH PLUG 5.10 SOCKET BKWH
  DVD player, as of 08/08 TR PLUG 5.1 SOCKET TR
TR PLUG 5.2 SOCKET TR
TR PLUG 5.3 SOCKET TR
TR PLUG 5.4 SOCKET TR
BK PLUG 5.5 SOCKET BK
TR PLUG 5.6 SOCKET TR
YE PLUG 5.7 SOCKET YE
BN PLUG 5.8 SOCKET BN
  DVD player BN PLUG 6.1 SOCKET BN
RD PLUG 6.2 SOCKET RD Up to 07/08
RD PLUG 6.3 SOCKET RD
BN PLUG 6.4 SOCKET BN
BKWH PLUG 6.5 SOCKET BKWH
BK PLUG 6.6 SOCKET BK
X55/6 Right 2nd row seat adjustment connector block BN PLUG 4A.1 SOCKET GN HS, 2nd seat row
GN PLUG 4A.2 SOCKET BN HS, 2nd seat row
GN PLUG 4E.1 SOCKET GN Rear sidebag
VT PLUG 4E.2 SOCKET VT Rear sidebag
BN PLUG 4E.3 SOCKET BN Rear sidebag
BN PLUG 4E.4 SOCKET BN except USA
orange PLUG 4E.5 SOCKET OG except USA
X58/19 Left 2nd seat row socket PLUG 1 SOCKET BN
PLUG 2 SOCKET BKWH up to 08/06
X58/20 Right 2nd seat row socket PLUG 1 SOCKET BN
PLUG 2 SOCKET BKWH
X62/33 Right rear axle multiple circuit junction connector PLUG A.1 SOCKET BU
PLUG A.2 SOCKET BN
PLUG D.1 SOCKET BUWH
PLUG D.2 SOCKET RDWH
X99/17 Kneebag separation point BNVT PLUG 1 SOCKET BNVT
GNYE. PLUG 2 SOCKET GNYE
X122/2 Booster blower connector (air conditioning) BN PLUG 1.1 SOCKET GN
orange PLUG 1.2 SOCKET GN
BK PLUG 1.3 SOCKET GYBU
GN PLUG 1.4 SOCKET BKBU
BK PLUG 1.5 SOCKET BN
BU PLUG 1.6 SOCKET OG
    BUWH PLUG 2.1 SOCKET RD
GNBN PLUG 2.2 SOCKET RD
GNRC PLUG 2.3 SOCKET GYBU
RD PLUG 2.4 SOCKET GY
X156 Illuminated cup holder separation point
  Interior light package BN PLUG 1 SOCKET BN
BU PLUG 2 SOCKET GYWH
X156/1 2nd seat row illuminated cup holder separation point
  Keyless Go BN PLUG 1 SOCKET BNWH
BU PLUG 2 SOCKET PKWH
Y24/13x1 Front passenger NECK-PRO head restraint solenoid connector GN PLUG 1 SOCKET
BKWH PLUG 2 SOCKET
