Location and assignment of line and plug connectors, interior compartment, left - GF00.19-P-1000-04RAA

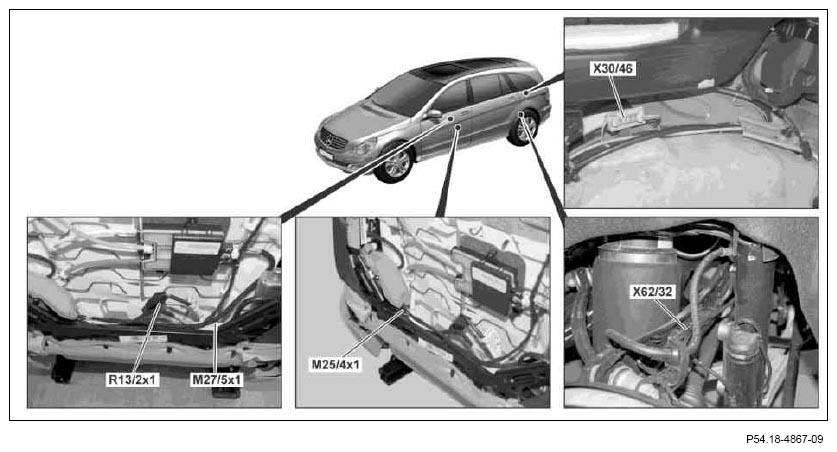

Fig 1: Left Interior Compartment Plug Connectors Location (1 Of 6)
G07005094Courtesy of MERCEDES-BENZ USA

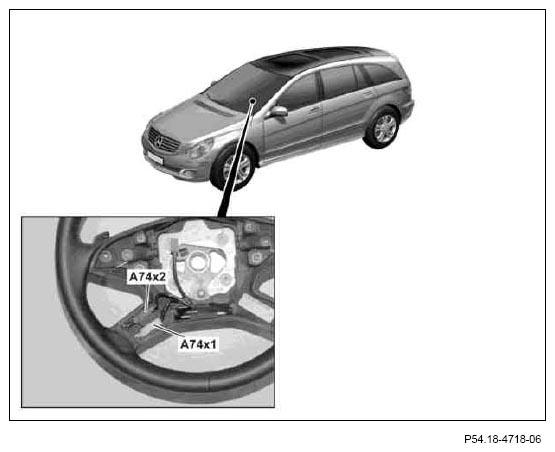

Fig 2: Left Interior Compartment Plug Connectors Location (2 Of 6)
G07005095Courtesy of MERCEDES-BENZ USA

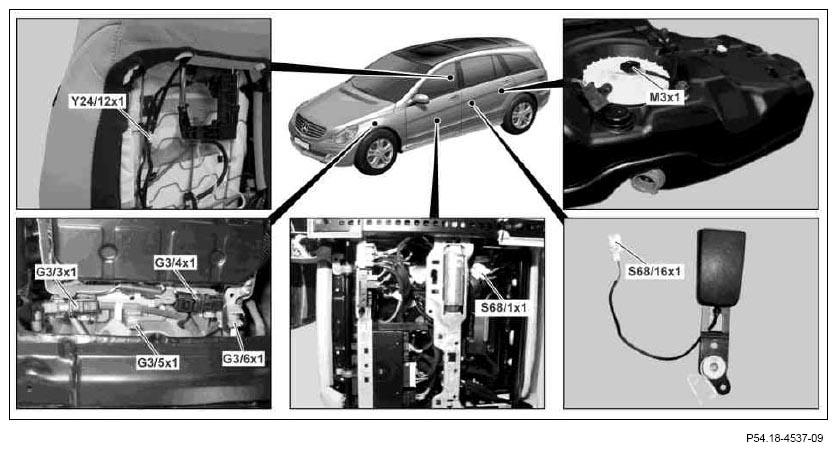

Fig 3: Left Interior Compartment Plug Connectors Location (3 Of 6)
G07005096Courtesy of MERCEDES-BENZ USA

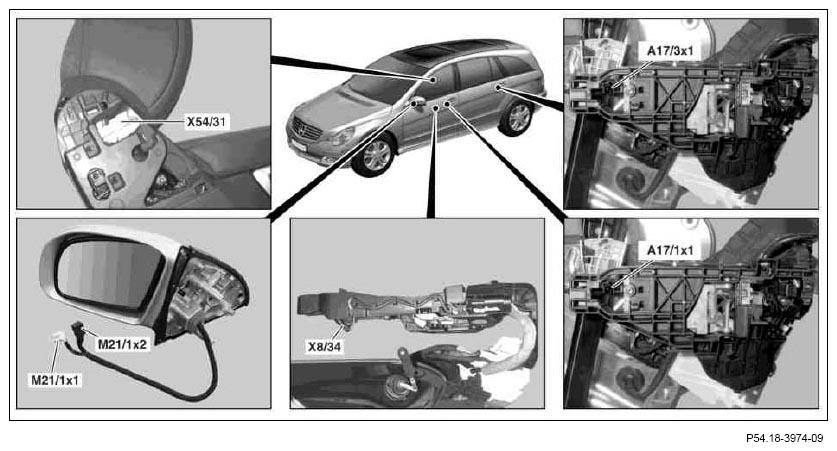

Fig 4: Left Interior Compartment Plug Connectors Location (4 Of 6)
G07005097Courtesy of MERCEDES-BENZ USA

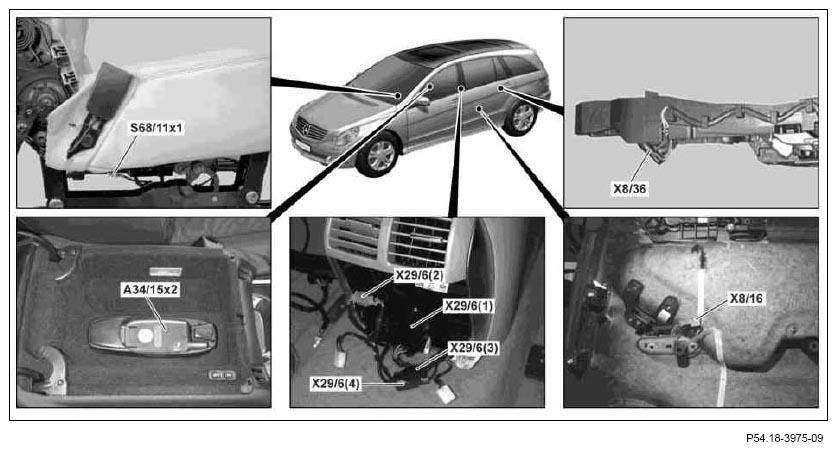

Fig 5: Left Interior Compartment Plug Connectors Location (5 Of 6)
G07005098Courtesy of MERCEDES-BENZ USA

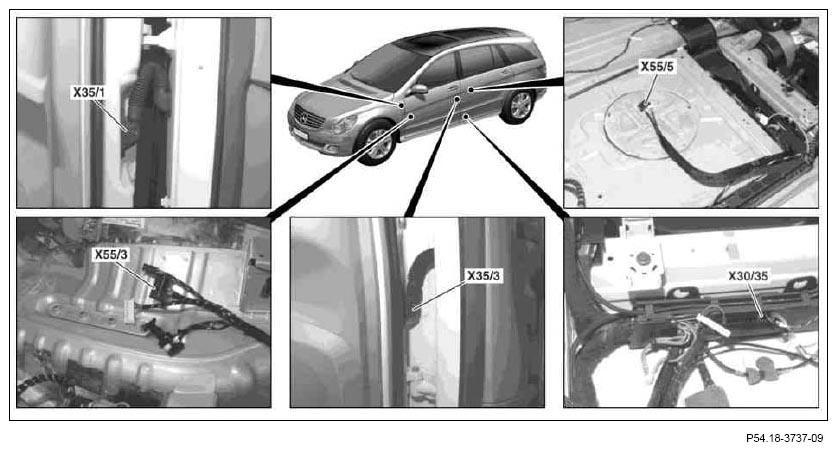

Fig 6: Left Interior Compartment Plug Connectors Location (6 Of 6)
G07005099Courtesy of MERCEDES-BENZ USA
Code Designation Cable colors   Cable colors Notes
A17/1x1 Left front Keyless Go door handle connector BN PLUG 1 SOCKET
RD PLUG 2 SOCKET
BU PLUG 3 SOCKET
BN PLUG 4 SOCKET YEBK
BU PLUG 5 SOCKET WHBK
A17/3x1 Left rear Keyless Go door handle connector BN PLUG 1 SOCKET BNWH
BU PLUG 2 SOCKET PKWH
A34/15x2 Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface)   1 SOCKET BK
  S SOCKET TR
A74x1 Connector 1/electronics steering wheel heater BN PLUG 1 SOCKET YE
BN PLUG 2 SOCKET YE
A74x2 Connector 2/electronics steering wheel heater BN PLUG 1 SOCKET BKRD
BN PLUG 2 SOCKET BKRD
G3/3x1 Connector, left 02 sensor, upstream CAT
  M113 RDGN PLUG 1 SOCKET
BNBK PLUG 2 SOCKET GYBU
GN PLUG 3 SOCKET GNBK
BK PLUG 4 SOCKET GNBU
  M156 GYPK PLUG 1 SOCKET
GNPK PLUG 2 SOCKET
GYOG PLUG 3 SOCKET
RDBK PLUG 4 SOCKET
GYRD PLUG 5 SOCKET
GNYE PLUG 6 SOCKET
  M272 BKVT PLUG 1 SOCKET
BKGN PLUG 2 SOCKET
BNWH PLUG 3 SOCKET
RDBU PLUG 4 SOCKET
YEWH PLUG 5 SOCKET
BKYE PLUG 6 SOCKET
  M273 PLUG 1 SOCKET BKVT
PLUG 2 SOCKET BKGN
PLUG 3 SOCKET BNYE
PLUG 4 SOCKET RDYE
PLUG 5 SOCKET YEWH
PLUG 6 SOCKET BKYE
G3/4x1 Connector, right 02 sensor, upstream CAT
  M113 RDGN PLUG 1 SOCKET
BNGY PLUG 2 SOCKET
GN PLUG 3 SOCKET
BKBN PLUG 4 SOCKET
  M156 GYRD PLUG 1 SOCKET
GNBU PLUG 2 SOCKET
GYBN PLUG 3 SOCKET
RDBH PLUG 4 SOCKET
GYWI PLUG 5 SOCKET
GNBK PLUG 6 SOCKET
  M272 BU PLUG 1 SOCKET
BKBU PLUG 2 SOCKET
GN PLUG 3 SOCKET
RDBU PLUG 4 SOCKET
WH PLUG 5 SOCKET
RDGN PLUG 6 SOCKET
  M273 PLUG 1 SOCKET BU
PLUG 2 SOCKET BKBU
PLUG 3 SOCKET GN
PLUG 4 SOCKET RDGN
PLUG 5 SOCKET WH
PLUG 6 SOCKET BNBK
G3/5x1 Connector, left 02 sensor, downstream CAT
  M113 RDGN PLUG 1 SOCKET
BNBK PLUG 2 SOCKET
WH PLUG 3 SOCKET
PKWH PLUG 4 SOCKET
  M156 RDBK PLUG 1 SOCKET
BNBK PLUG 2 SOCKET
BUBN PLUG 3 SOCKET
YE PLUG 4 SOCKET
  M272 RDYE PLUG 1 SOCKET
VTYE PLUG 2 SOCKET
BNWH PLUG 3 SOCKET
GYWH PLUG 4 SOCKET
  M273 RDYE PLUG 1 SOCKET
VTYE PLUG 2 SOCKET
BNWH PLUG 3 SOCKET
GYWH PLUG 4 SOCKET
G3/6x1 Connector, right O2 sensor, downstream CAT
  M113 RDGN PLUG 1 SOCKET
BNWH PLUG 2 SOCKET
WHBK PLUG 3 SOCKET
GYWH PLUG 4 SOCKET
  M156 RDBK PLUG 1 SOCKET
BNGY PLUG 2 SOCKET
BUBN PLUG 3 SOCKET
BU PLUG 4 SOCKET
  M272 RDYE PLUG 1 SOCKET
VT PLUG 2 SOCKET
BNWH PLUG 3 SOCKET
RD PLUG 4 SOCKET
  M273 RDGN PLUG 1 SOCKET
VT PLUG 2 SOCKET
BNWH PLUG 3 SOCKET
RD PLUG 4 SOCKET
M3x1 Fuel pump connector
  M156 PLUG 3 SOCKET BN
PLUG 4 SOCKET RDBU
  except M156 PLUG 4 SOCKET BN
PLUG 5 SOCKET RDWH
M21/1x1 Left electrically adjustable and heated exterior mirror connector   1
  2
  3
  4
  5
  6
  7
  8
  9
  10
M21/1x2 Left electrically adjustable and heated exterior mirror connector   1
  2
  3
  4
  5
  6
  7
  8
  9
  10
M25/4x1 Driver seat lumbar support pneumatic pump electrical connector PLUG 1 SOCKET BURD
PLUG 2 SOCKET BN
M27/5x1 Driver backrest angle adjustment motor connector PLUG 1 SOCKET GYWH
PLUG 2 SOCKET BKWH
  3
  4
R 13/2x1 Left front backrest heated cushion connector BN PLUG 1 SOCKET BUBK
BN PLUG 2 SOCKET BN
S68/1x1 Left front seat belt buckle and seat belt warning switch connector PLUG 1 SOCKET BN
PLUG 2 SOCKET BK
S68/11x1 Left rear seat belt buckle switch connector
  except USA, up to 07/08 PLUG 1 SOCKET BN
PLUG 2 SOCKET BUBK
S68/16x1 Left 3rd seat row seat belt buckle switch connector
  except USA, up to 07/08 PLUG 1 SOCKET BN
PLUG 2 SOCKET BU
X8/16 Left rear door printed wiring harness connector TR PLUG 1 SOCKET 3YWH
TR PLUG 2 SOCKET GYNH
TR PLUG 3 SOCKET RDWH
TR PLUG 4 SOCKET BN
  Interior light package TR PLUG 5 SOCKET WHBU
TR PLUG 6 SOCKET BN
    TR PLUG 7 SOCKET BN
TR PLUG 8 SOCKET OG
X8/34 Left front door handle connector
  Keyless Go RDBK PLUG 1 SOCKET BN
VTBK PLUG 2 SOCKET RD
PKBK PLUG 3 SOCKET BU
YEBK PLUG 4 SOCKET BN
WHBK PLUG 5 SOCKET BU
X8/36 Left rear door handle connector
  Keyless Go BNWH PLUG 1 SOCKET BN
PKWH PLUG 2 SOCKET BU
X29/6 Center console intermediate connector
  As of 08/08, comfort telephone BN PLUG 1 SOCKET BN
BUBK PLUG 5 SOCKET BK
RDWH PLUG 6 SOCKET RD
  As of 06/09, TELE AID, USA BU PLUG 2 SOCKET BU
orange PLUG 3 SOCKET OG
WHGN PLUG 4 SOCKET GYWH
WHBU PLUG 7 SOCKET WH
GN PLUG 8 SOCKET GN
BN PLUG 9 SOCKET BN
    RD PLUG 1.1 SOCKET RD
GYWH PLUG 1.2 SOCKET GYWH
BNRD PLUG 1.3 SOCKET BNRD
BN PLUG 1.4 SOCKET BN
BN PLUG 1.5 SOCKET BN
WH PLUG 1.7 SOCKET WH up to 08/06
BN PLUG 1.8 SOCKET BN up to 08/06
TR PLUG 1.9 SOCKET TR up to 08/06
TR PLUG 1.11 SOCKET TR up to 08/06
BKBU PLUG 1.12 SOCKET BKBU
BN PLUG 1.13 SOCKET BN up to 08/06
WH PLUG 1.14 SOCKET WH up to 08/06
    TR PLUG 2.1 SOCKET TR UHI
WHOG PLUG 2.2 SOCKET RDWH Up to 08/06, UPCI [UHI]
GYWH PLUG 2.2 SOCKET GYWH As of 09/06, UPCI [UHI]
WHBU PLUG 2.3 SOCKET BUWH UHI
WHGN PLUG 2.4 SOCKET GNWH UHI
WHBN PLUG 2.5 SOCKET BKWH Up to 08/06, UPCI [UHI]
BN PLUG 2.5 SOCKET BN As of 09/06, UPCI [UHI]
BKBU PLUG 2.6 SOCKET BKBU UHI
orange PLUG 2.7 SOCKET RD UHI
BU PLUG 2.8 SOCKET BU UHI
GN PLUG 2.9 SOCKET GN UHI
BN PLUG 2.10 SOCKET BK UHI
    BN PLUG 3.1 SOCKET PK UHI
BU PLUG 3.2 SOCKET BU TELE AID, USA
WH PLUG 3.3 SOCKET WH TELE AID, USA,
GN PLUG 3.4 SOCKET GN TELE AID, USA
YE PLUG 3.5 SOCKET GYWH TELE AID, USA
RD PLUG 3.6 SOCKET RD UHI
VT PLUG 3.7 SOCKET BN TELE AID, USA
orange PLUG 3.8 SOCKET OG TELE AID, USA
    TR PLUG 4.1 SOCKET TR
TR PLUG 4.2 SOCKET TR as of 09/06 ECE
BK PLUG 4.2 SOCKET BK UHI
WH PLUG 5.1 SOCKET WH as of 09/06
BN PLUG 5.2 SOCKET BN as of 09/06
TR PLUG 5.3 SOCKET TR as of 09/06
WH PLUG 5.4 SOCKET WH as of 09/06
BN PLUG 5.5 SOCKET BN as of 09/06
TR PLUG 5.6 SOCKET TR as of 09/06
X30/35 Telematics CAN voltage distributor connector
Rear audio PLUG 1.1 SOCKET BKWH
PLUG 1.2 SOCKET BK
    PLUG 2.2 SOCKET BK Rear display
  TV tuner PLUG 3.1 SOCKET BKWH
PLUG 3.2 SOCKET BK
  Rear display PLUG 10.1 SOCKET BKWH
PLUG 10.2 SOCKET BK
  DVD player Rear audio PLUG 13.1 SOCKET BKWH
PLUG 13.2 SOCKET BK
PLUG 13.3 SOCKET BN
X30/46 Rear end CAN C potential distributor connector PLUG 1.1 SOCKET GNWH
PLUG 1.2 SOCKET GN
PLUG 1.3 SOCKET BN
PLUG 2.1 SOCKET GNWH
PLUG 2.2 SOCKET GN
  3.1
  3.2
PLUG 4.1 SOCKET GNWH Blind Spot Assist
PLUG 4.2 SOCKET GN Blind Spot Assist
  5.1
  5.2
  6.1
  6.2
X35/1 Left front door separation point BNRD PLUG 1 SOCKET BNRD
BN PLUG 2 SOCKET BN
  Reversing camera, Japan, RHD BK PLUG 3 SOCKET BK
BN PLUG 4 SOCKET BN
TR PLUG 5 SOCKET TR
YE PLUG 6 SOCKET YE
    RDBK PLUG 10 SOCKET RDBK
BN PLUG 11 SOCKET BN
    GNBU PLUG 12 SOCKET GNBU up to 08/06 Keyless Go
WHBK PLUG 13 SOCKET WHBK
BU PLUG 14 SOCKET BU
RD PLUG 17 SOCKET RD
BKWH PLUG 18 SOCKET BKWH up to 08/06 Keyless Go
WH PLUG 19 SOCKET WH
BUBK PLUG 20 SOCKET BUBK
BN PLUG 23 SOCKET BN
GYBU PLUG 24 SOCKET GYBU up to 08/06 Keyless Go
YEBK PLUG 25 SOCKET YEBK Keyless Go
WHBK PLUG 26 SOCKET WHBK Keyless Go
BNBK PLUG 29 SOCKET BNBK
X35/3 Left rear door separation point GYWH PLUG 3 SOCKET GYWH
VTWH PLUG 4 SOCKET VTWH
RDWH PLUG 5 SOCKET RDWH
BN PLUG 6 SOCKET BN
BN PLUG 7 SOCKET BN
GYBK PLUG 8 SOCKET GYBK
GNBK PLUG 9 SOCKET GNBK
  Rear sidebag BUWH PLUG 10 SOCKET BUWH
BN PLUG 11 SOCKET BN
    WHBK PLUG 12 SOCKET WHBK up to 08/06 Keyless Go
YEBK PLUG 13 SOCKET YEBK
WH PLUG 16 SOCKET WH
YEBK PLUG 18 SOCKET YEBK up to 08/06 Keyless Go
YE PLUG 19 SOCKET YE
BNBK PLUG 22 SOCKET BNBK
GYBU PLUG 24 SOCKET GYBU up to 08/06 Keyless Go
  Keyless Go BNWH PLUG 25 SOCKET BNWH
PKWH PLUG 26 SOCKET PKWH
GNBU PLUG 27 SOCKET GNBU
BKWH PLUG 28 SOCKET BKWH
    PKBK PLUG 29 SOCKET PKBK
VTBK PLUG 30 SOCKET VTBK
WH PLUG 31 SOCKET WH
orange PLUG 32 SOCKET OG
WHBU PLUG 33 SOCKET WHBU Interior light package
X39/37 CTEL separation point PLUG 1.1 SOCKET BN
PLUG 1.1 SOCKET BN
PLUG 1.4 SOCKET BUBK
PLUG 1.7 SOCKET BUBK
PLUG 1.9 SOCKET TR
PLUG 1.10 SOCKET BKWH
PLUG 1.11 SOCKET RDWH Up to 07/08
PLUG 1.16 SOCKET BNBK
PLUG 1.18 SOCKET GN
PLUG 2.1 SOCKET TR
PLUG 2.S SOCKET TR
  Japan, up to 07/08 PLUG 1.1 SOCKET BK
PLUG 1.2 SOCKET YE
PLUG 1.4 SOCKET BN
PLUG 1.6 SOCKET TR
PLUG 1.7 SOCKET TR
PLUG 1.9 SOCKET WH
PLUG 1.10 SOCKET TR
PLUG 2.1 SOCKET GN
PLUG 2.2 SOCKET OG
PLUG 2.3 SOCKET GY
PLUG 2.4 SOCKET BU
PLUG 2.5 SOCKET PK
  2.7
PLUG 3.1 SOCKET TR
PLUG 3.2 SOCKET TR
  Japan, as of 08/08 BK PLUG 1.1 SOCKET
YE PLUG 1.2 SOCKET
WH PLUG 1.3 SOCKET
RD PLUG 1.4 SOCKET
BN PLUG 1.5 SOCKET
BU PLUG 1.6 SOCKET
orange PLUG 1.7 SOCKET
VT PLUG 1.8 SOCKET
TR PLUG 1.9 SOCKET
TR PLUG 1.10 SOCKET
GY PLUG 2.1 SOCKET
BK PLUG 2.2 SOCKET
GN PLUG 2.3 SOCKET
  2.4
PLUG 3.S SOCKET TR
PLUG 3.1 SOCKET TR
X54/31 Driver seat external power feed separation point BKWH PLUG 1 SOCKET BKWH
BNWH PLUG 2 SOCKET BNWH
BKWH PLUG 3 SOCKET BKWH
BNWH PLUG 4 SOCKET BNWH
X55/3 Left front seat contacting strip
  Electric seat adjustment, all-electric BN PLUG 1.2 SOCKET BN
RDWH PLUG 1.3 SOCKET RDWH
RDBK PLUG 1.4 SOCKET RDBK
  Electric seat adjustment, partially electric BN PLUG 1.2 SOCKET BN
BN PLUG
BKWH PLUG 1.3 SOCKET BKWH
BKWH PLUG
    BKWH PLUG 2.10 SOCKET BKBU Crash-active head restraints
    BNYE PLUG 2A.5 SOCKET BNYE
BN PLUG 2A.6 SOCKET BN
VTGN PLUG 2A.7 SOCKET VTGN
YEBU PLUG 2A.8 SOCKET YEBU Crash-active head restraints
BU PLUG 2A.9 SOCKET BU
BKWH PLUG 2A.10 SOCKET BKBU Crash-active head restraints
YE PLUG 2A.11 SOCKET YE
BN PLUG 2B.13 SOCKET BN
BK PLUG 2B.14 SOCKET BK
  HS PLUG 4A.1 SOCKET BN
PLUG 4A.2 SOCKET GNWH RHD
PLUG 4A.2 SOCKET 4A1.1 BUBK LHD
    PLUG 4A1.1 SOCKET BN
PLUG 4A1.2 SOCKET BUBK
      4A2.1
4A2.2
  Interior light package BN PLUG 4B.3 SOCKET BN
YE PLUG 4B.4 SOCKET YE
    RD PLUG 4C.1 SOCKET RD
GYBK PLUG 4C.2 SOCKET GYBK
BN PLUG 4C.3 SOCKET BN
  DVD player, up to 07/08 BU PLUG 5.1 SOCKET BU
BUWH PLUG 5.2 SOCKET BUWH
GN PLUG 5.3 SOCKET GN
GNWH PLUG 5.4 SOCKET GNWH
BK PLUG 5.5 SOCKET BK
orange PLUG 5.6 SOCKET OG
OGWH PLUG 5.7 SOCKET OGWH
RD PLUG 5.8 SOCKET RD
RDWH PLUG 5.9 SOCKET RDWH
BKWH PLUG 5.10 SOCKET BKWH
  DVD player, as of 08/08 TR PLUG 5.1 SOCKET TR
TR PLUG 5.2 SOCKET TR
TR PLUG 5.3 SOCKET TR
TR PLUG 5.4 SOCKET TR
BK PLUG 5.5 SOCKET BK
TR PLUG 5.6 SOCKET TR
YE PLUG 5.7 SOCKET YE
BN PLUG 5.8 SOCKET BN
  DVD player BN PLUG 6.1 SOCKET BN
RD PLUG 6.2 SOCKET RD Up to 07/08
RD PLUG 6.3 SOCKET RD
BN PLUG 6.4 SOCKET BN
BKWH PLUG 6.5 SOCKET BKWH
BK PLUG 6.6 SOCKET BK
X55/5 Left 2nd row seat adjustment connector block
  HS, 2nd seat row BU. PLUG 4A.1 SOCKET BU
    BN PLUG 4A.2 SOCKET BN
  Rear sidebag GN PLUG 4E.1 SOCKET GN
VT PLUG 4E.2 SOCKET VT
BN PLUG 4E.3 SOCKET BN
  except USA BN PLUG 4E.4 SOCKET BN
BUBK PLUG 4E.5 SOCKET BUBK
Y24/12x1 Driver NECK-PRO head restraint solenoid connector YEBU PLUG 1
BKWH PLUG 2
X62/32 Left rear axle multiple circuit junction connector PLUG 1 SOCKET RDBK M113
PLUG 1 SOCKET VTBK except M113
PLUG 2 SOCKET WHBK
scientia non olet · About LEMON Manuals
