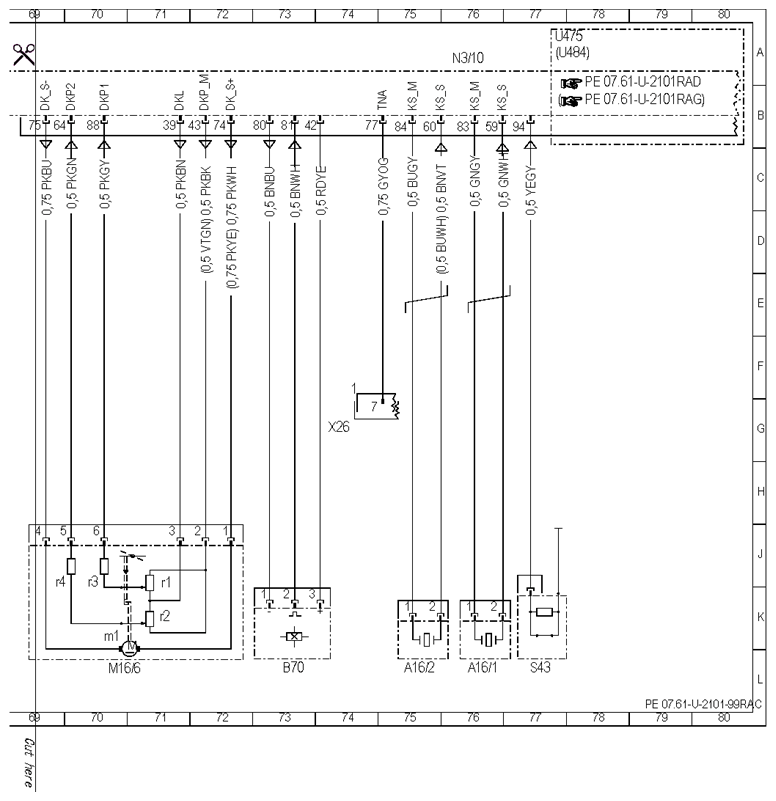

| A16/1 |
Right knock sensor 1 |
76 L |
| A16/2 |
Left knock sensor 2 |
75 L |

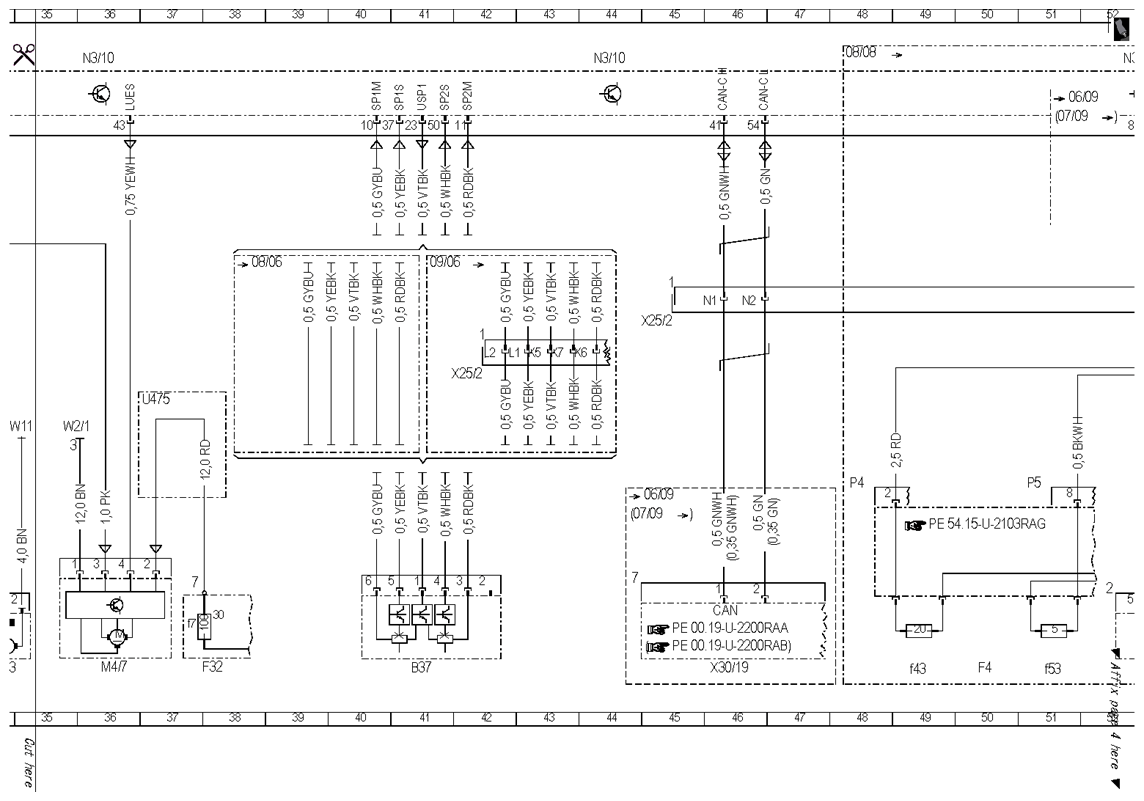

| B37 |
Accelerator pedal sensor |
41 L |

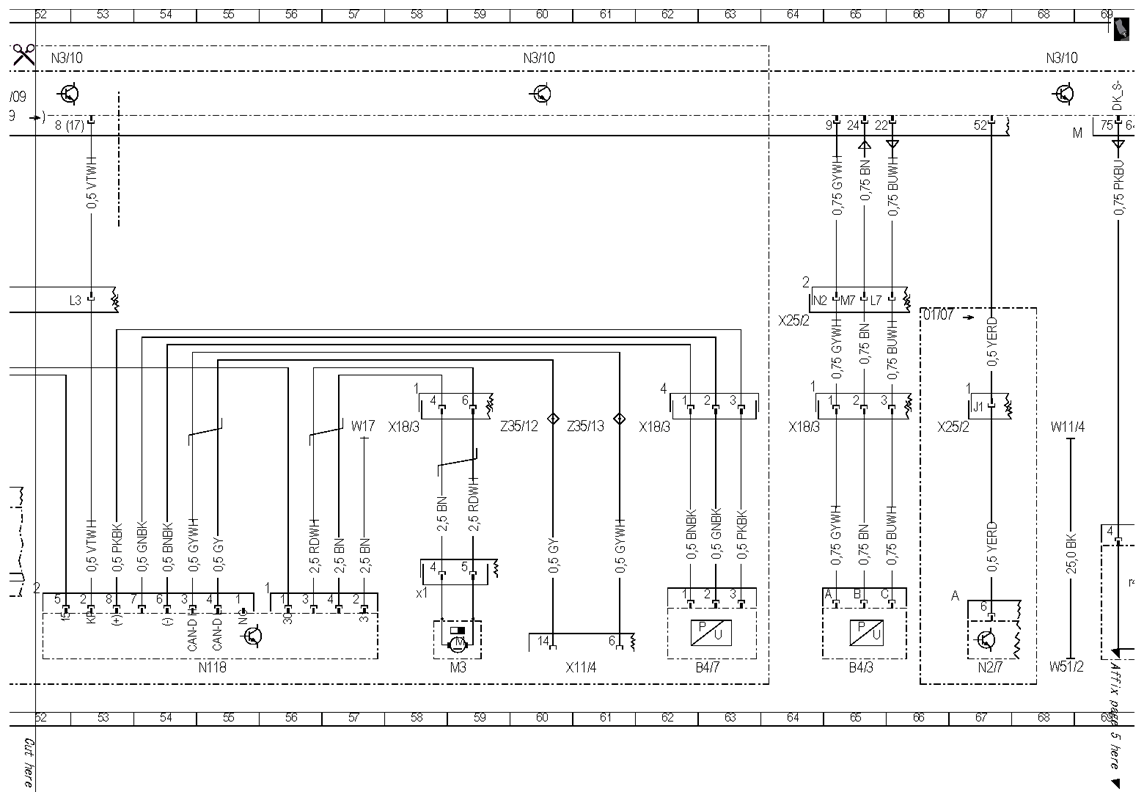

| B4/3 |
Fuel tank pressure sensor |
65 L |
| B4/7 |
Fuel pressure sensor |
62 L |
| B70 |
Crankshaft Hall sensor |
73 L |
| F32 |
Front prefuse |
37 L |
| F32f7 |
Fuse 7 |
37 K |
| F33 |
Battery compartment prefuse box |
17 L |

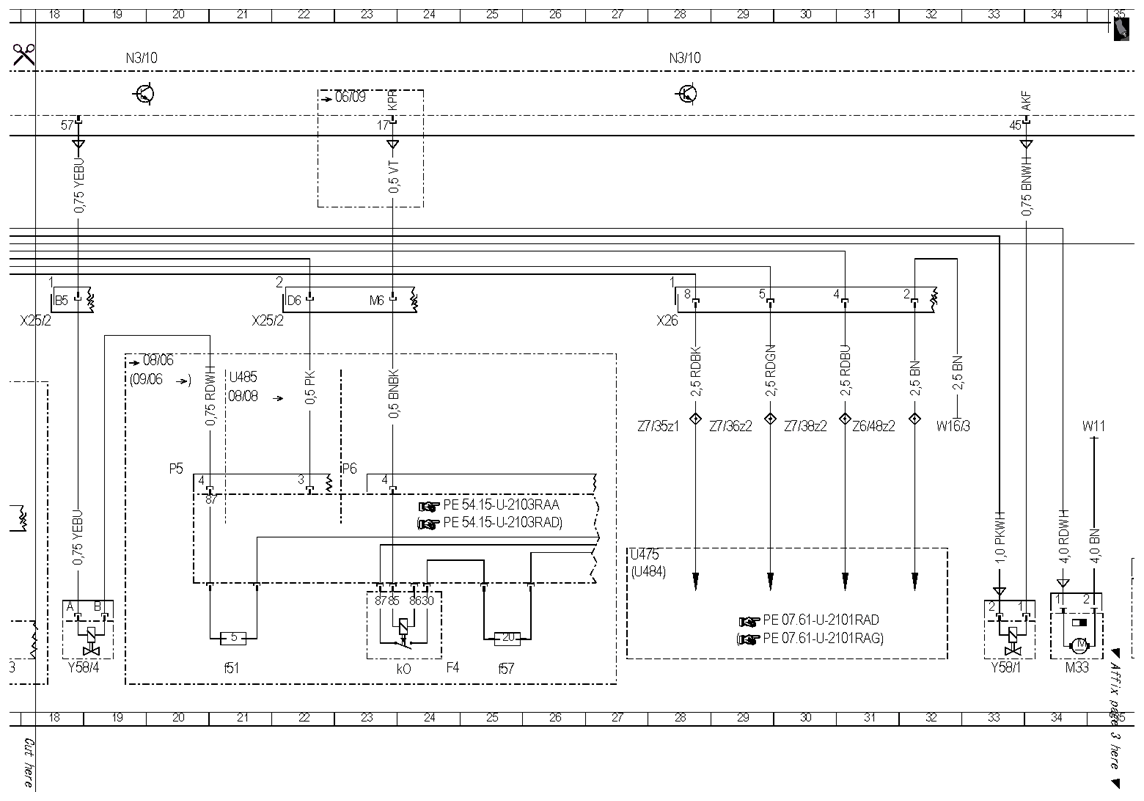

| F4 |
Load compartment fuse and relay box |
24 L |
| F4 |
Load compartment fuse and relay box |
50 L |
| F4f43 |
Fuse 43 |
49 L |
| F4f51 |
Fuse 51 |
20 L |
| F4f53 |
Fuse 53 |
51 L |
| F4f57 |
Fuse 57 |
25 L |
| F4kO |
Fuel pump relay |
23 L |

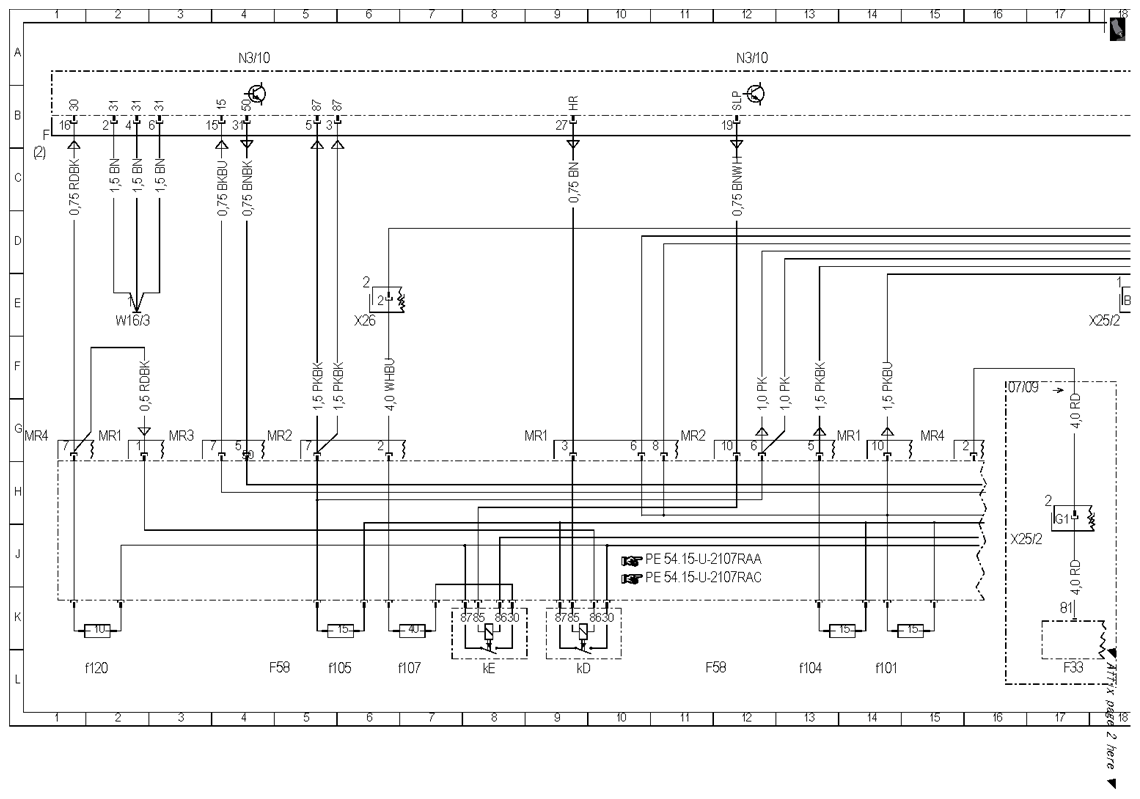

| F58 |
Engine compartment fuse and relay box |
4 L |
| F58 |
Engine compartment fuse and relay box |
11 L |
| F58f101 |
Fuse 101 |
14 L |
| F58f104 |
Fuse 104 |
13 L |
| F58f105 |
Fuse 105 |
5 L |
| F58f107 |
Fuse 107 |
6 L |
| F58f120 |
Fuse 120 |
1 L |
| F58kD |
Engine circuit 87 relay |
9 L |
| F58kE |
Air pump relay |
8 L |
| M16/6 |
Throttle valve actuator |
70 L |
| M16/6m1 |
Actuator motor |
70 L |
| M16/6r1 |
Actual value potentiometer 1 |
71 K |
| M16/6r2 |
Actual value potentiometer 2 |
71 K |
| M16/6r3 |
Actual value potentiometer (sliding contact 1) |
69 K |
| M16/6r4 |
Actual value potentiometer (sliding contact 2) |
69 K |
| M3 |
Fuel pump (FP) |
58 L |
| M33 |
Electric air pump |
34 L |
| M3x1 |
Fuel pump connector |
58 K |
| M4/7 |
Engine and AC electric suction fan with integrated control |
36 L |
| N118 |
Fuel pump control unit |
54 L |
| N2/7 |
Restraint systems control unit |
67 L |
| N3/10 |
ME-SFI [ME] control unit |
4 A |
| N3/10 |
ME-SFI [ME] control unit |
12 A |
| N3/10 |
ME-SFI [ME] control unit |
19 A |
| N3/10 |
ME-SFI [ME] control unit |
28 A |
| N3/10 |
ME-SFI [ME] control unit |
36 A |
| N3/10 |
ME-SFI [ME] control unit |
44 A |
| N3/10 |
ME-SFI [ME] control unit |
52 A |
| N3/10 |
ME-SFI [ME] control unit |
60 A |
| N3/10 |
ME-SFI [ME] control unit |
68 A |
| N3/10 |
ME-SFI [ME] control unit |
76 A |
| S43 |
Oil level check switch |
77 L |
| U475 |
Valid for M 272 |
27 J |
| U475 |
Valid for M 272 |
36 G |
| U475 |
Valid for M 272 |
77 A |
| U484 |
Valid for M273 ME |
27 J |
| U484 |
Valid for M273 ME |
77 A |
| U485 |
Not valid for M273 ME |
21 F |
| W11 |
Ground (engine - electrical line connected) |
34 G |
| W11/4 |
Ground (engine support) |
68 G |
| W16/3 |
Ground (left assembly compartment, power ground) |
2 E |
| W16/3 |
Ground (left assembly compartment, power ground) |
32 G |
| W17 |
Ground (right rear seat) |
57 G |
| W2/1 |
Ground (right front - fan) |
35 G |
| W51/2 |
Ground (engine-frame) |
68 L |
| X11/4 |
Data link connector |
60 L |
| X18/3 |
Interior/fuel tank connector |
57 G |
| X18/3 |
Interior/fuel tank connector |
62 G |
| X18/3 |
Interior/fuel tank connector |
64 G |
| X25/2 |
Engine compartment/interior compartment connector |
16 J |
| X25/2 |
Engine compartment/interior compartment connector |
17 E |
| X25/2 |
Engine compartment/interior compartment connector |
21 E |
| X25/2 |
Engine compartment/interior compartment connector |
41 F |
| X25/2 |
Engine compartment/interior compartment connector |
44 E |
| X25/2 |
Engine compartment/interior compartment connector |
64 E |
| X25/2 |
Engine compartment/interior compartment connector |
66 G |
| X26 |
Interior and engine wiring harness connector |
6 E |
| X26 |
Interior and engine wiring harness connector |
28 E |
| X26 |
Interior and engine wiring harness connector |
74 G |
| X30/19 |
Passenger-side voltage distributor (CAN C) connector |
46 L |
| Y58/1 |
Purge control valve |
33 L |
| Y58/4 |
Activated charcoal filter shutoff valve |
18 L |
| Z35/12 |
CAN D low connector sleeve |
59 G |
| Z35/13 |
CAN D high connector sleeve |
60 G |
| Z6/48z2 |
Circuit 31 connector sleeve |
31 G |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
27 G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
28 G |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
30 G |
