Electrical function diagram for ME maximum engine speed limitation - PE07.61-U-2757-99RAA

ENGINE 272, 273 in MODEL 251 as of Model Year 2009

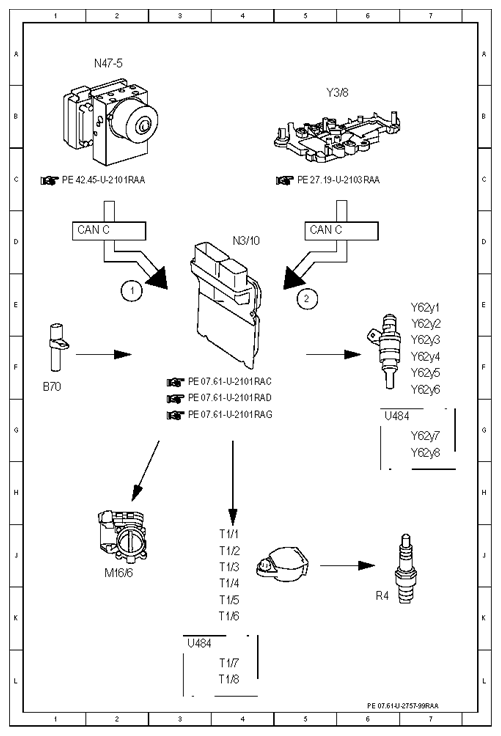

Fig 1: Ignition ON Electrical Function Diagram
G10120476Courtesy of MERCEDES-BENZ USA
