Wiring diagram Common Rail Diesel Injection (CDI) control module - PE07.16-U-2101-99RAE

Code: Designation: Position:
B1 Oil temperature sensor 23 L
B11/4 Coolant temperature sensor 24 L
B17/8 Charge air temperature sensor 26 L
B19/11 Temperature sensor upstream of turbocharger 28 L
B19/9 Temperature sensor upstream of diesel particulate filter 27 L
B2/6 Left hot film MAF sensor 44 L
B2/6b1 Intake air temperature sensor 43 L
B2/7 Right hot film MAF sensor 46 L
B2/7b1 Intake air temperature sensor 46 L
B28/5 Pressure sensor downstream of air filter 14 L
B28/8 Pressure differential sensor (DPF) 15 L
B4/6 Rail pressure sensor 19 L
B5/1 Charge pressure sensor 11 L
B50 Fuel temperature sensor 25 L
B6/1 Camshaft Hall sensor 17 L
B60 Exhaust back pressure sensor 12 L
B70 Crankshaft Hall sensor 36 L
B76/1 Condensation sensor for fuel filter with heating element 67 L
F58 Engine compartment fuse and relay box 60 L
G2 Alternator 73 L
G3/2 O2 sensor upstream of TWC [KAT] 49 L
G3/2x1 O2 sensor upstream of TWC [KAT] connector 48 K
M1 Starter 70 L
M16/6 Throttle valve actuator 21 L
M16/6m1 Actuator motor 20 L
M16/6r1 Actual value potentiometer 1 21 K
M16/6r2 Actual value potentiometer 2 21 K
M16/6r3 Actual value potentiometer (sliding contact 1) 20 K
M16/6r4 Actual value potentiometer (sliding contact 2) 20 K
M55 Intake port shutoff motor 32 L
N14/3 Glow time output stage 69 A
N3/9 CDI control unit 4 A
N3/9 CDI control unit 12 A
N3/9 CDI control unit 21 A
N3/9 CDI control unit 28 A
N3/9 CDI control unit 36 A
N3/9 CDI control unit 44 A
N3/9 CDI control unit 52 A
N3/9 CDI control unit 60 A
R39/1 Vent line heater element 30 L
R9/1 Cylinder 1 glow plug 70 F
R9/2 Cylinder 2 glow plug 71 F
R9/3 Cylinder 3 glow plug 71 F
R9/4 Cylinder 4 glow plug 71 F
R9/5 Cylinder 5 glow plug 71 F
R9/6 Cylinder 6 glow plug 72 F
S43 Oil level check switch 37 L
W11 Ground (engine - electrical line connected) 67 E
W11/4 Ground (engine support) 75 H
W12 Ground point for fuel filter with heating element 67 H
W16/3 Ground (left assembly compartment, power ground) 57 L
W51/2 Ground (engine-frame) 75 L
X26/31 Engine/engine compartment connector 56 H
Y133 Coolant pump switchover valve 40 L
Y27/9 Left exhaust gas recirculation positioner 38 L
Y74 Pressure regulator valve 8 L
Y76 Fuel injectors 4 L
Y76y1 Cylinder 1 fuel injector 2 L
Y76y2 Cylinder 2 fuel injector 3 L
Y76y3 Cylinder 3 fuel injector 4 L
Y76y4 Cylinder 4 fuel injector 5 L
Y76y5 Cylinder 5 fuel injector 6 L
Y76y6 Fuel injector cylinder 6 7 L
Y77/1 Boost pressure positioner 34 L
Y85 EGR [AGR] cooler bypass flap switchover valve 42 L
Y94 Quantity control valve 9 L
Z10 Connector sleeve 2 18 G
Z12 Connector sleeve 4 28 H
Z13 Connector sleeve 5 22 E
Z13 Connector sleeve 5 37 H
Z13 Connector sleeve 5 44 H
Z14 Connector sleeve 6 16 H
Z14 Connector sleeve 6 38 G
Z15 Connector sleeve 7 13 G
Z2 Circuit TD connector sleeve 18 H
Z2 Circuit TD connector sleeve 35 E
Z4 Connector sleeve (solder connector in harness) 15 H
Z5 Connector sleeve (solder connector in harness) 12 H
Z6 Ground connector sleeve 31 E
Z6 Ground connector sleeve 57 E
Z7/43 Sensor ground connector sleeve 25 H
Z7/5z1 Circuit 87 connector sleeve 29 E
Z7/5z1 Circuit 87 connector sleeve 41 G
Z7/5z1 Circuit 87 connector sleeve 58 E
Z7/5z2 Circuit 87 connector sleeve 9 E
Z7/5z2 Circuit 87 connector sleeve 60 E
Z7/5z3 Circuit 87 connector sleeve 31 E
Z7/5z3 Circuit 87 connector sleeve 43 H
Z7/5z3 Circuit 87 connector sleeve 59 E
Z9 Connector sleeve 1 66 E

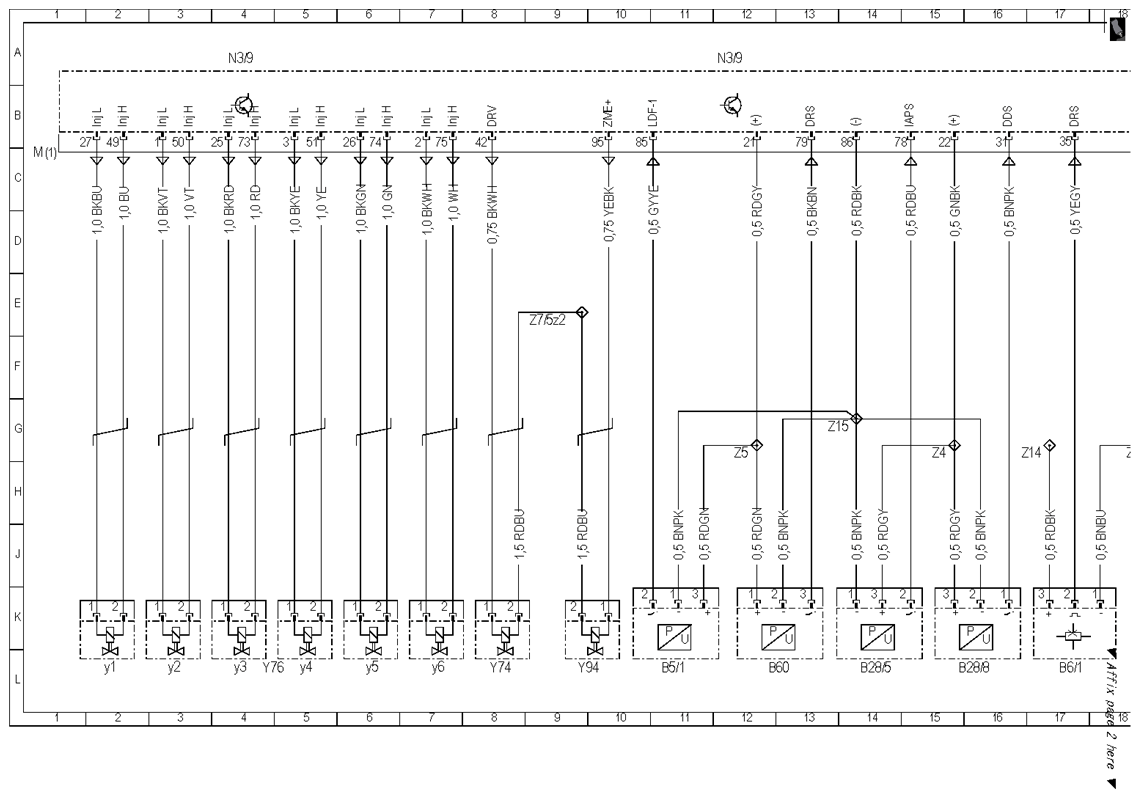

Fig 1: Common Rail Diesel Injection Control Module Wiring Diagram (1 Of 5)
G10120421Courtesy of MERCEDES-BENZ USA

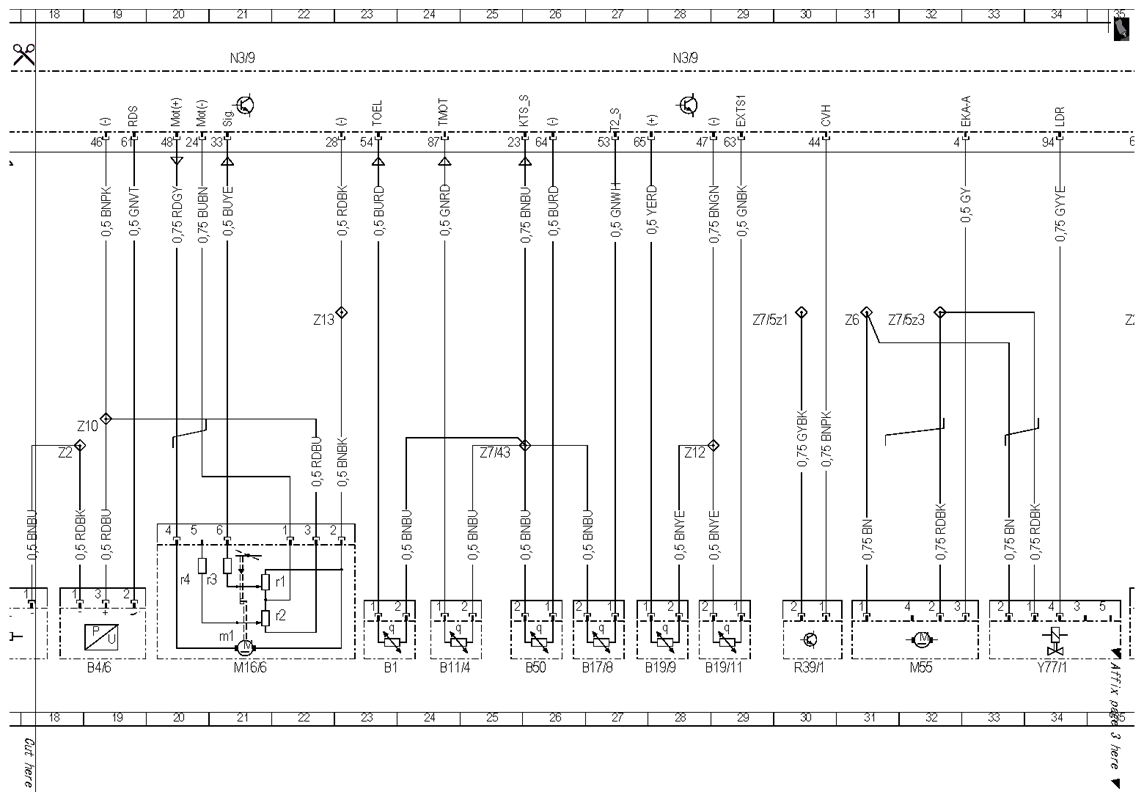

Fig 2: Common Rail Diesel Injection Control Module Wiring Diagram (2 Of 5)
G10120422Courtesy of MERCEDES-BENZ USA

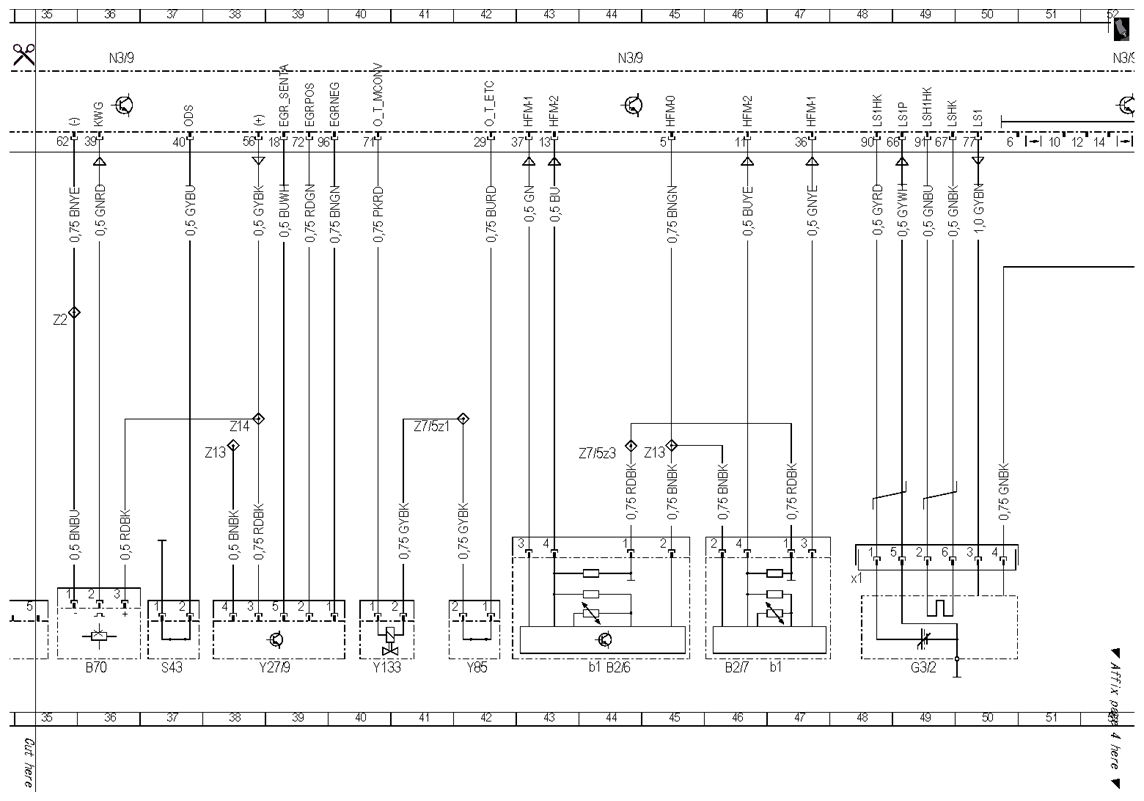

Fig 3: Common Rail Diesel Injection Control Module Wiring Diagram (3 Of 5)
G10120423Courtesy of MERCEDES-BENZ USA

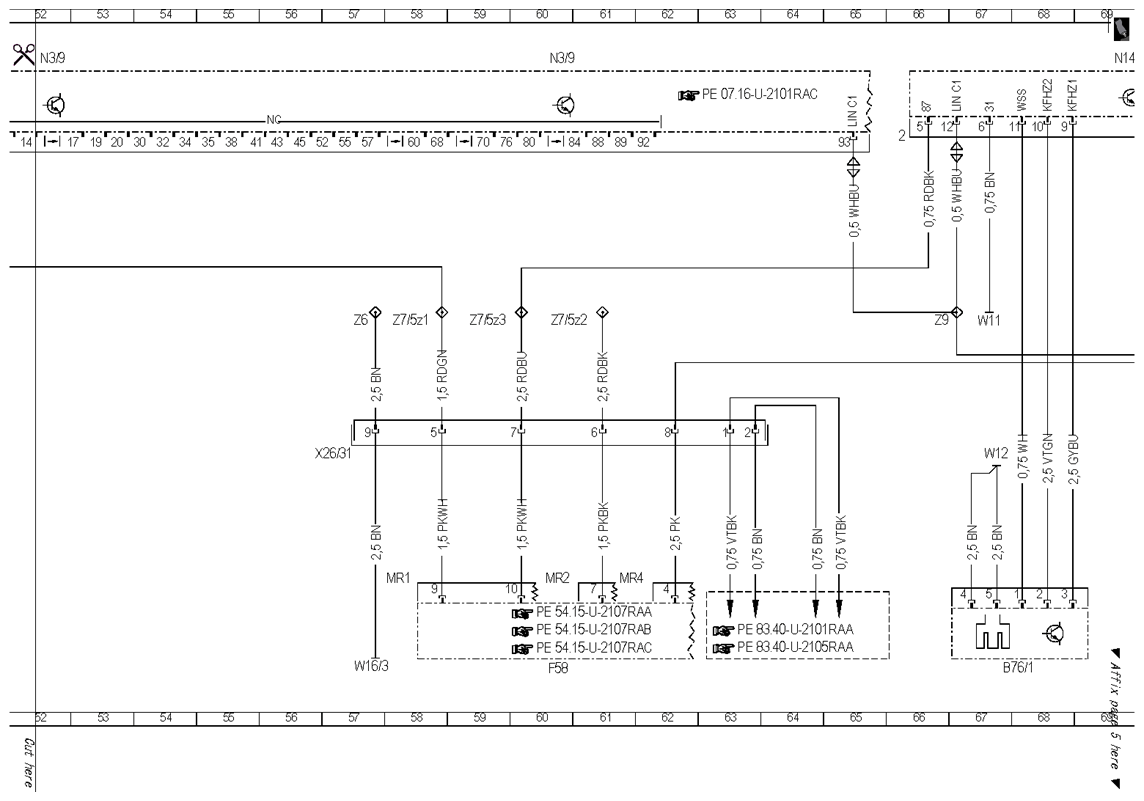

Fig 4: Common Rail Diesel Injection Control Module Wiring Diagram (4 Of 5)
G10120424Courtesy of MERCEDES-BENZ USA

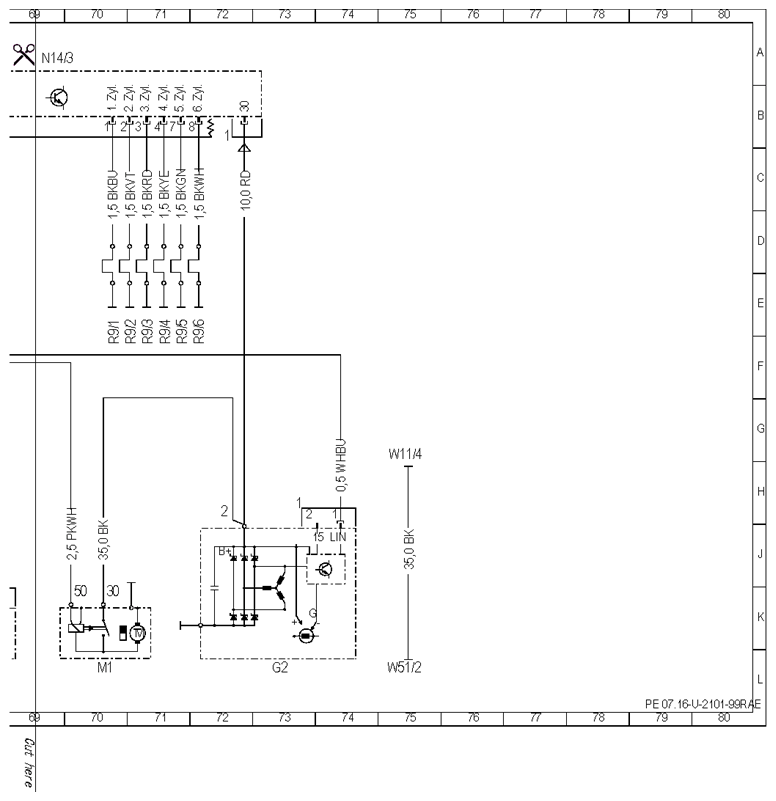

Fig 5: Common Rail Diesel Injection Control Module Wiring Diagram (5 Of 5)
G10120425Courtesy of MERCEDES-BENZ USA
