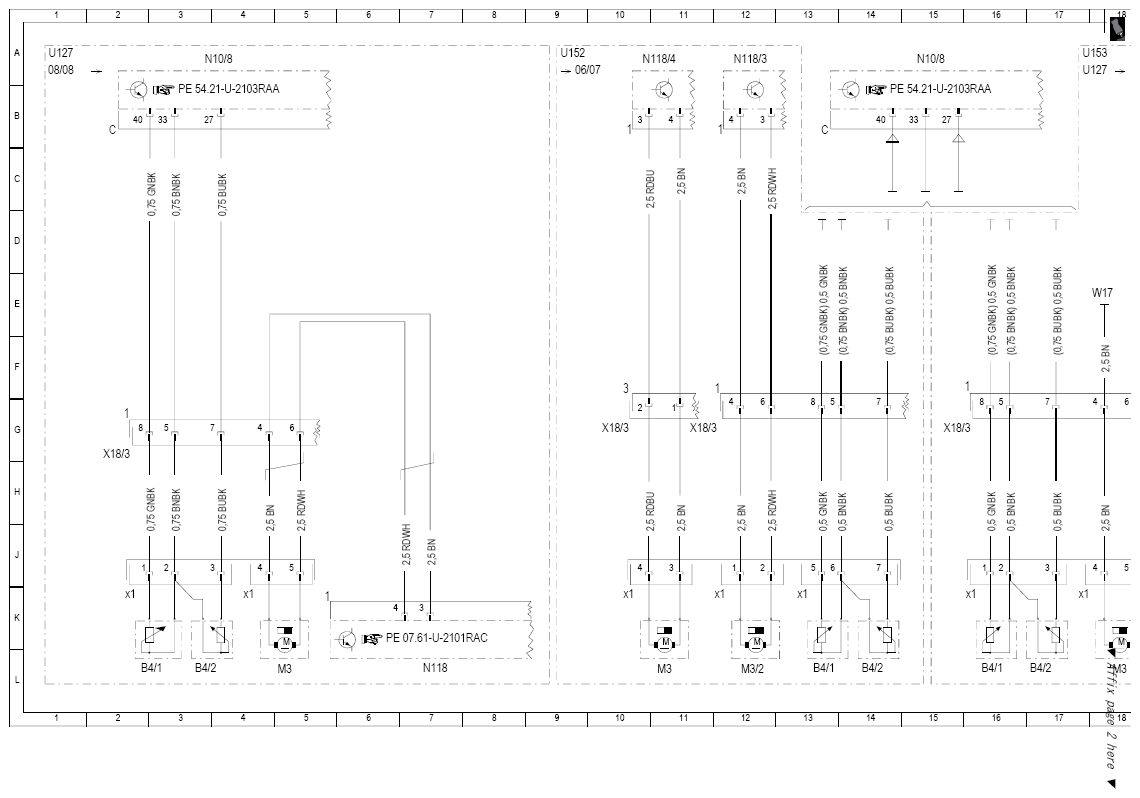

| B4/1 |
Left fuel level sensor |
2 L |
| B4/1 |
Left fuel level sensor |
13 L |
| B4/1 |
Left fuel level sensor |
16 L |
| B4/1x1 |
Left tank half fuel level sensor connector |
2 K |
| B4/1x1 |
Left tank half fuel level sensor connector |
13 K |
| B4/1x1 |
Left tank half fuel level sensor connector |
15 K |
| B4/2 |
Right fuel level sensor |
3 L |
| B4/2 |
Right fuel level sensor |
14 L |
| B4/2 |
Right fuel level sensor |
17 L |

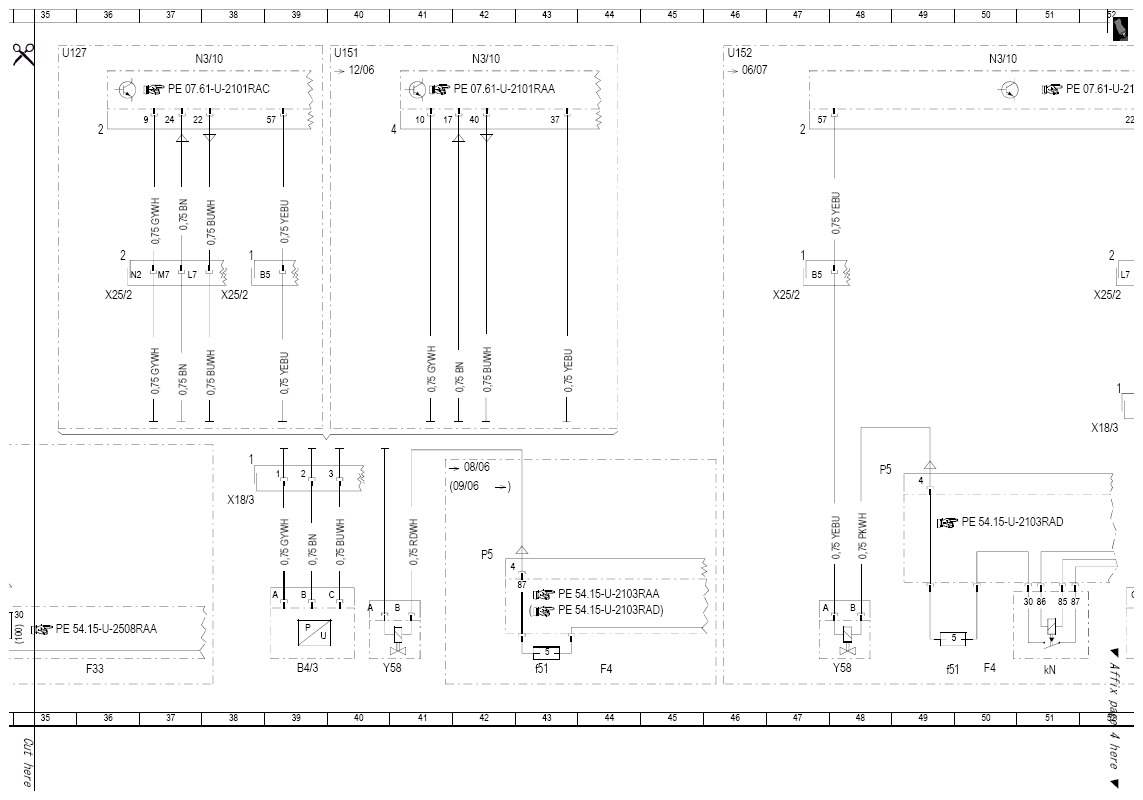

| B4/3 |
Fuel tank pressure sensor |
39 L |

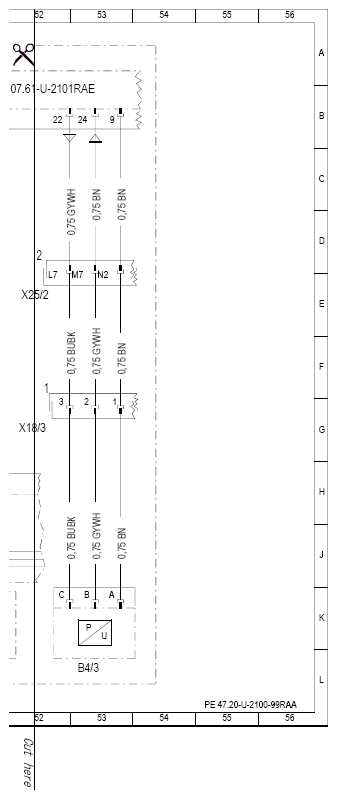

| B4/3 |
Fuel tank pressure sensor |
53 L |
| F33 |
Battery compartment prefuse box |
36 L |

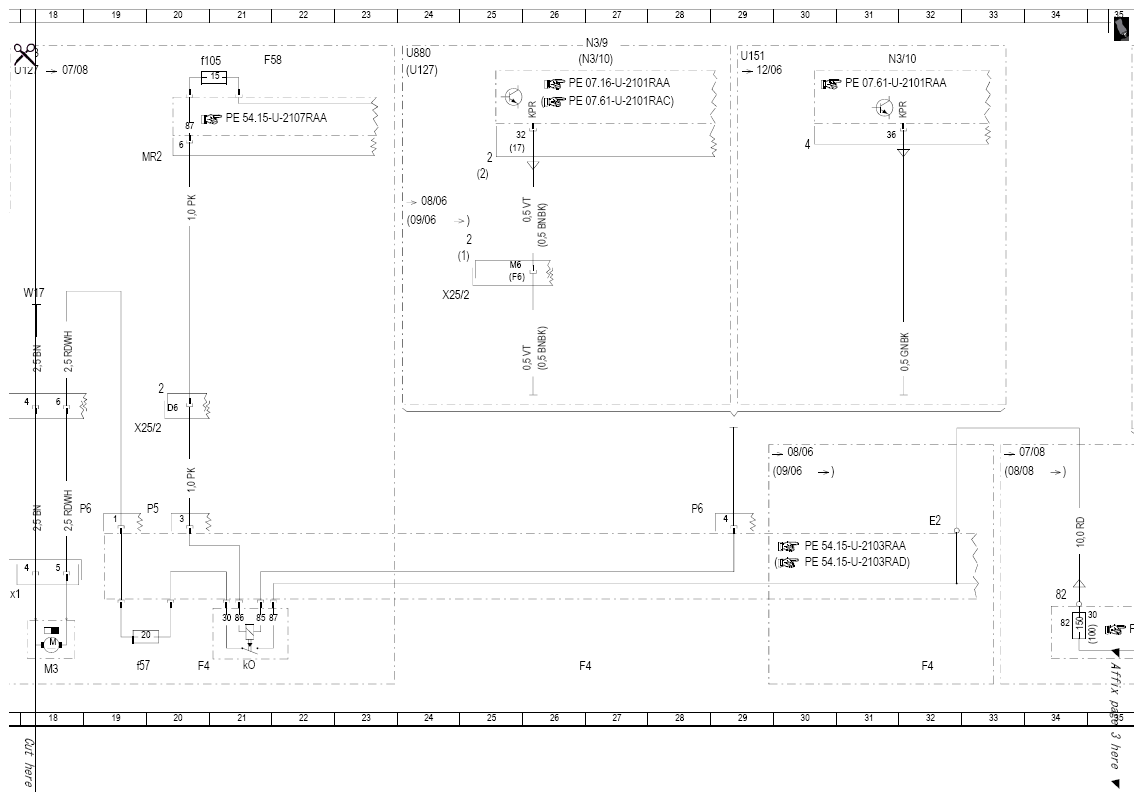

| F33f82 |
Fuse 82 |
34 K |
| F4 |
Load compartment fuse and relay box |
20 L |
| F4 |
Load compartment fuse and relay box |
26 L |
| F4 |
Load compartment fuse and relay box |
32 L |
| F4 |
Load compartment fuse and relay box |
44 L |
| F4 |
Load compartment fuse and relay box |
50 L |
| F4f51 |
Fuse 51 |
43 L |
| F4f51 |
Fuse 51 |
49 L |
| F4f57 |
Fuse 57 |
19 L |
| F4kN |
Circuit 15 (1)/spare 1 relay (changeover contact) |
51 L |
| F4kO |
Fuel pump relay |
21 L |
| F58 |
Engine compartment fuse and relay box |
21 A |
| F58f105 |
Fuse 105 |
20 A |
| M3 |
Right fuel pump |
5 L |
| M3 |
Right fuel pump |
11 L |
| M3 |
Right fuel pump |
18 L |
| M3/2 |
Left fuel pump |
12 L |
| M3/2x1 |
Left fuel pump connector |
11 K |
| M3x1 |
Right fuel pump connector |
4 K |
| M3x1 |
Right fuel pump connector |
10 K |
| M3x1 |
Right fuel pump connector |
17 K |
| N10/8 |
Rear SAM control unit |
3 A |
| N10/8 |
Rear SAM control unit |
15 A |
| N118 |
Fuel pump control unit |
7 L |
| N118/3 |
Left fuel pump control unit |
12 A |
| N118/4 |
Right fuel pump control unit |
10 A |
| N3/10 |
ME-SFI [ME] control unit |
26 A |
| N3/10 |
ME-SFI [ME] control unit |
26 A |
| N3/10 |
ME-SFI [ME] control unit |
31 A |
| N3/10 |
ME-SFI [ME] control unit |
37 A |
| N3/10 |
ME-SFI [ME] control unit |
42 A |
| N3/10 |
ME-SFI [ME] control unit |
50 A |
| N3/9 |
CDI control unit |
26 A |
| U127 |
Valid for engine 272, engine 273 KE |
1 A |
| U127 |
Valid for engine 272, engine 273 KE |
17 A |
| U127 |
Valid for engine 272, engine 273 KE |
24 A |
| U127 |
Valid for engine 272, engine 273 KE |
24 A |
| U127 |
Valid for engine 272, engine 273 KE |
35 A |
| U151 |
Valid for engine 113 |
29 A |
| U151 |
Valid for engine 113 |
40 A |
| U152 |
Valid for engine 156 |
9 A |
| U152 |
Valid for engine 156 |
46 A |
| U153 |
Valid for all except engine 156 |
17 A |
| U880 |
Valid for engine 642 |
24 A |
| W17 |
Ground (right rear seat) |
18 E |
| X18/3 |
Interior/fuel tank connector |
2 H |
| X18/3 |
Interior/fuel tank connector |
10 G |
| X18/3 |
Interior/fuel tank connector |
11 G |
| X18/3 |
Interior/fuel tank connector |
15 G |
| X18/3 |
Interior/fuel tank connector |
38 H |
| X18/3 |
Interior/fuel tank connector |
52 G |
| X25/2 |
Engine compartment/interior compartment connector |
19 G |
| X25/2 |
Engine compartment/interior compartment connector |
24 E |
| X25/2 |
Engine compartment/interior compartment connector |
36 E |
| X25/2 |
Engine compartment/interior compartment connector |
38 E |
| X25/2 |
Engine compartment/interior compartment connector |
47 E |
| X25/2 |
Engine compartment/interior compartment connector |
52 E |
| Y58 |
Activated charcoal filter shutoff valve |
40 L |
| Y58 |
Activated charcoal filter shutoff valve |
48 L |
