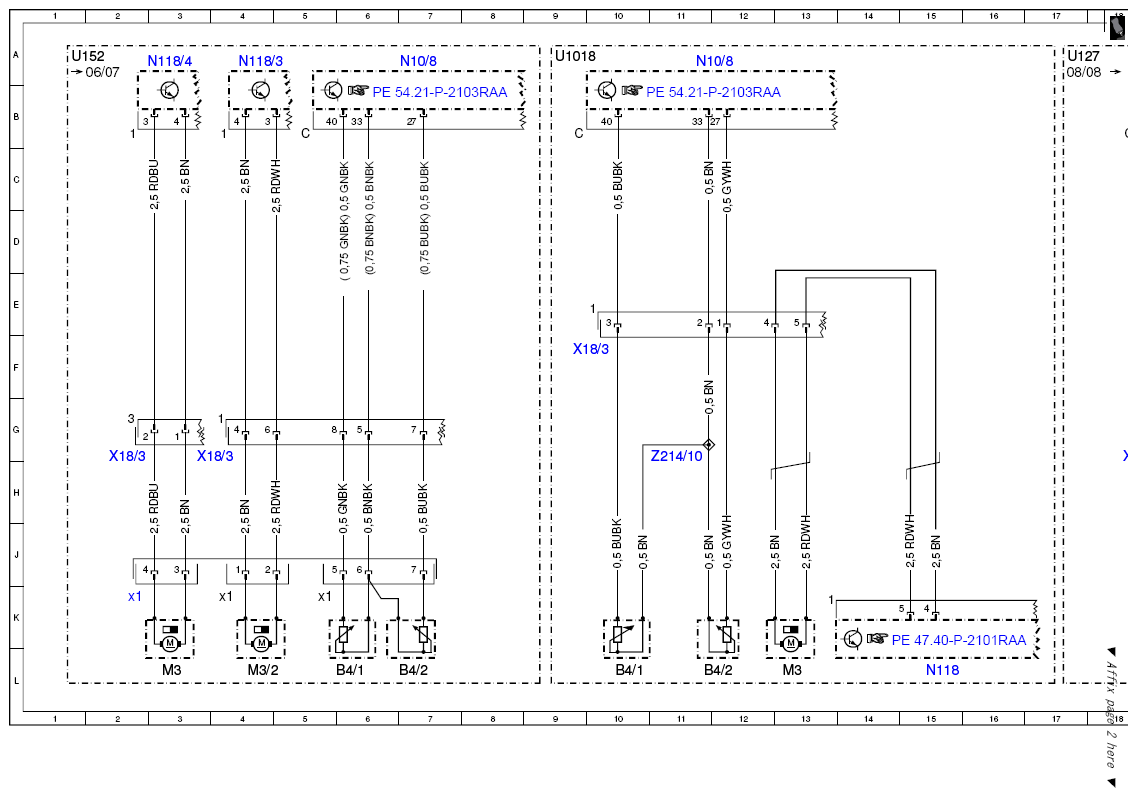

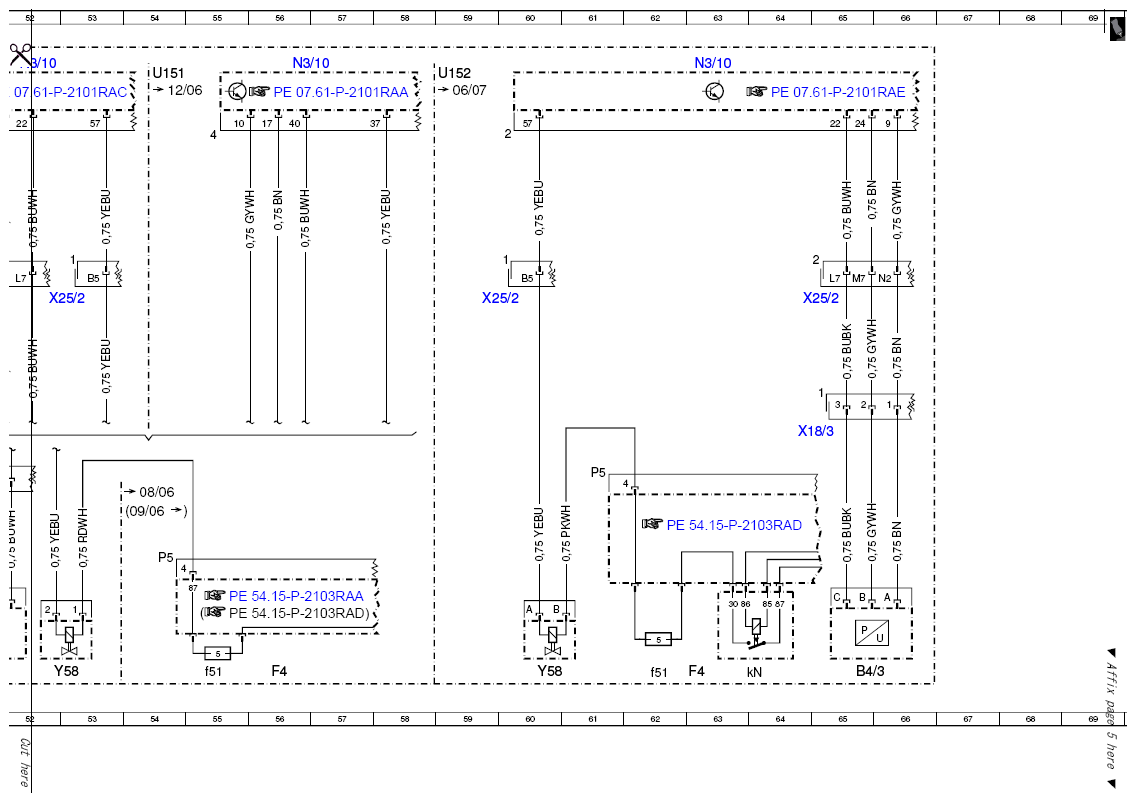

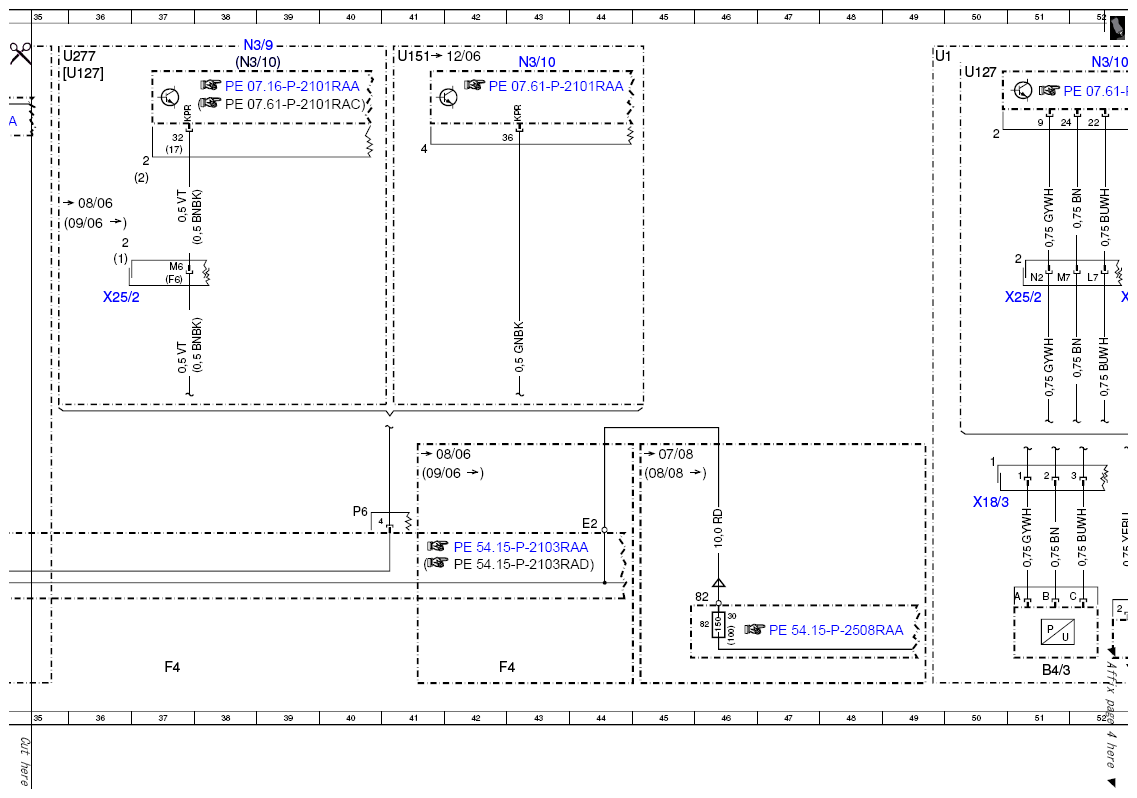

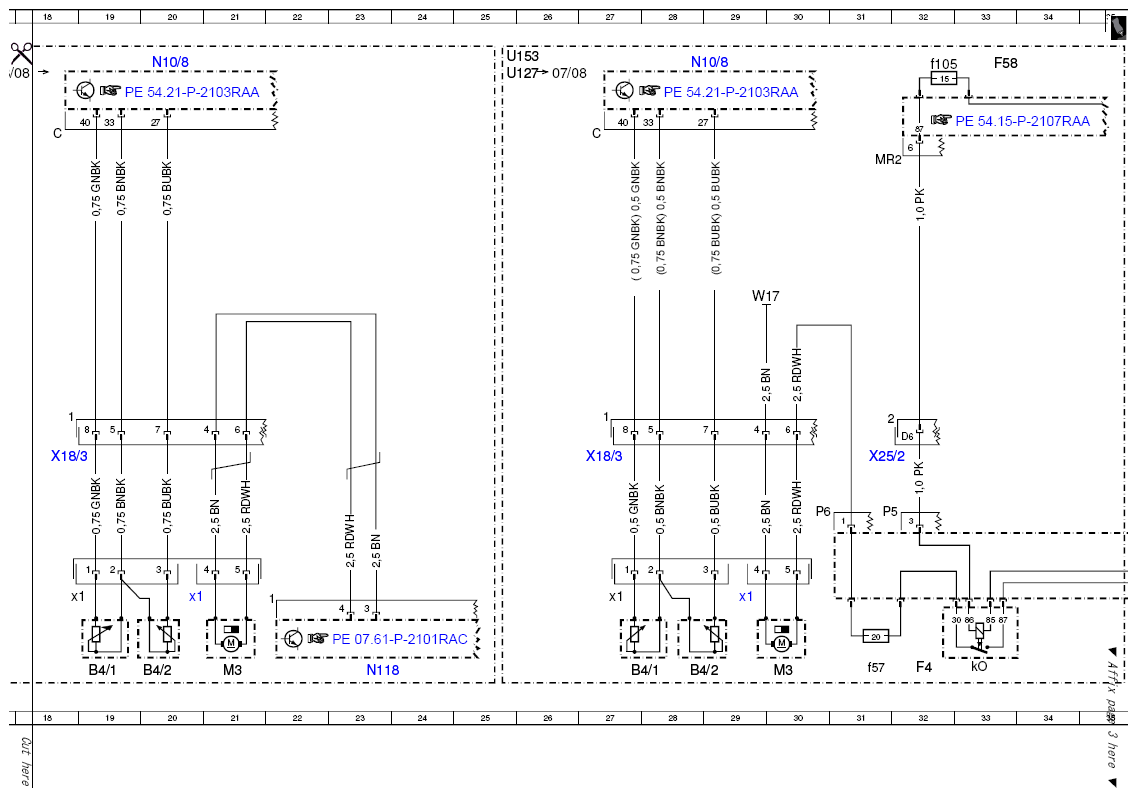

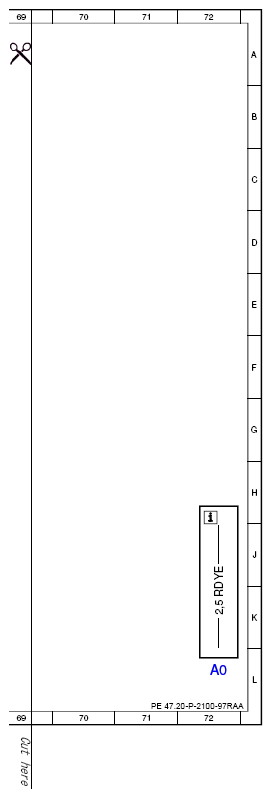

| A0 |
Color code key |
72L |
| B4/1 |
Left fuel level sensor |
6L |
| B4/1 |
Left fuel level sensor |
27L |
| B4/1 |
Left fuel level sensor |
19L |
| B4/1 |
Left fuel level sensor |
10L |
| B4/1x1 |
Left tank half fuel level sensor connector |
5K |
| B4/1x1 |
Left tank half fuel level sensor connector |
27K |
| B4/1x1 |
Left tank half fuel level sensor connector |
18K |
| B4/2 |
Right fuel level sensor |
7L |
| B4/2 |
Right fuel level sensor |
28L |
| B4/2 |
Right fuel level sensor |
20L |
| B4/2 |
Right fuel level sensor |
11L |
| B4/3 |
Fuel tank pressure sensor |
51L |
| B4/3 |
Fuel tank pressure sensor |
65L |
| F33f82 |
Fuse 82 |
46K |
| F4 |
Load compartment fuse and relay box |
32L |
| F4 |
Load compartment fuse and relay box |
37L |
| F4 |
Load compartment fuse and relay box |
42L |
| F4 |
Load compartment fuse and relay box |
56L |
| F4 |
Load compartment fuse and relay box |
63L |
| F4f51 |
Fuse 51 |
55L |
| F4f51 |
Fuse 51 |
62L |
| F4f57 |
Fuse 57 |
31L |
| F4kN |
Circuit 15 (1)/spare 1 relay (changeover contact) |
64L |
| F4kO |
Fuel pump relay |
33L |
| F58 |
Engine compartment fuse and relay box |
33A |
| F58f105 |
Fuse 105 |
32A |
| M3 |
Fuel pump (FP) |
30L |
| M3 |
Fuel pump (FP) |
3L |
| M3 |
Fuel pump (FP) |
21L |
| M3 |
Fuel pump (FP) |
13L |
| M3/2 |
Left fuel pump |
4L |
| M3/2x1 |
Left fuel pump connector |
4K |
| M3x1 |
Fuel pump connector |
2K |
| M3x1 |
Fuel pump connector |
29K |
| M3x1 |
Fuel pump connector |
20K |
| N10/8 |
Rear SAM control unit |
7A |
| N10/8 |
Rear SAM control unit |
28A |
| N10/8 |
Rear SAM control unit |
20A |
| N10/8 |
Rear SAM control unit |
11A |
| N118 |
Fuel pump control unit |
23L |
| N118 |
Fuel pump control unit |
15L |
| N118/3 |
Left fuel pump control unit |
4A |
| N118/4 |
Right fuel pump control unit |
3A |
| N3/10 |
ME-SFI [ME] control unit |
43A |
| N3/10 |
ME-SFI [ME] control unit |
38A |
| N3/10 |
ME-SFI [ME] control unit |
52A |
| N3/10 |
ME-SFI [ME] control unit |
56A |
| N3/10 |
ME-SFI [ME] control unit |
63A |
| N3/9 |
CDI control unit |
38A |
| U1 |
Valid for {{USA}} |
49A |
| U1018 |
Valid for gasoline engine 276 |
9A |
| U127 |
Valid for engine 272, engine 273 KE |
50A |
| U127 |
Valid for engine 272, engine 273 KE |
25A |
| U127 |
Valid for engine 272, engine 273 KE |
17A |
| U127 |
Valid for engine 272, engine 273 KE |
35A |
| U151 |
Valid for engine 113 |
54A |
| U151 |
Valid for engine 113 |
41A |
| U152 |
Valid for engine 156 |
1A |
| U152 |
Valid for engine 156 |
59A |
| U153 |
Valid for all except engine 156 |
25A |
| U277 |
Valid for engine 642.9 |
35A |
| X18/3 |
Interior/fuel tank connector |
2H |
| X18/3 |
Interior/fuel tank connector |
4H |
| X18/3 |
Interior/fuel tank connector |
27H |
| X18/3 |
Interior/fuel tank connector |
50H |
| X18/3 |
Interior/fuel tank connector |
65G |
| X18/3 |
Interior/fuel tank connector |
18H |
| X18/3 |
Interior/fuel tank connector |
10F |
| X25/2 |
Engine compartment/interior compartment connector |
31H |
| X25/2 |
Engine compartment/interior compartment connector |
36E |
| X25/2 |
Engine compartment/interior compartment connector |
51E |
| X25/2 |
Engine compartment/interior compartment connector |
53E |
| X25/2 |
Engine compartment/interior compartment connector |
60E |
| X25/2 |
Engine compartment/interior compartment connector |
65E |
| Y58 |
Activated charcoal filter shutoff valve |
53L |
| Y58 |
Activated charcoal filter shutoff valve |
60L |
| Z214/10 |
Fuel level sensor ground line connector sleeve |
11G |
