| A0 |
Color code key |
32L |
| A2 |
Radio |
16L |
| A2 |
Radio |
16L |
| A2/56 |
Radio and navigation unit |
17L |
| A2/56 |
Radio and navigation unit |
17L |
| A40/3 |
COMAND operating, display and control unit |
13L |
| A40/3 |
COMAND operating, display and control unit |
18L |
| A40/3 |
COMAND operating, display and control unit |
18L |
| A90/1 |
TV combination tuner (analog/digital) |
21L |

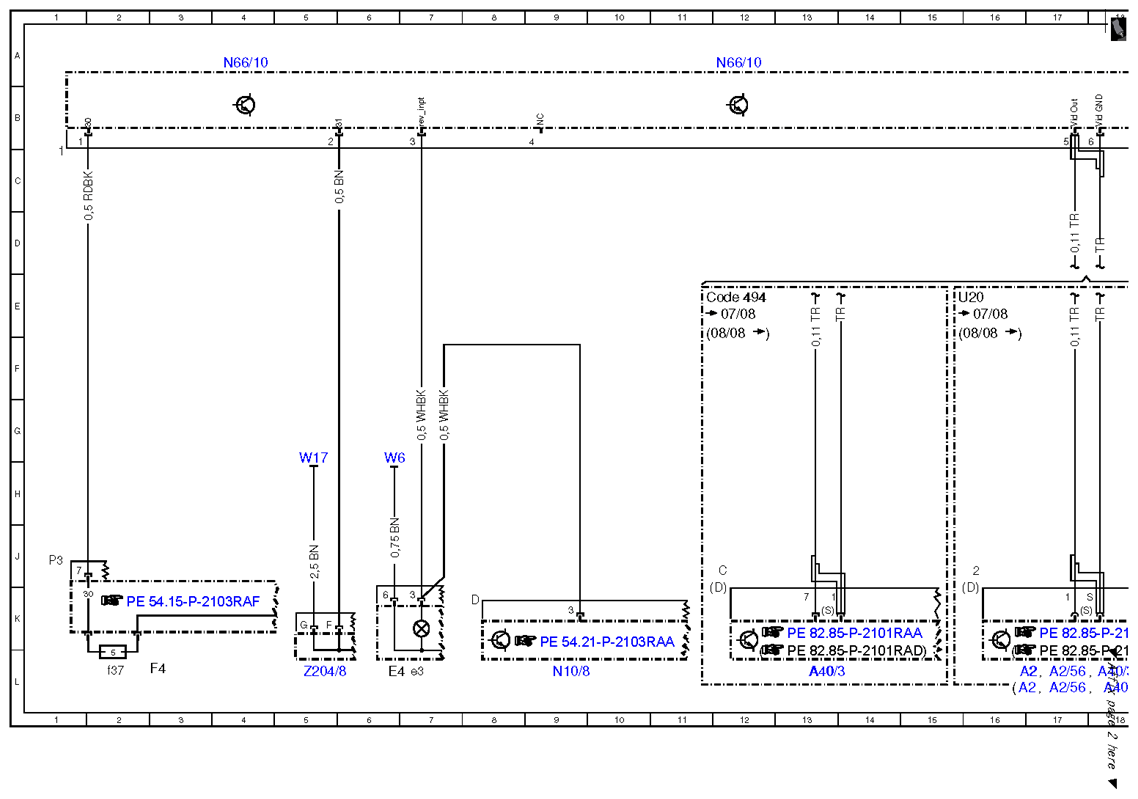

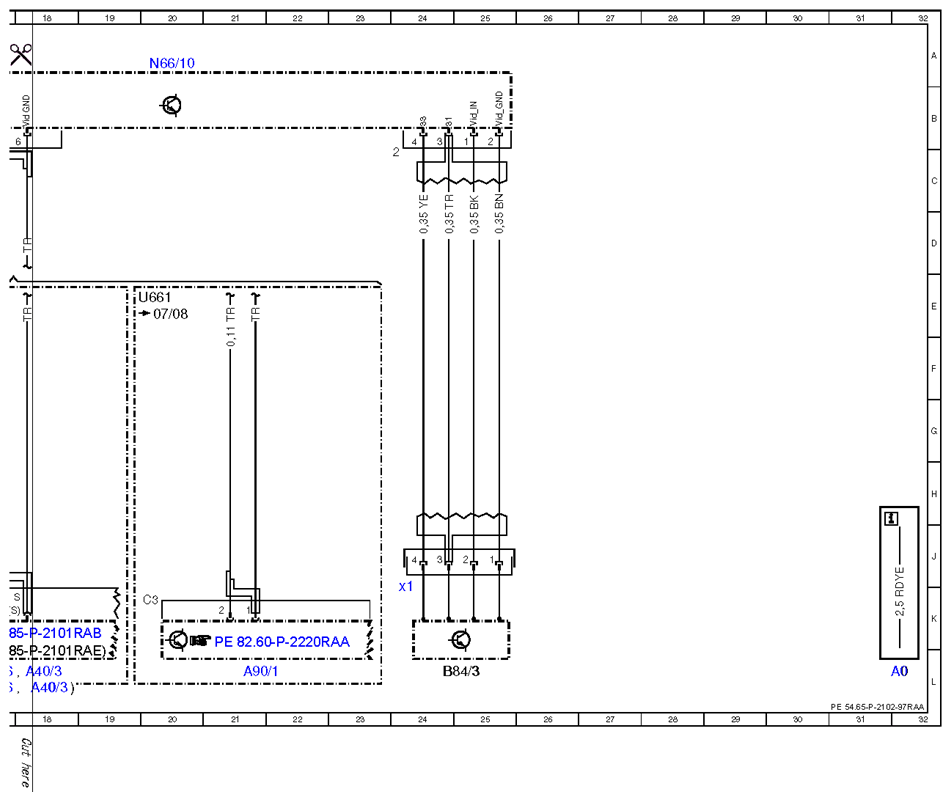

| B84/3 |
Backup camera |
24L |
| B84/3x1 |
Backup camera connector |
24K |
| Code 494 |
USA version |
11E |
| E4 |
Right taillamp |
6L |
| E4e3 |
Right backup lamp |
6L |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f37 |
Fuse 37 |
2L |
| N10/8 |
Rear SAM control unit |
9L |
| N66/10 |
Backup camera voltage supply module |
4A |
| N66/10 |
Backup camera voltage supply module |
12A |
| N66/10 |
Backup camera voltage supply module |
20A |
| U20 |
Valid for all (except USA and Japan) |
15E |
| U661 |
Valid for TV and video in rear |
19E |
| W17 |
Ground (right rear seat) |
5H |
| W6 |
Ground (left wheelhouse in luggage compartment) |
6H |
| Z204/8 |
Circuit 31 left rear seat voltage distributor connector (2) |
5L |
