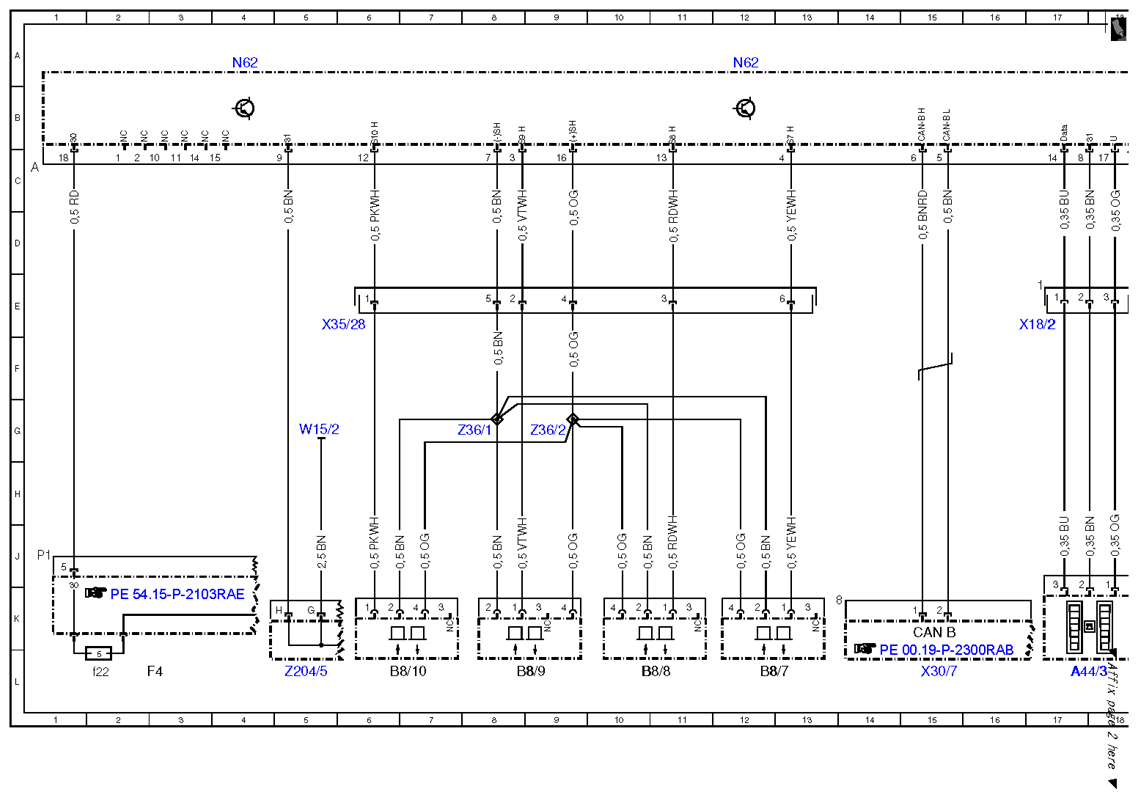

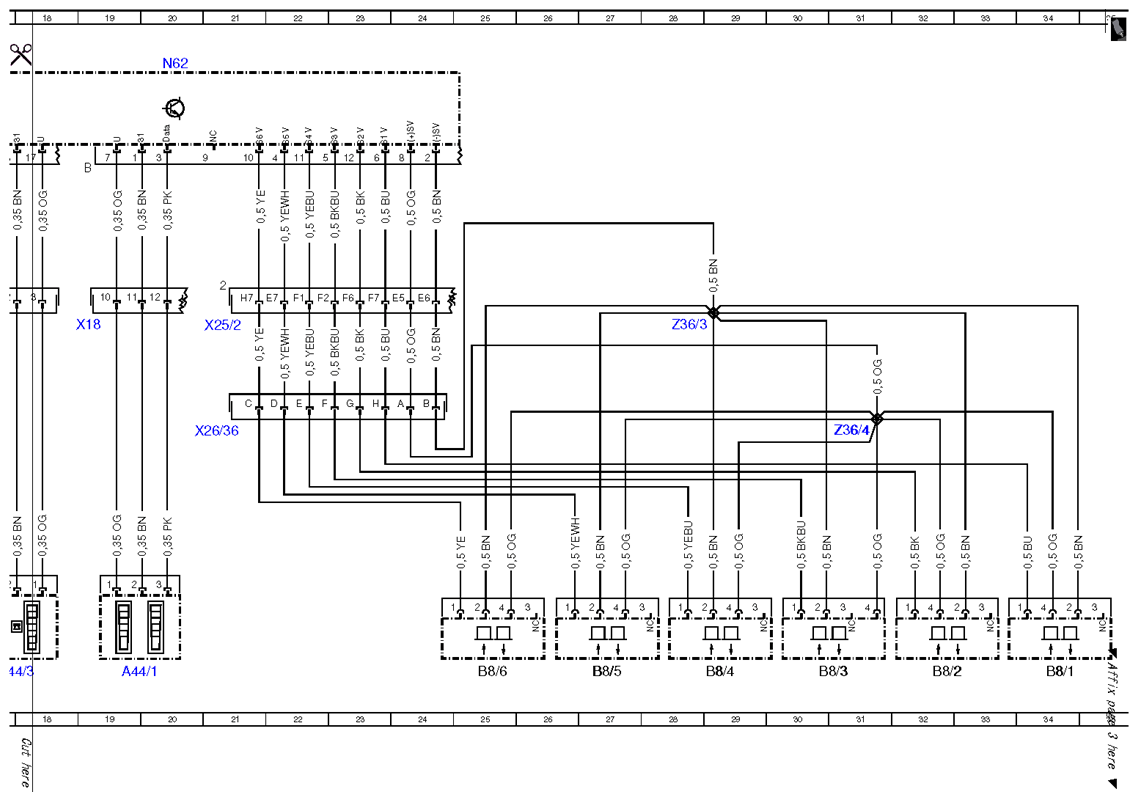

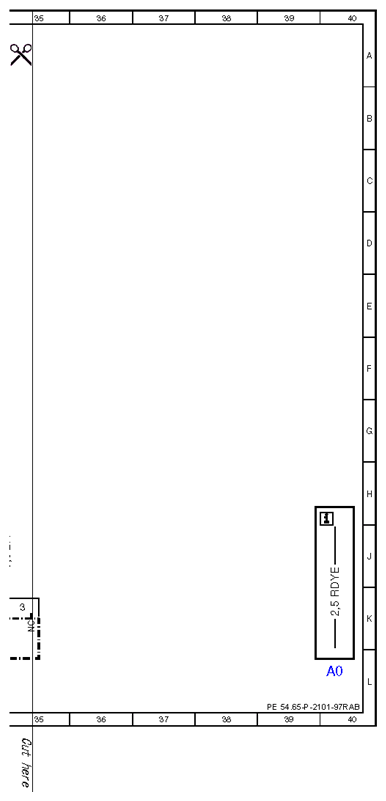

| A0 |
Color code key |
40L |
| A44/1 |
PTS warning indicator, driver side instrument panel |
19L |
| A44/3 |
Rear PTS warning indicator dome lamp |
17L |
| B8/1 |
Outer left front PTS ultrasonic sensor |
34L |
| B8/10 |
Outer left rear PTS ultrasonic sensor |
7L |
| B8/2 |
Center left front PTS ultrasonic sensor |
32L |
| B8/3 |
Inner left front PTS ultrasonic sensor |
30L |
| B8/4 |
Inner right front PTS ultrasonic sensor |
29L |
| B8/5 |
Center right front PTS ultrasonic sensor |
27L |
| B8/6 |
Outer right front PTS ultrasonic sensor |
25L |
| B8/7 |
Outer right rear PTS ultrasonic sensor |
12L |
| B8/8 |
Inner right rear PTS ultrasonic sensor |
10L |
| B8/9 |
Inner left rear PTS ultrasonic sensor |
8L |
| CAN B |
Interior CAN |
15K |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f22 |
Fuse 22 |
2L |
| N62 |
PTS control unit |
4A |
| N62 |
PTS control unit |
12A |
| N62 |
PTS control unit |
20A |
| W15/2 |
Ground (left footwell) |
5G |
| X18 |
Interior/cockpit connector |
19E |
| X18/2 |
Interior/roof connector |
17E |
| X25/2 |
Engine compartment/interior compartment connector |
21E |
| X26/36 |
Right front engine compartment/bumper connector |
21G |
| X30/7 |
Voltage distributor (CAN) connector |
15L |
| X35/28 |
PTS, rear bumper connector |
6E |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
5L |
| Z36/1 |
Rear PTS sensor ground connector sleeve |
8G |
| Z36/2 |
Rear PTS sensor voltage supply connector sleeve |
9G |
| Z36/3 |
Front PTS sensor ground connector sleeve |
28E |
| Z36/4 |
Front PTS sensor voltage supply connector sleeve |
31G |
